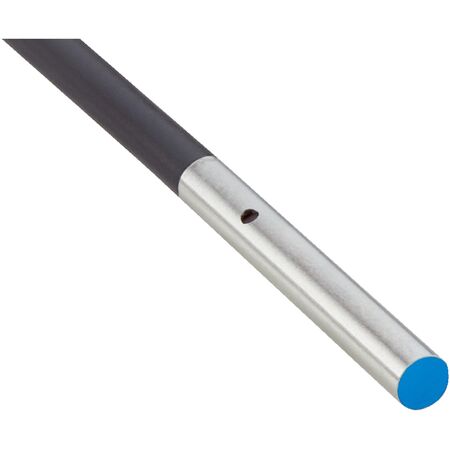

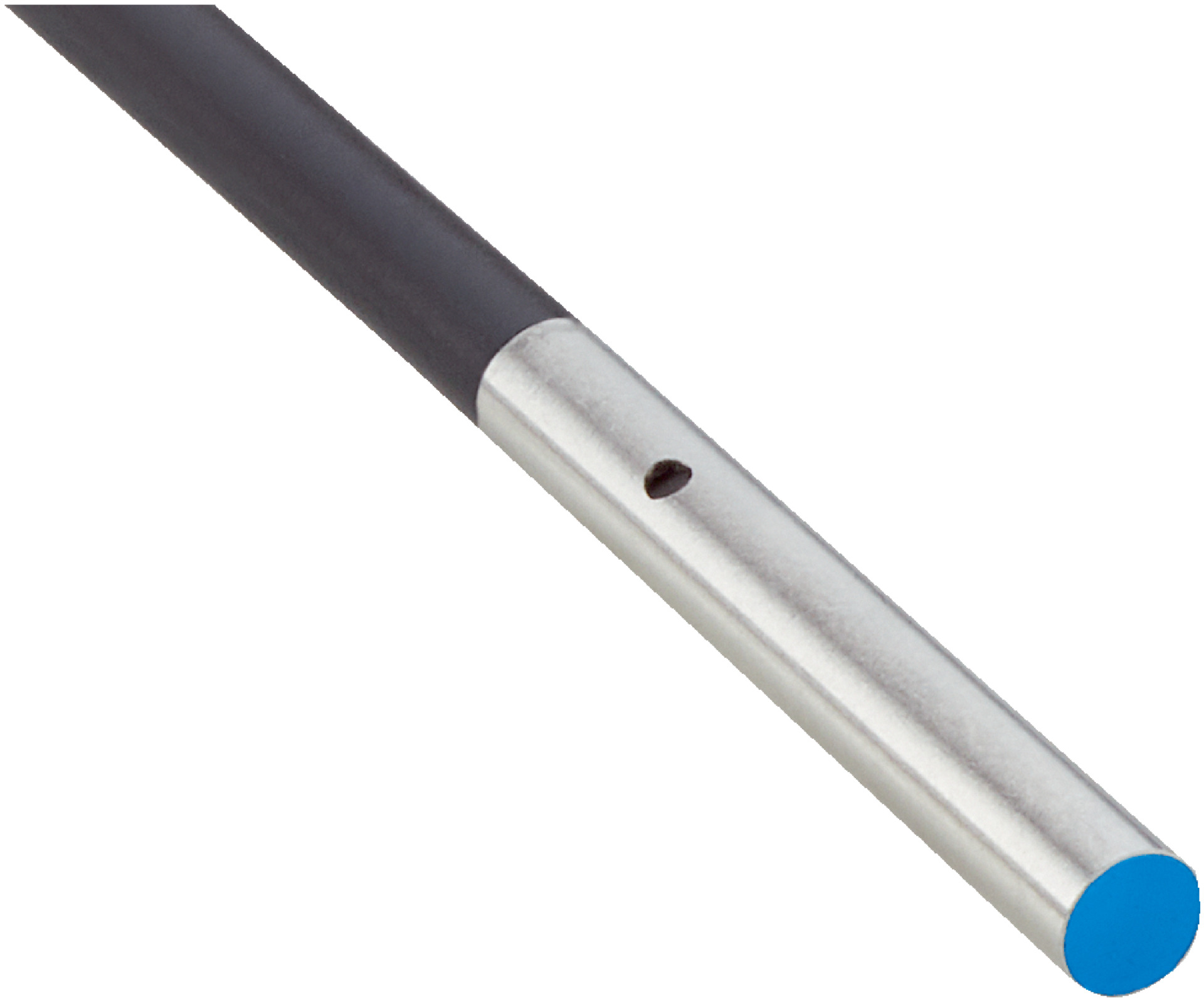

Inductive Proximity Sensor | Stainless Steel Housing | 1.5mm Sensing Range | IP67 Rated | by SICK
The Inductive Proximity Sensor is designed for industrial automation, featuring a durable stainless steel housing and a sensing range of 1.5 mm. With a high switching frequency of 4,400 Hz and an IP67 rating for dust and water protection, this sensor is perfect for metal detection and position sensing in machinery, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching output: PNP, Normally Open (NO)
- Switching frequency: 4,400 Hz
- Sensing range (Sn): 1.5 mm
- Safe sensing range (Sa): 1.215 mm
- Electrical wiring: DC 3-wire with 2 m PUR cable
- Enclosure rating: IP67
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2.5%
- Temperature drift of sensing range: ≤ 10%
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 10.4 ms
- Process data length: 1 Byte
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Dimensions (H x L x W): 3mm x 22mm x 3mm
- Weight: 0.1 kg
Key Features
- Standard design housing with stainless steel V2A material
- 3 mm diameter sensing face with quasi-flush installation
- Sensing range of 1.5 mm and safe sensing range of 1.215 mm
- High switching frequency of 4,400 Hz with PNP NO output
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator and IO-Link communication interface
- Triple sensing range capability
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Operating temperature range from -10 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and IO-Link communication standards to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Metal detection in manufacturing processes
- Position sensing in machinery
- Safety and control systems requiring reliable sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with efficient DC 3-wire electrical wiring
- IO-Link interface enables smart communication reducing unnecessary replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IHM03-1B5PSVU2S inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
