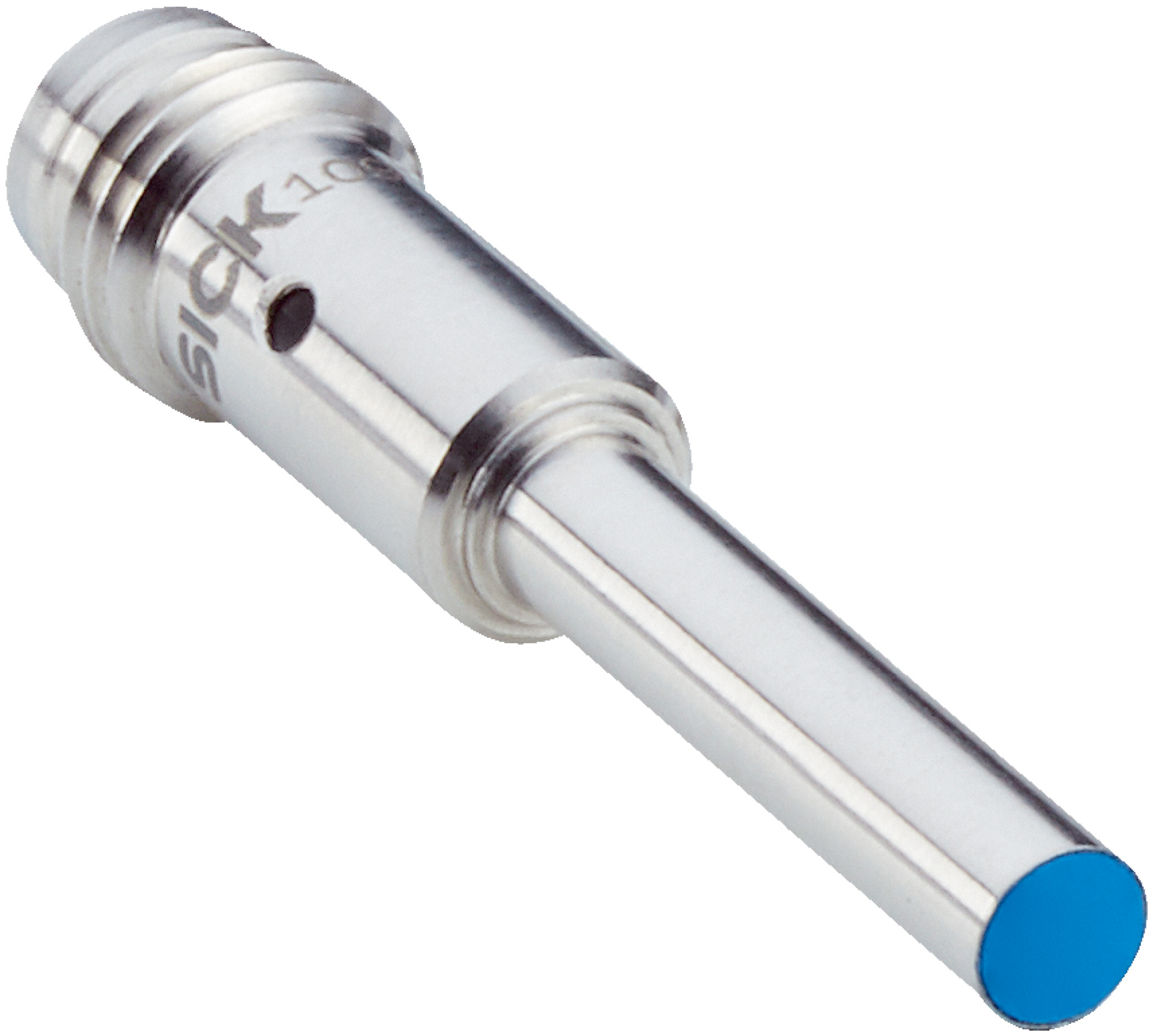

Inductive Proximity Sensor | Stainless Steel V2A | 1.5mm Sensing Range | IP67 Rated | by SICK
The Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a durable stainless steel V2A housing and a sensing range of 1.5 mm. With a high switching frequency of 4,800 Hz and an IP67 rating for dust and water protection, this sensor is perfect for machine safety and control systems, ensuring high performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Standard design, stainless steel V2A (DIN 1.4305 / AISI 303)
- Diameter: Ø 4 mm
- Sensing range Sn: 1.5 mm
- Safe sensing range Sa: 1.215 mm
- Installation type: Flush
- Switching frequency: 4,800 Hz
- Connection type: Connector M8, 3-pin
- Switching output: NPN, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift (of Sr): ≤ 10%
- EMC: EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +70 °C
- Sensing face material: Plastic, LCP
- Housing length: 38 mm
- Dimensions (H x L x W): 4mm x 38mm x 4mm
- Weight: 0.1 kg
Key Features
- Standard design housing with stainless steel V2A material
- Flush installation type with Ø 4 mm diameter
- Sensing range of 1.5 mm with safe sensing range of 1.215 mm
- High switching frequency of 4,800 Hz
- NPN switching output with NO output function
- Connector M8, 3-pin connection type
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator for easy setup
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from –25 °C to +70 °C
- Complies with EMC standard EN 60947-5-2
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Position sensing in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient operation with low voltage DC 3-wire electrical wiring
- High reliability reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

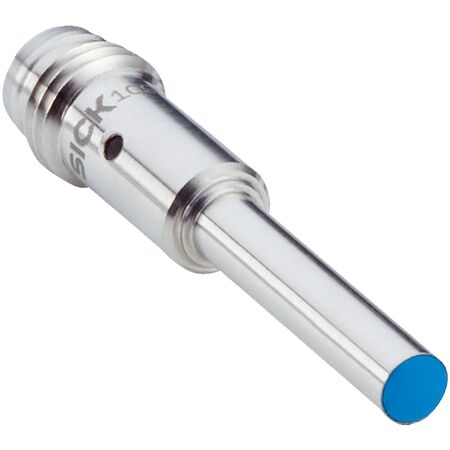

The SICK IHM04-1B5NSVT0S Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
