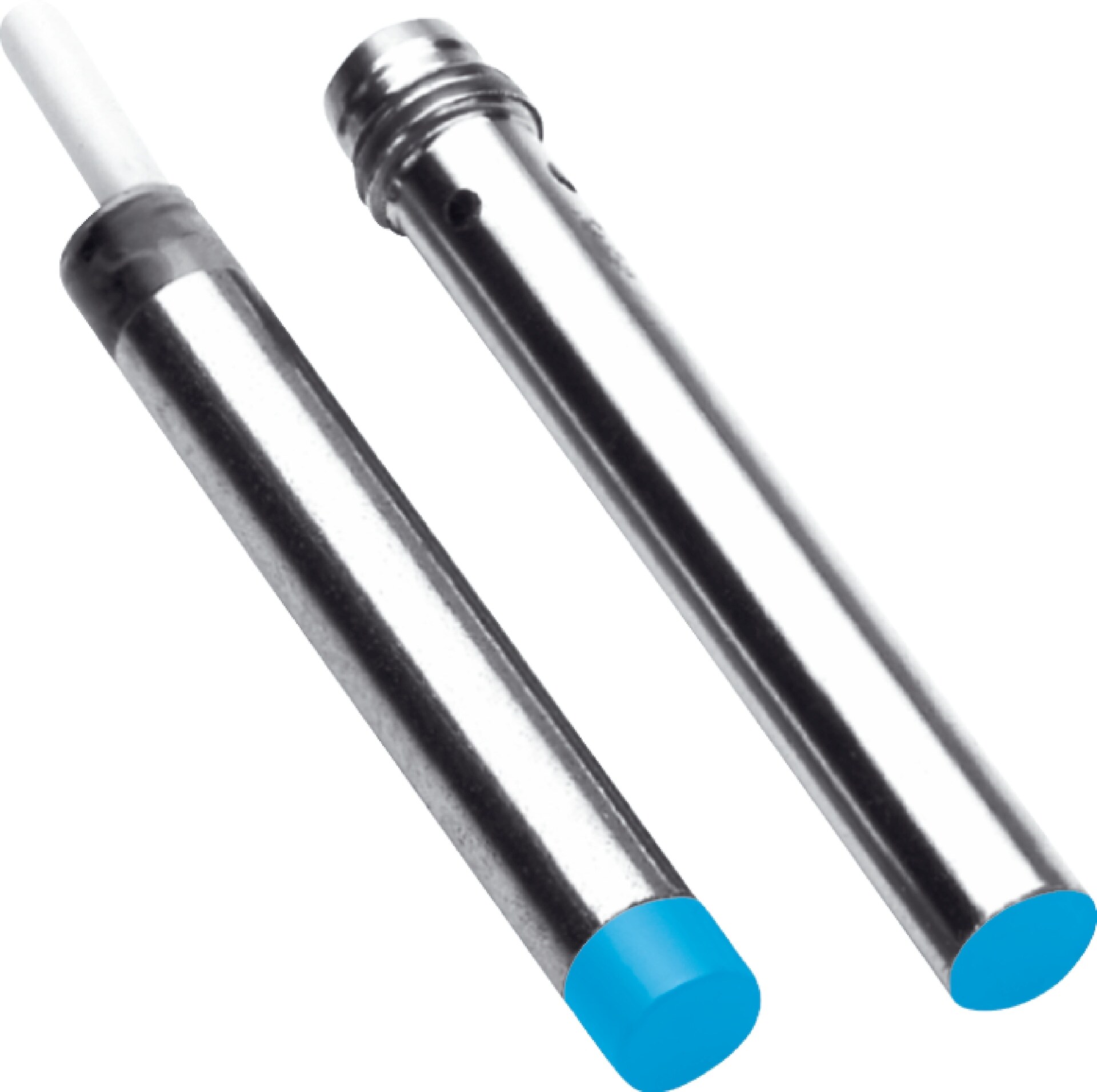

Inductive Proximity Sensor | Stainless Steel V2A | 2mm Sensing Range | 5000Hz Switching Frequency | by SICK
The Inductive Proximity Sensor is designed for precision in industrial automation, featuring a robust stainless steel V2A housing and a sensing range of 2 mm. With a high switching frequency of 5,000 Hz and an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for metal detection and position sensing in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Standard design, stainless steel V2A (DIN 1.4305 / AISI 303)
- Diameter: Ø 6.5 mm
- Sensing range Sn: 2 mm
- Safe sensing range Sa: 1.62 mm
- Installation type: Quasi-flush
- Switching frequency: 5,000 Hz
- Connection type: Cable, 3-wire, 2 m PVC
- Switching output: NPN, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 5%
- Temperature drift: ± 10%
- EMC: EN 60947-5-2, IEC 61000-4-2 (Test level 2), IEC 61000-4-4 (Test level 3)
- Continuous current Ia: ≤ 200 mA
- Cable diameter: Ø 3.1 mm
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +70 °C
- Sensing face material: Plastic, POM
- Housing length: 45 mm
- Dimensions (H x L x W): 6.5mm x 45mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Standard design housing with stainless steel V2A material
- Sensing range of 2 mm with quasi-flush installation
- High switching frequency of 5,000 Hz
- NPN normally open (NO) switching output
- IP67 rated enclosure for dust and water protection
- Wide supply voltage range from 10 V DC to 30 V DC
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Cable connection type with 3-wire, 2 m PVC cable
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor integration to ensure proper function and safety.
Applications
- Industrial automation for object detection
- Metal detection in manufacturing processes
- Position sensing in machinery
- Safety and control systems in production lines
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient operation with low power consumption
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IH06-02BNS-VW1 Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
