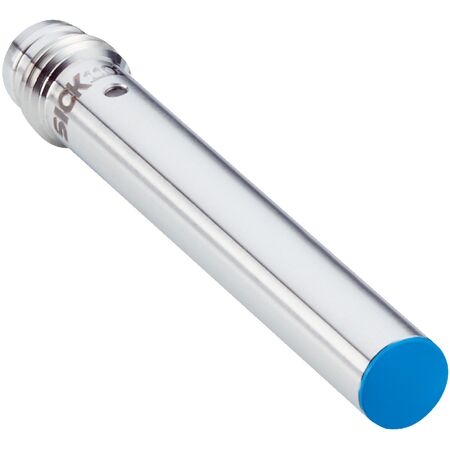

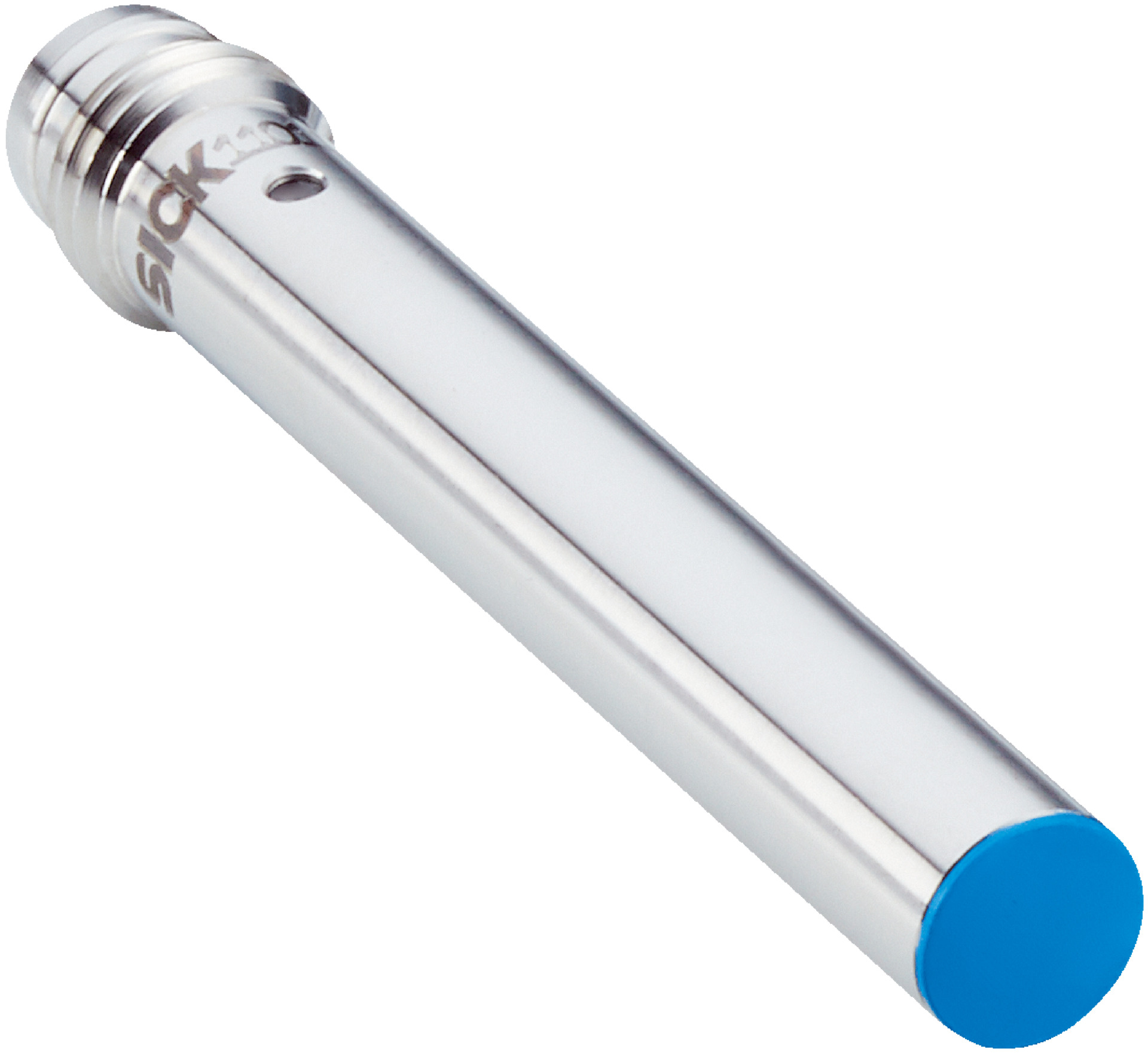

Inductive Proximity Sensor | Stainless Steel V2A | 2mm Sensing Range | IP67 Rated | by SICK
Inductive proximity sensor designed for industrial automation, featuring a durable stainless steel V2A housing and a sensing range of 2 mm. With a high switching frequency of 5,000 Hz and an IP67 rating for dust and water protection, this sensor is perfect for object detection and position sensing in machinery, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing Material: Stainless steel V2A, DIN 1.4305 / AISI 303
- Sensing Range Sn: 2 mm
- Safe Sensing Range Sa: 1.62 mm
- Diameter: 6.5 mm
- Installation Type: Flush
- Switching Frequency: 5,000 Hz
- Connection Type: Connector M8, 3-pin
- Switching Output: NPN, Normally Open (NO)
- Electrical Wiring: DC 3-wire
- Supply Voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage Drop: ≤ 2 V
- Time Delay Before Availability: ≤ 50 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature Drift (of Sr): ≤ 10%
- Continuous Current Ia: ≤ 200 mA
- Short-circuit Protection: Yes
- Power-up Pulse Protection: Yes
- Shock and Vibration Resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient Operating Temperature: -25 °C to +70 °C
- Enclosure Rating: IP67
- Visual Adjustment Indicator: Yes
- Dimensions (H x L x W): 6.5mm x 50mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Standard design housing with stainless steel V2A material
- Flush installation type with 6.5 mm diameter sensing face
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- High switching frequency of 5,000 Hz
- NPN normally open switching output with DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator for easy setup
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor installation to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Metal detection in manufacturing processes
- Position sensing in machinery
- Safety and control systems in production lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient operation minimizes power consumption
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IHM06-02BNSVT0S inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
