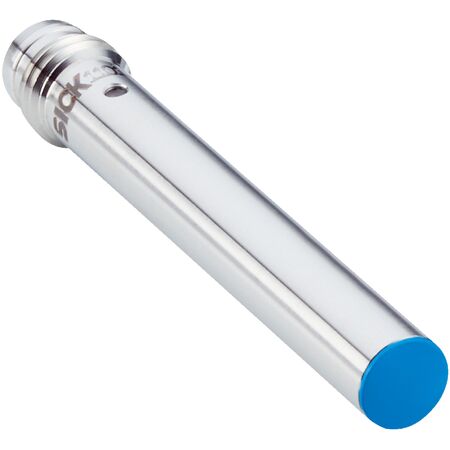

Inductive Proximity Sensor | Stainless Steel V2A | 2mm Sensing Range | IP67 Rated | by SICK
The Inductive Proximity Sensor is designed for precise metal object detection in industrial automation. With a durable stainless steel V2A housing and a sensing range of 2 mm, it ensures reliable performance in harsh environments. Ideal for machine safety and control systems, this sensor features a high switching frequency of 5,000 Hz and an IP67 rating for dust and water protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Stainless steel V2A, DIN 1.4305 / AISI 303
- Diameter: 6.5 mm
- Sensing range Sn: 2 mm
- Safe sensing range Sa: 1.62 mm
- Installation type: Flush
- Switching frequency: 5,000 Hz
- Connection type: Connector M8, 3-pin
- Switching output: PNP, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift (of Sr): ≤ 10%
- EMC: EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +70 °C
- Sensing face material: Plastic, LCP
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 10.4 ms
- Process data length: 1 Byte
- Process data structure: Bit 0 = Sr reached, Bit 1 = Sa reached
- Dimensions (H x L x W): 6.5mm x 50mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Standard design housing with stainless steel V2A material
- Flush installation type with 6.5 mm diameter sensing face
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- High switching frequency of 5,000 Hz with PNP normally open output
- Connector M8, 3-pin connection type
- Visual adjustment indicator and IO-Link communication interface
- IP67 rated enclosure for dust and water protection
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper flush mounting and electrical connection according to safety standards.
Applications
- Industrial automation for metal object detection
- Machine safety and control systems
- Factory automation requiring precise sensing
- Harsh environments needing IP67 rated sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low voltage DC 3-wire electrical wiring
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IHM06-02BPSVT0S inductive sensor is available for immediate purchase, ideal for industrial automation and safety applications requiring reliable metal object detection.
