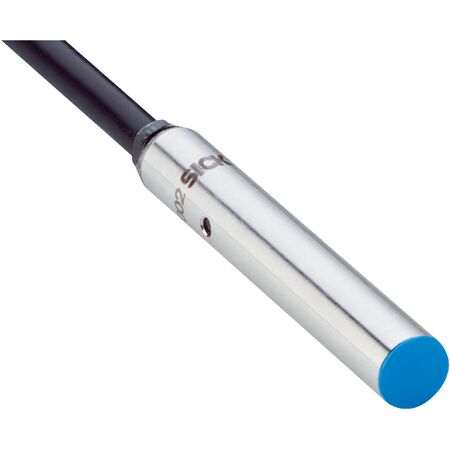

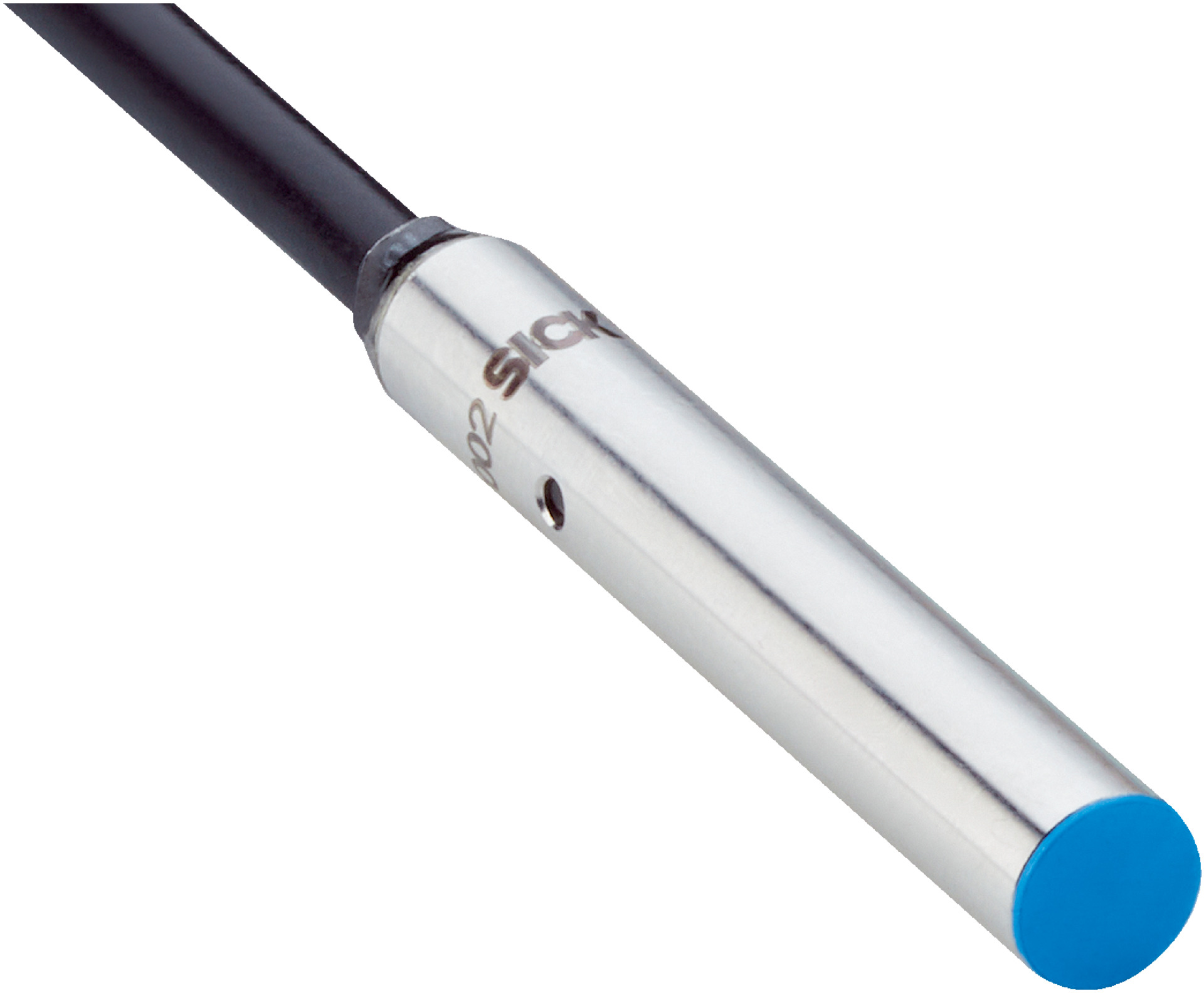

Inductive Proximity Sensor | Stainless Steel V2A | 2mm Sensing Range | 5000 Hz Switching Frequency | IP67 Rated | by SICK
Inductive Proximity Sensor designed for industrial automation, featuring a durable stainless steel V2A housing and a 2mm sensing range. With a high switching frequency of 5,000 Hz and an IP67 rating for dust and water protection, this sensor is perfect for machine safety and control systems, ensuring reliable object detection in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Standard design, stainless steel V2A (DIN 1.4305 / AISI 303)
- Diameter: 6.5 mm
- Sensing range Sn: 2 mm
- Safe sensing range Sa: 1.62 mm
- Installation type: Flush
- Switching frequency: 5,000 Hz
- Connection type: Cable, 3-wire, 2 m length
- Switching output: PNP, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- EMC standard: EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Cable material: PUR
- Conductor size: 0.25 mm²
- Cable diameter: 3.7 mm
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +70 °C
- Sensing face material: Plastic, LCP
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 10.4 ms
- Process data length: 1 Byte
- Process data structure: Bit 0 = Sr reached, Bit 1 = Sa reached
- Dimensions (H x L x W): 6.5mm x 42.3mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Standard design housing with stainless steel V2A material
- Flush installation type with 2 mm sensing range
- High switching frequency of 5,000 Hz
- PNP switching output with normally open function
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator and IO-Link communication interface
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and automation equipment to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Position sensing in manufacturing processes
- Robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient operation minimizes power consumption
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IHM06-02BPSVU2S Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications requiring reliable object detection.
