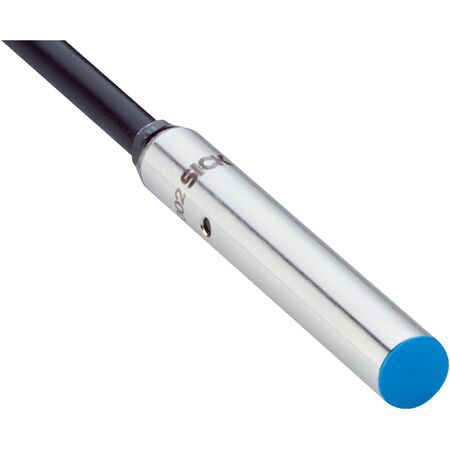

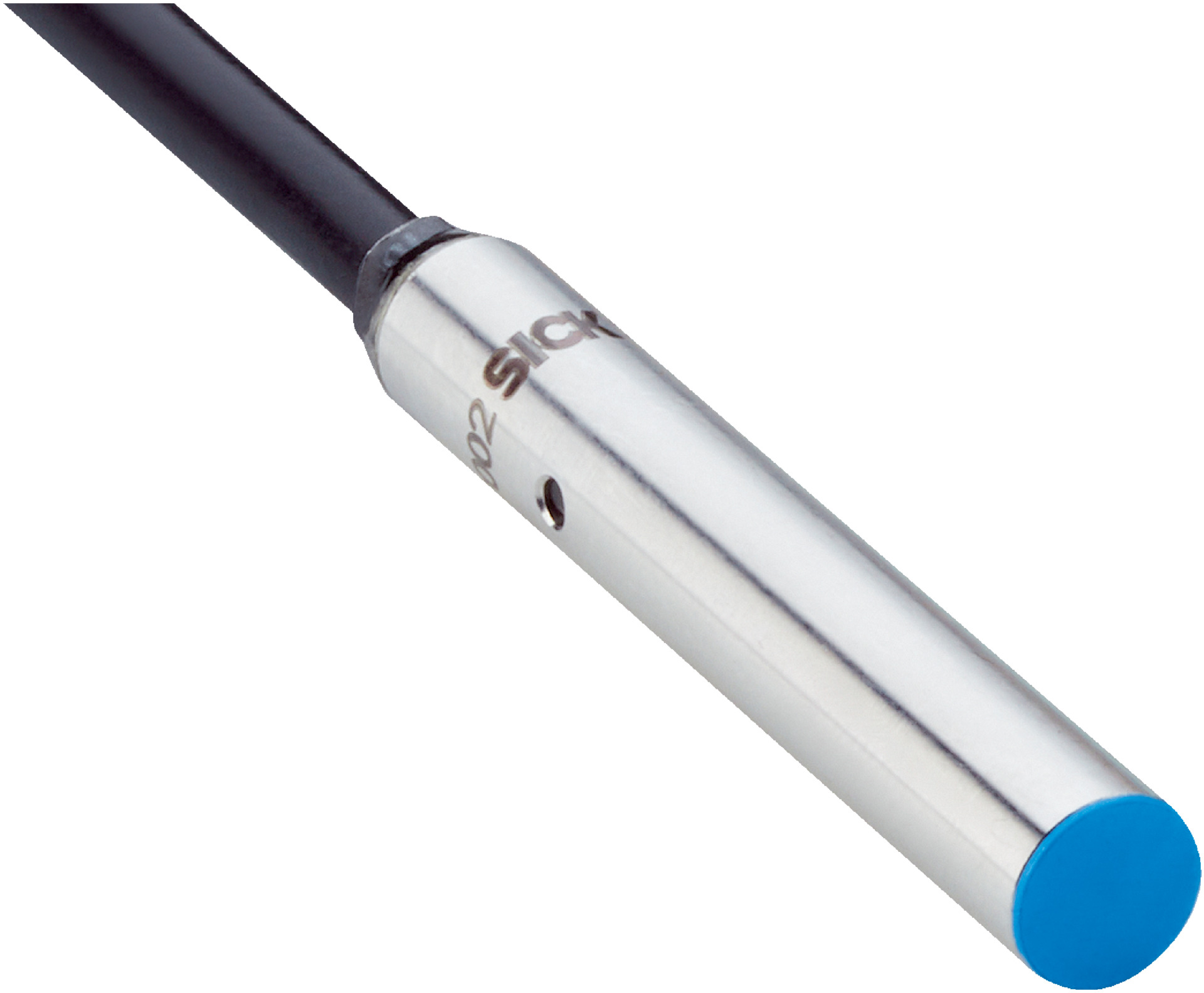

Inductive Proximity Sensor | Stainless Steel V2A | 2mm Sensing Range | 5000 Hz Switching Frequency | by SICK
The Inductive Proximity Sensor is designed for precision in industrial automation, featuring a durable stainless steel V2A housing and a sensing range of 2 mm. With a high switching frequency of 5,000 Hz and an IP67 rating for dust and water protection, this sensor is perfect for metal object detection in factory assembly lines and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Standard design, stainless steel V2A (DIN 1.4305 / AISI 303)
- Diameter: 6.5 mm
- Sensing range Sn: 2 mm
- Safe sensing range Sa: 1.62 mm
- Installation type: Flush
- Switching frequency: 5,000 Hz
- Connection type: Cable, 3-wire, 2 m
- Switching output: PNP, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift: ≤ 10%
- Continuous current Ia: ≤ 200 mA
- Cable material: PVC, diameter 3.7 mm
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +70 °C
- Sensing face material: Plastic, LCP
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 10.4 ms
- Process data length: 1 Byte
- Process data structure: Bit 0 = Sr reached, Bit 1 = Sa reached
- Dimensions (H x L x W): 6.5mm x 42.3mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Standard design housing with stainless steel V2A material
- Flush installation type with 2 mm sensing range
- High switching frequency of 5,000 Hz
- PNP switching output with normally open function
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator and IO-Link communication interface
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper flush mounting and electrical connections.
Applications
- Industrial automation for metal object detection
- Machine safety and control systems
- Factory assembly line sensing
- Robotics and process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- IO-Link interface enables predictive maintenance reducing downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IHM06-02BPSVW2S inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
