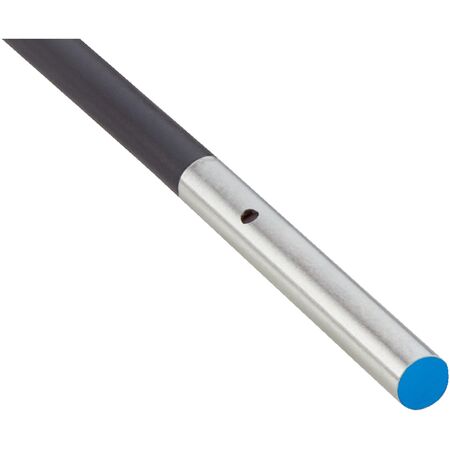

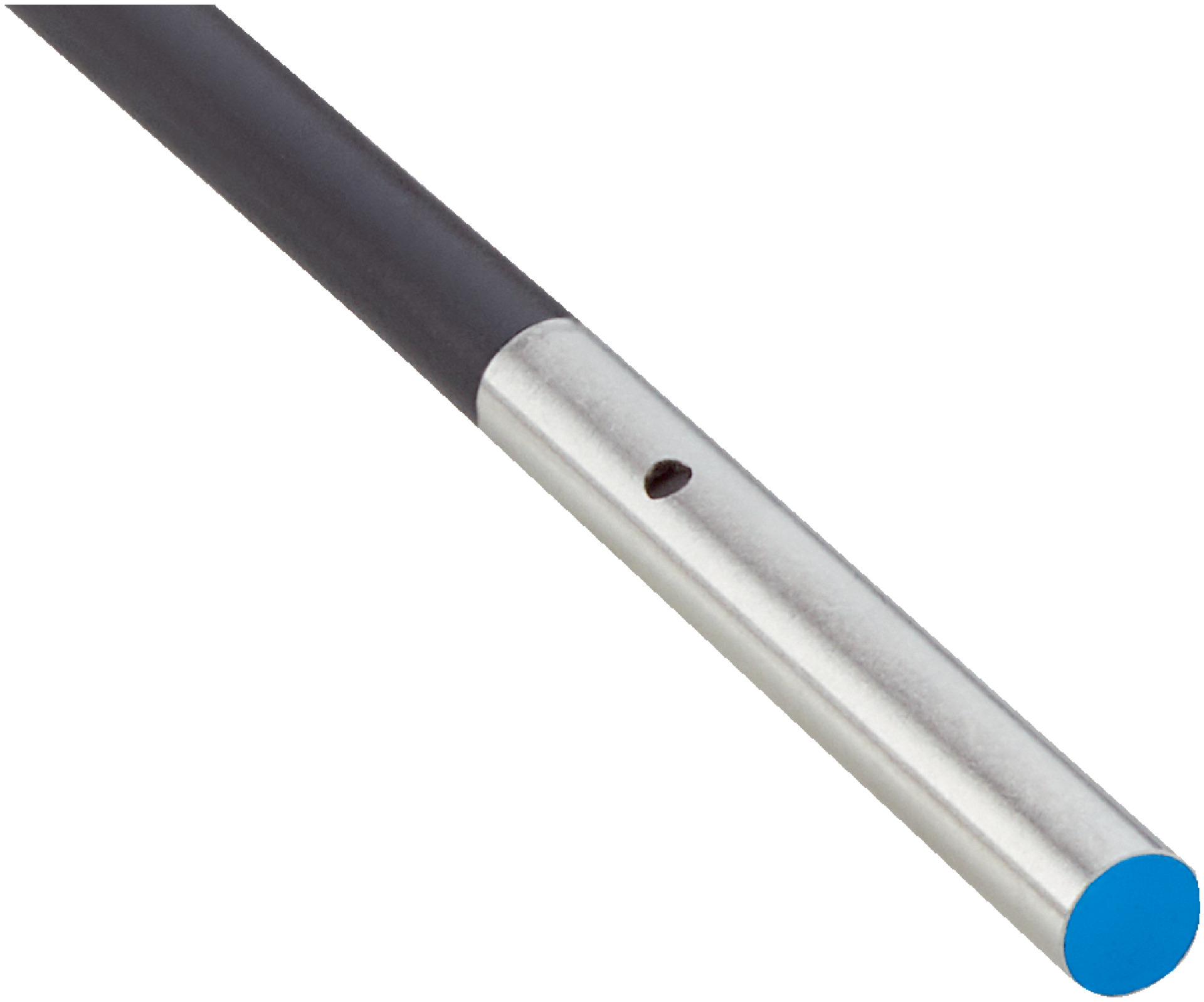

Inductive Proximity Sensor | Stainless Steel V2A | 4,200 Hz Switching Frequency | IP67 Rated | by SICK
The Inductive Proximity Sensor is designed for precision in industrial automation, featuring a robust stainless steel V2A housing and a high switching frequency of 4,200 Hz. Ideal for metal detection and position sensing in machinery, this sensor ensures reliable performance with an IP67 rating for dust and water protection, making it perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range Sn: 1 mm
- Safe sensing range Sa: 0.81 mm
- Switching frequency: 4,200 Hz
- Supply voltage: 10 V DC to 30 V DC
- Voltage drop: ≤ 2 V
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift: ≤ 10%
- Continuous current Ia: ≤ 100 mA
- Cable diameter: Ø 2.5 mm
- Cable length: 2 m
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Enclosure rating: IP67
- Electrical wiring: DC 3-wire
- Output function: Normally closed (NC)
- Switching output: PNP
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- EMC standard: EN 60947-5-2
- Dimensions (H x L x W): 3mm x 22mm x 3mm
- Weight: 0.1 kg
Key Features
- Standard design housing with stainless steel V2A material
- Flush installation type with 3 mm diameter sensing face
- High switching frequency of 4,200 Hz for fast response
- PNP switching output with NC output function
- Visual adjustment indicator for easy setup
- IP67 rated enclosure for dust and water protection
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from –25 °C to +70 °C
- Cable connection type: 3-wire, 2 m PUR cable
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper flush mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Metal detection in manufacturing processes
- Position sensing in machinery
- Safety and control systems requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient sensor operation minimizes power consumption
- Robust design reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IHM03-01BPOVU2S inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
