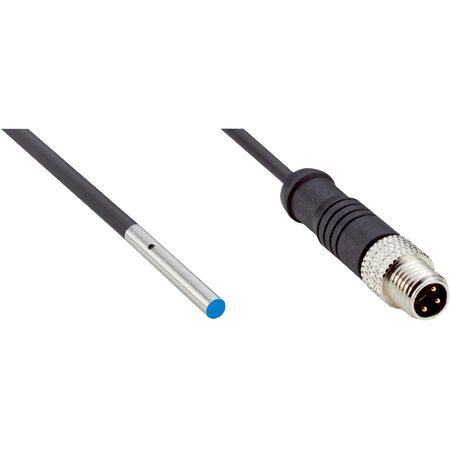

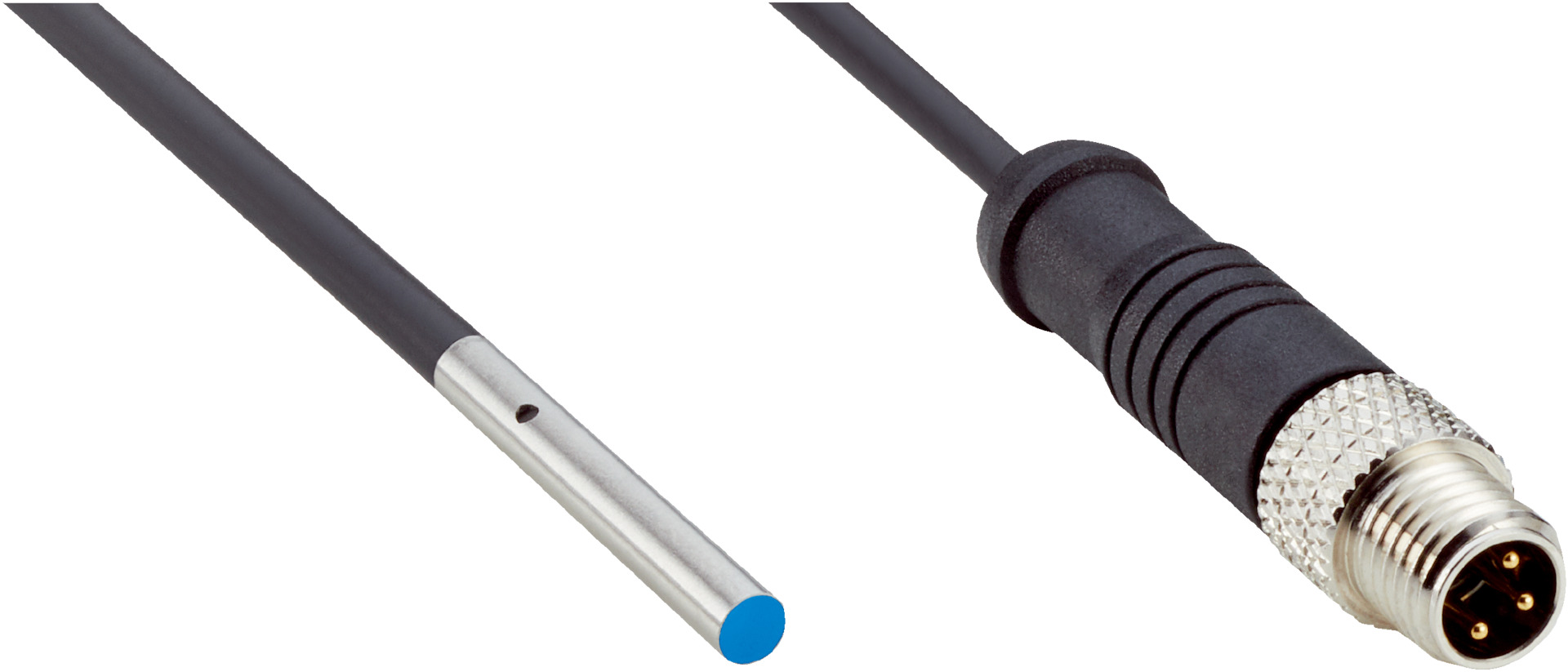

Inductive Proximity Sensor | Stainless Steel V2A | 4,200 Hz Switching Frequency | IP67 Rated | by SICK
The Inductive Proximity Sensor is designed for industrial automation, featuring a durable stainless steel V2A housing and a high switching frequency of 4,200 Hz. With a flush installation type and an IP67 rating for dust and water protection, it's perfect for precise object detection and position sensing in manufacturing lines and safety control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Standard design, stainless steel V2A (DIN 1.4305 / AISI 303)
- Diameter: 3 mm
- Sensing range Sn: 1 mm
- Safe sensing range Sa: 0.81 mm
- Installation type: Flush
- Switching frequency: 4,200 Hz
- Connection type: Cable with connector M8, 3-pin, 0.2 m
- Switching output: PNP, NC output function
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift (of Sr): ≤ 10%
- EMC: EN 60947-5-2
- Continuous current Ia: ≤ 100 mA
- Cable material: PUR
- Cable diameter: 2.5 mm
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +70 °C
- Sensing face material: Plastic, LCP
- Housing length: 22 mm
- Dimensions (H x L x W): 3mm x 22mm x 3mm
- Weight: 0.1 kg
Key Features
- Standard design housing with stainless steel V2A material
- Flush installation type with 3 mm diameter sensing face
- High switching frequency of 4,200 Hz
- PNP switching output with NC output function
- Visual adjustment indicator for easy setup
- IP67 rated enclosure for dust and water protection
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems requiring precise proximity sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with DC 3-wire electrical wiring
- Robust design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IHM03-01BPOVR8S Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety control applications.
