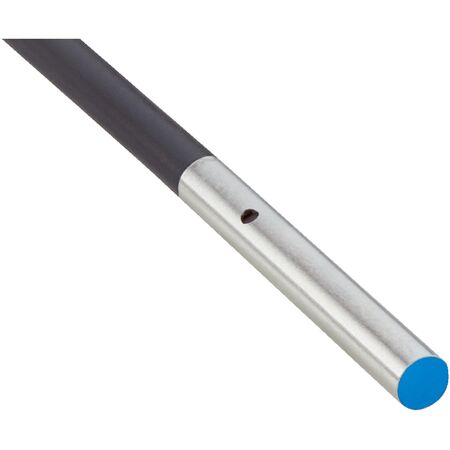

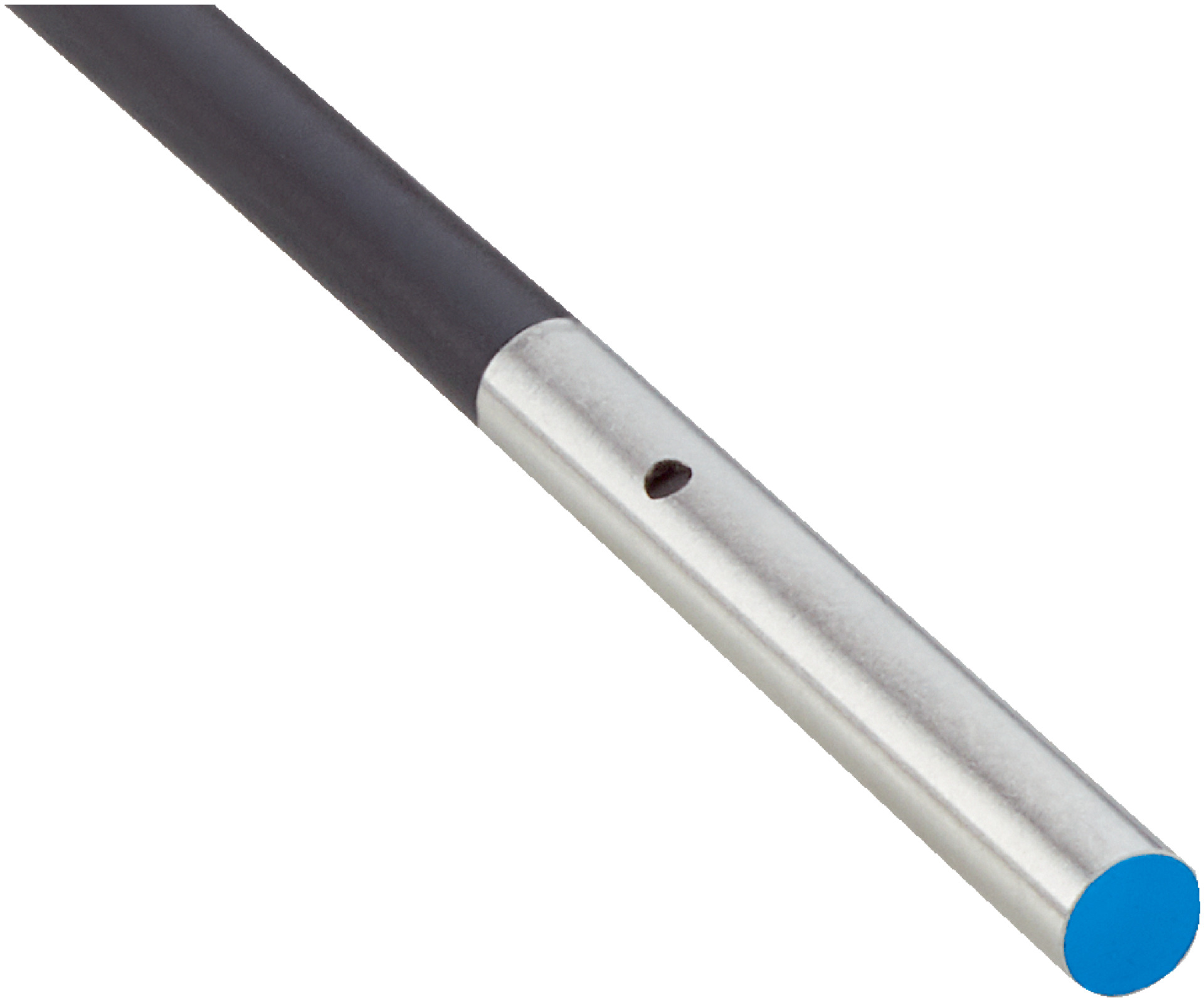

Inductive Proximity Sensor | Stainless Steel Housing | IP67 Rated | 4,400 Hz Switching Frequency | by SICK
The Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a stainless steel housing and an IP67 rating for dust and water protection. With a high switching frequency of 4,400 Hz and a sensing range of 1.5 mm, it's perfect for metal detection and position sensing in machinery, ensuring safety and efficiency in production lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 30 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2.5%
- Temperature drift of sensing range: ≤ 10%
- Continuous current Ia: ≤ 100 mA
- Cable material: PUR with 0.08 mm² conductor size and 2.5 mm diameter
- Switching output: NPN normally open
- Switching frequency: 4,400 Hz
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Housing material: Stainless steel V2A, DIN 1.4305 / AISI 303
- Sensing face material: Plastic, LCP
- Cable length: 2 m
- Dimensions (H x L x W): 3mm x 22mm x 3mm
- Weight: 0.1 kg
Key Features
- Standard design housing with stainless steel V2A material
- 3 mm diameter sensing face made of plastic LCP
- Sensing range of 1.5 mm with safe sensing range of 1.215 mm
- Quasi-flush installation type
- High switching frequency of 4,400 Hz
- NPN switching output with normally open function
- Cable connection type, 3-wire, 2 meters long
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator and triple sensing range
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide operating temperature range from -10 °C to +60 °C
- Complies with EMC standard EN 60947-5-2
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and mounting to ensure proper function and safety.
Applications
- Industrial automation for object detection
- Metal detection in manufacturing processes
- Position sensing in machinery
- Safety and control systems in production lines
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with efficient DC 3-wire electrical wiring
- Robust design minimizes replacement frequency and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IHM03-1B5NSVU2S inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
