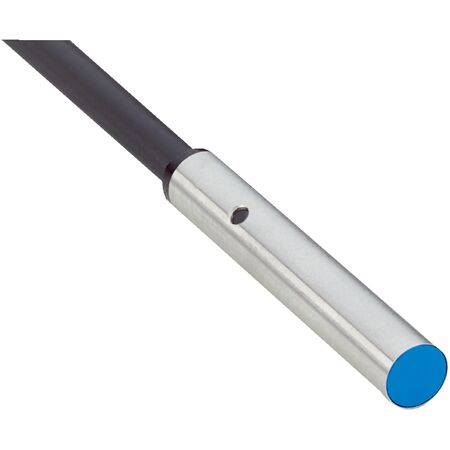

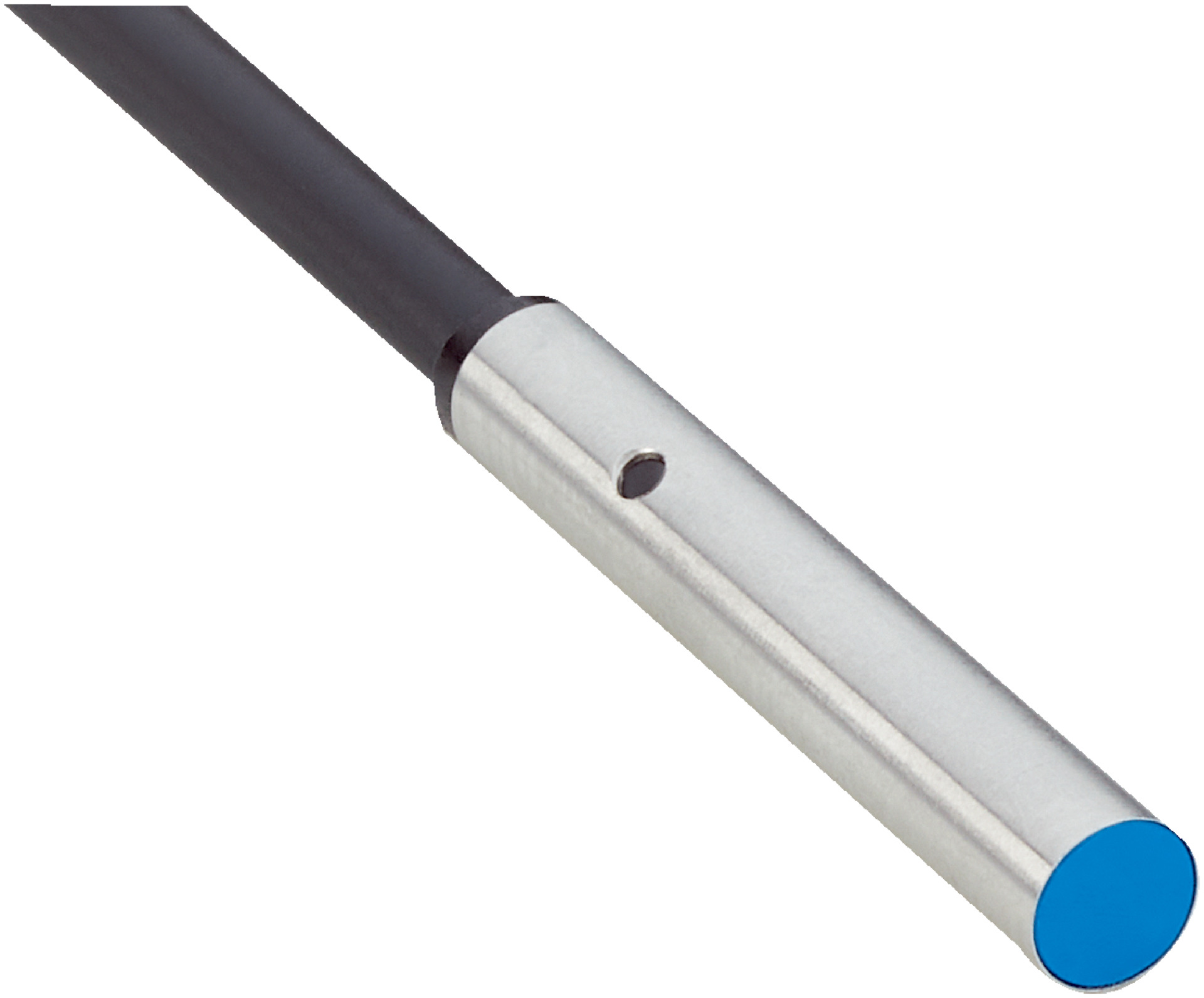

Inductive Proximity Sensor | Stainless Steel V2A | IP67 Rated | 4,800 Hz Switching Frequency | by SICK
The Inductive Proximity Sensor is designed for reliable metal object detection in industrial automation. With a robust stainless steel V2A housing and an IP67 rating, it withstands harsh environments while providing a high switching frequency of 4,800 Hz. Ideal for machine safety and control systems, this sensor ensures precise sensing and durability, making it a perfect choice for factory and process automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Switching frequency: 4,800 Hz
- Switching output: PNP, normally open
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Cable material: PUR, diameter 2.9 mm
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +70 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 10.4 ms
- Process data length: 1 Byte
- Process data structure: Bit 0 = Sr reached, Bit 1 = Sa reached
- Dimensions (H x L x W): 25mm x 25mm x 4mm
- Weight: 0.1 kg
Key Features
- Standard design housing with stainless steel V2A material
- Flush installation type with 4 mm diameter sensing face
- Sensing range of 1.5 mm and safe sensing range of 1.215 mm
- High switching frequency of 4,800 Hz with PNP normally open output
- Cable with M8 3-pin connector, 0.2 m length
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator and IO-Link communication interface
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper flush mounting and electrical connection according to safety standards.
Applications
- Industrial automation for metal object detection
- Machine safety and control systems
- Factory and process automation requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with efficient DC 3-wire electrical wiring
- IO-Link interface enables predictive maintenance reducing downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK IHM04-1B5PSVR8S inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
