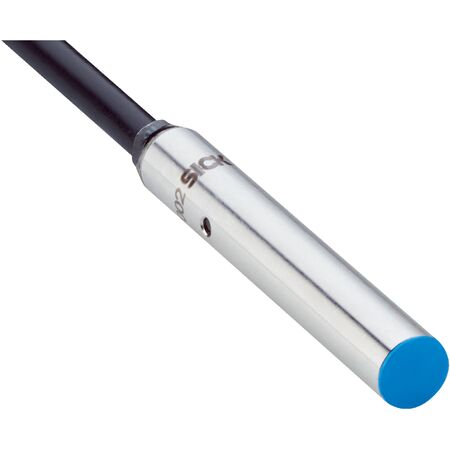

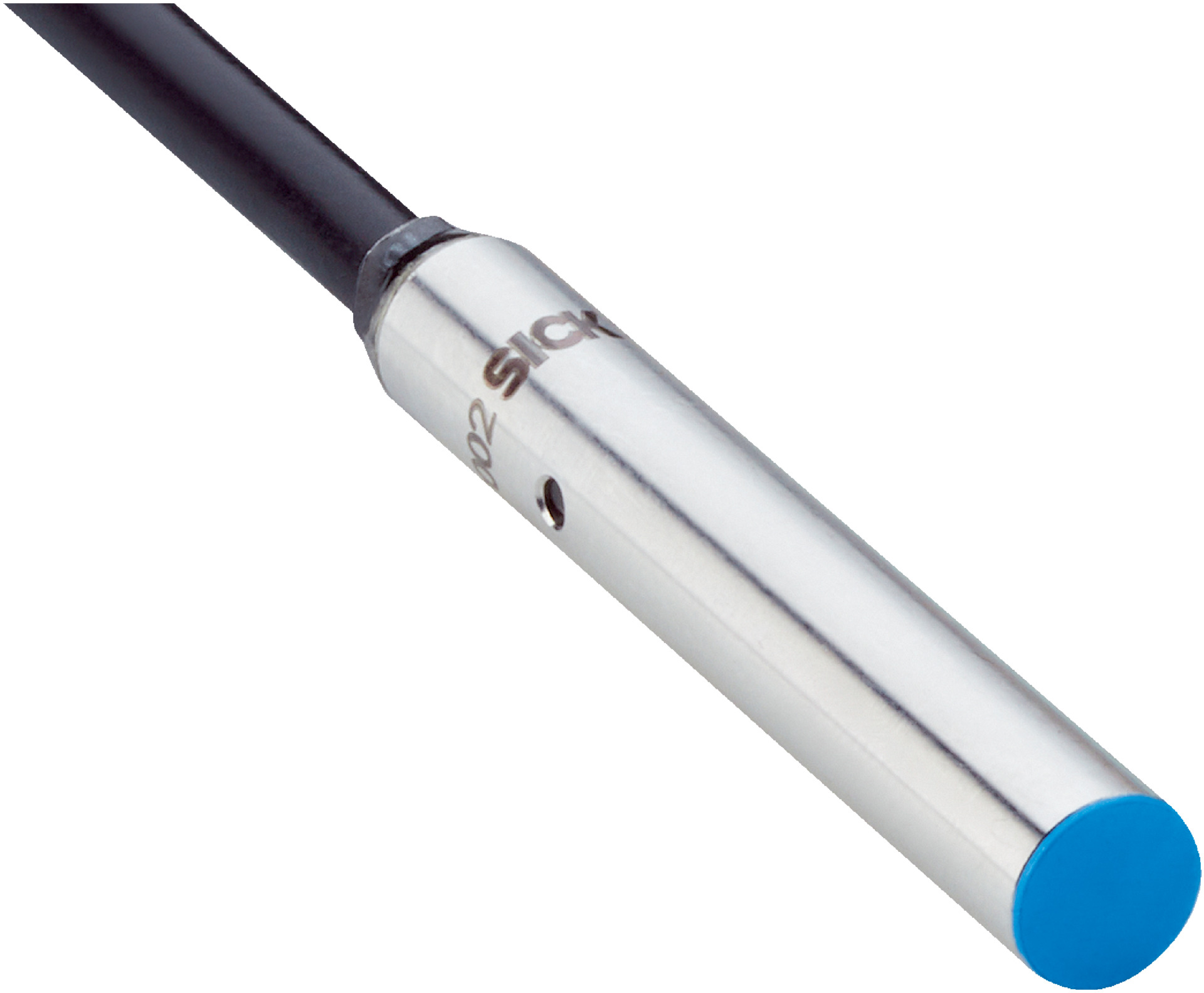

Inductive Proximity Sensor | Stainless Steel Housing | IP67 Rated | 5000 Hz Switching Frequency | by SICK
The Inductive Proximity Sensor is designed for industrial automation, featuring a durable stainless steel housing and an impressive 5000 Hz switching frequency. With an IP67 rating for dust and water protection, this sensor is perfect for precise object detection and position sensing in manufacturing lines, ensuring reliable performance in safety and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Standard design, stainless steel V2A (DIN 1.4305 / AISI 303)
- Diameter: 6.5 mm
- Sensing range Sn: 2 mm
- Safe sensing range Sa: 1.62 mm
- Installation type: Flush
- Switching frequency: 5,000 Hz
- Connection type: Cable, 3-wire, 2 m length
- Switching output: PNP, Normally Closed (NC)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- Continuous current Ia: ≤ 200 mA
- Cable material: PVC, diameter 3.7 mm
- Short-circuit and power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +70 °C
- Sensing face material: Plastic, LCP
- Housing length: 42.3 mm
- UL File No.: NRKH.E348498
- EMC: EN 60947-5-2
- Dimensions (H x L x W): 6.5mm x 42.3mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Standard design housing with stainless steel V2A material
- Flush installation type
- High switching frequency of 5,000 Hz
- Visual adjustment indicator for easy setup
- IP67 rated enclosure for dust and water protection
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor mounting to ensure proper function and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems requiring precise proximity sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with DC 3-wire electrical wiring
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IHM06-02BPOVW2S Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety control applications.
