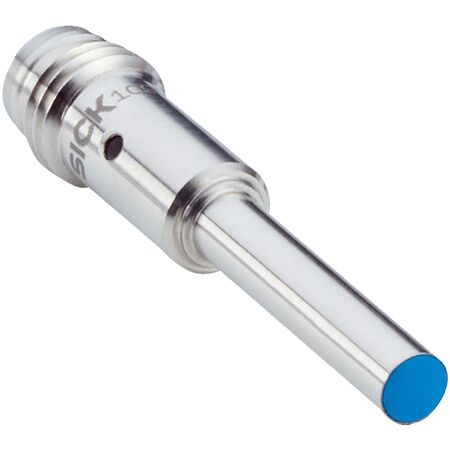

Inductive Proximity Sensor | Stainless Steel V2A Housing | IP67 Rated | 5,000 Hz Switching Frequency | by SICK
The Inductive Proximity Sensor IHM04-0B8NSVT0S features a durable stainless steel V2A housing and a high switching frequency of 5,000 Hz, making it perfect for industrial automation and metal detection applications. With an IP67 rating for dust and water protection, this sensor is designed for reliable performance in harsh environments, ensuring safety and efficiency in manufacturing lines and machine control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Standard stainless steel V2A, DIN 1.4305 / AISI 303
- Diameter: 4 mm
- Sensing range Sn: 0.8 mm
- Safe sensing range Sa: 0.648 mm
- Installation type: Flush
- Switching frequency: 5,000 Hz
- Connection type: Connector M8, 3-pin
- Switching output: NPN, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift (of Sr): ≤ 10%
- EMC: EN 60947-5-2 compliant
- Continuous current Ia: ≤ 200 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +70 °C
- Sensing face material: Plastic, LCP
- Housing length: 38 mm
- Dimensions (H x L x W): 8mm x 38mm x 8mm
- Weight: 0.1 kg
Key Features
- Flush installation type with stainless steel V2A housing
- High switching frequency of 5,000 Hz for fast response
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator for easy setup
- Short-circuit and power-up pulse protection included
- Wide supply voltage range from 10 V DC to 30 V DC
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for metal detection
- Position sensing in manufacturing lines
- Machine safety and control systems
- Robust sensing in harsh environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low voltage and current consumption
- Long service life minimizes environmental impact from manufacturing and disposal
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK IHM04-0B8NSVT0S inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
