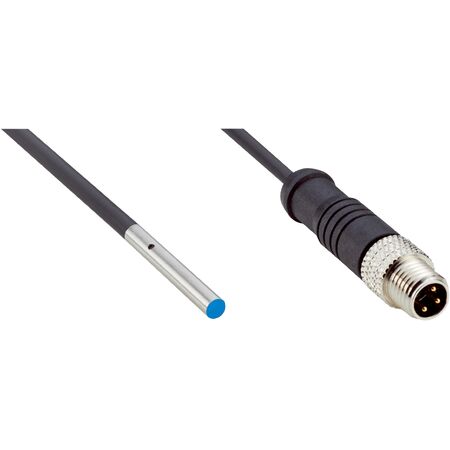

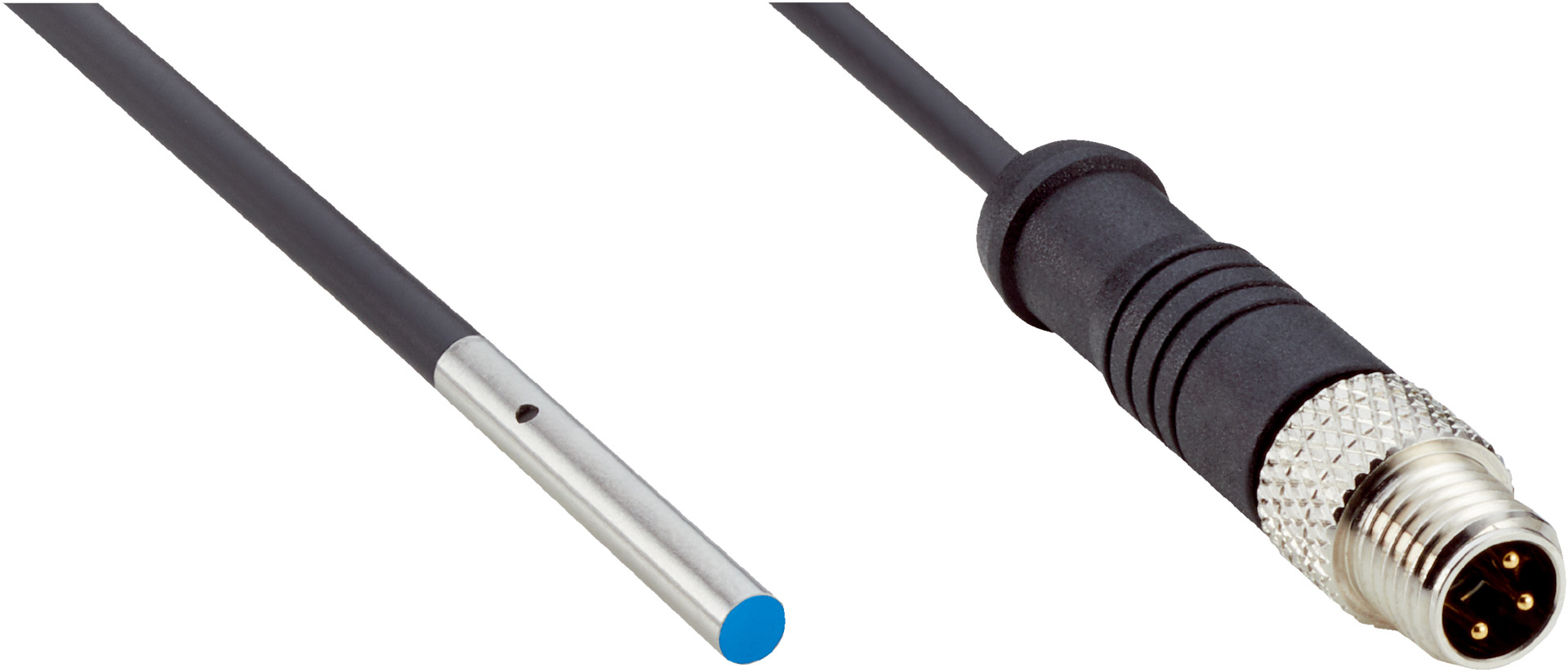

Inductive Proximity Sensor | Stainless Steel Housing | IP67 Rated | High Switching Frequency | by SICK
Inductive proximity sensor designed for industrial automation, featuring a durable stainless steel housing and an IP67 rating for dust and water protection. With a high switching frequency of 4200 Hz and a sensing range of 1 mm, it's perfect for precise metal object detection in machine safety and factory automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift of sensing range: ≤ 10%
- Continuous current Ia: ≤ 100 mA
- Cable material: PUR, diameter 2.5 mm
- Switching output: PNP, normally open (NO)
- Switching frequency: 4200 Hz
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 10.4 ms
- Process data length: 1 Byte
- Process data structure: Bit 0 = Sr reached, Bit 1 = Sa reached
- Dimensions (H x L x W): 22mm x 22mm x 3mm
- Weight: 0.1 kg
Key Features
- Standard design housing with stainless steel V2A (AISI 303) material
- Flush installation type with 3 mm diameter sensing face
- Sensing range of 1 mm with safe sensing range of 0.81 mm
- High switching frequency of 4200 Hz for fast response
- PNP switching output with normally open (NO) function
- Cable with M8, 3-pin connector, 0.2 m length
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator and IO-Link communication interface
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure correct wiring and sensor placement for optimal performance and safety.
Applications
- Industrial automation for metal object detection
- Machine safety and position sensing
- Factory and process automation requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with efficient DC 3-wire electrical wiring
- IO-Link interface enables predictive maintenance reducing downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IHM03-01BPSVR8S inductive sensor is available for immediate purchase, ideal for industrial automation and safety applications requiring precise metal object detection.
