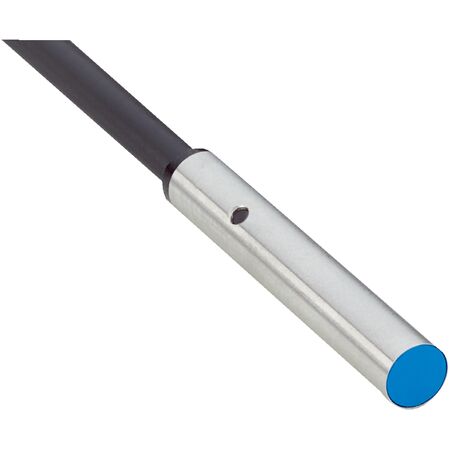

Inductive Proximity Sensor | Stainless Steel V2A Housing | 5,000 Hz Switching Frequency | IP67 Rated | by SICK
The Inductive Proximity Sensor is designed for industrial automation, featuring a durable stainless steel V2A housing and a high switching frequency of 5,000 Hz. With a flush installation type and an IP67 rating for dust and water protection, it's perfect for precise object detection and position sensing in manufacturing lines and safety control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Standard design, stainless steel V2A (DIN 1.4305 / AISI 303)
- Diameter: 4 mm
- Sensing range Sn: 0.8 mm
- Safe sensing range Sa: 0.648 mm
- Installation type: Flush
- Switching frequency: 5,000 Hz
- Connection type: Cable, 3-wire, 2 m length
- Switching output: NPN, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift of sensing range: ≤ 10%
- EMC standard: EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Cable material: PUR
- Conductor size: 0.14 mm²
- Cable diameter: 2.9 mm
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +70 °C
- Sensing face material: Plastic, LCP
- Housing length: 25 mm
- Dimensions (H x L x W): 4mm x 25mm x 4mm
- Weight: 0.1 kg
Key Features
- Standard design housing with stainless steel V2A material
- Flush installation type with 4 mm diameter sensing face
- High switching frequency of 5,000 Hz
- NPN switching output with normally open function
- Visual adjustment indicator for easy setup
- IP67 rated enclosure for dust and water protection
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from –25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician to ensure proper wiring and mounting according to manufacturer guidelines and safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with DC 3-wire electrical wiring
- High reliability reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IHM04-0B8NSVU2S Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety control applications.
