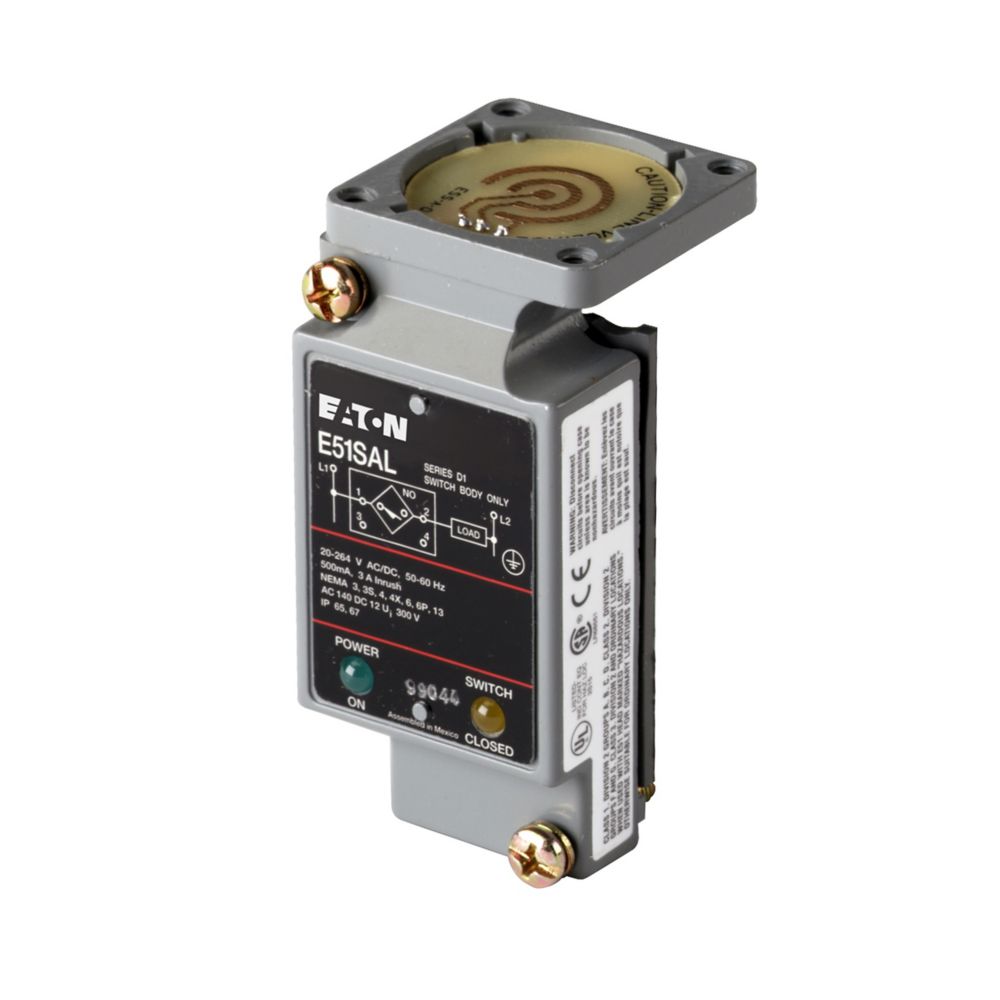

Inductive Proximity Switch Body | NEMA 3, 4, 6 Ratings | 500 mA AC/DC Output | by Eaton
Inductive Proximity Switch Body designed for industrial automation, featuring a durable die cast zinc enclosure and NEMA 3, 4, 6 environmental ratings. With a wide input voltage range of 20-264 Vac/dc and a solid state output of 500 mA, this switch is perfect for position sensing and machine safety applications. The output ON indicator LED allows for easy status monitoring, making it an essential component for control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Switch Body | NEMA 3, 4, 6 Ratings | 500 mA AC/DC Output | by Eaton
Brand: Eaton
SKU: E51SAL
Alternatively Known As: E51 Inductive Proximity Sensor, Eaton E51 Proximity Switch, E51SAL Proximity Sensor Body
Technical Specifications
- Contact Rating: 500 mA AC/DC solid state output
- Contact Configuration: 2-wire AC, Normally Open (NO)
- Input Voltage: 20-264 Vac/dc
- Operating Temperature Range: -13 °F to 158 °F
- Enclosure Material: Die cast zinc
- Environmental Rating: NEMA 3, 3S, 4, 4X, 6, 6P, 12, 13, IP67
- LED Indicator: Output ON (1 LED per output)
- Protection: Latching short circuit
- Dimensions (H x L x W): 133mm x 50mm x 50mm
- Weight: 0.14 kg
Key Features
- Die cast zinc enclosure for durability
- NEMA 3, 3S, 4, 4X, 6, 6P, 12, 13 and IP67 environmental ratings
- Output ON indicator LED for easy status monitoring
- 2-wire AC, Normally Open contact configuration
- Latching short circuit protection
- Wide input voltage range: 20-264 Vac/dc
- 500 mA AC/DC solid state output current rating
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Industrial automation for position sensing
- Limit switch applications in manufacturing
- Machine safety and control systems
- Conveyor and material handling equipment
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy efficient solid state output reduces power consumption
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Eaton E51 NEMA Inductive Proximity Sensor Switch Body is available for immediate purchase, ideal for industrial automation and control applications.
