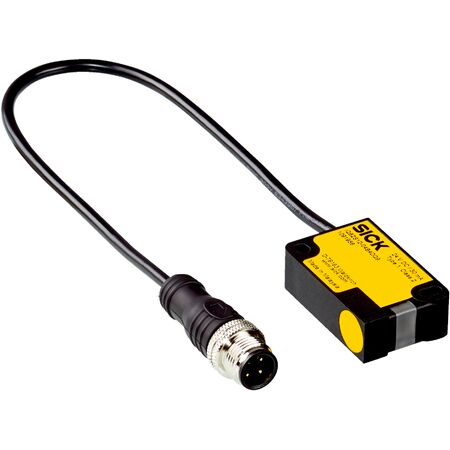

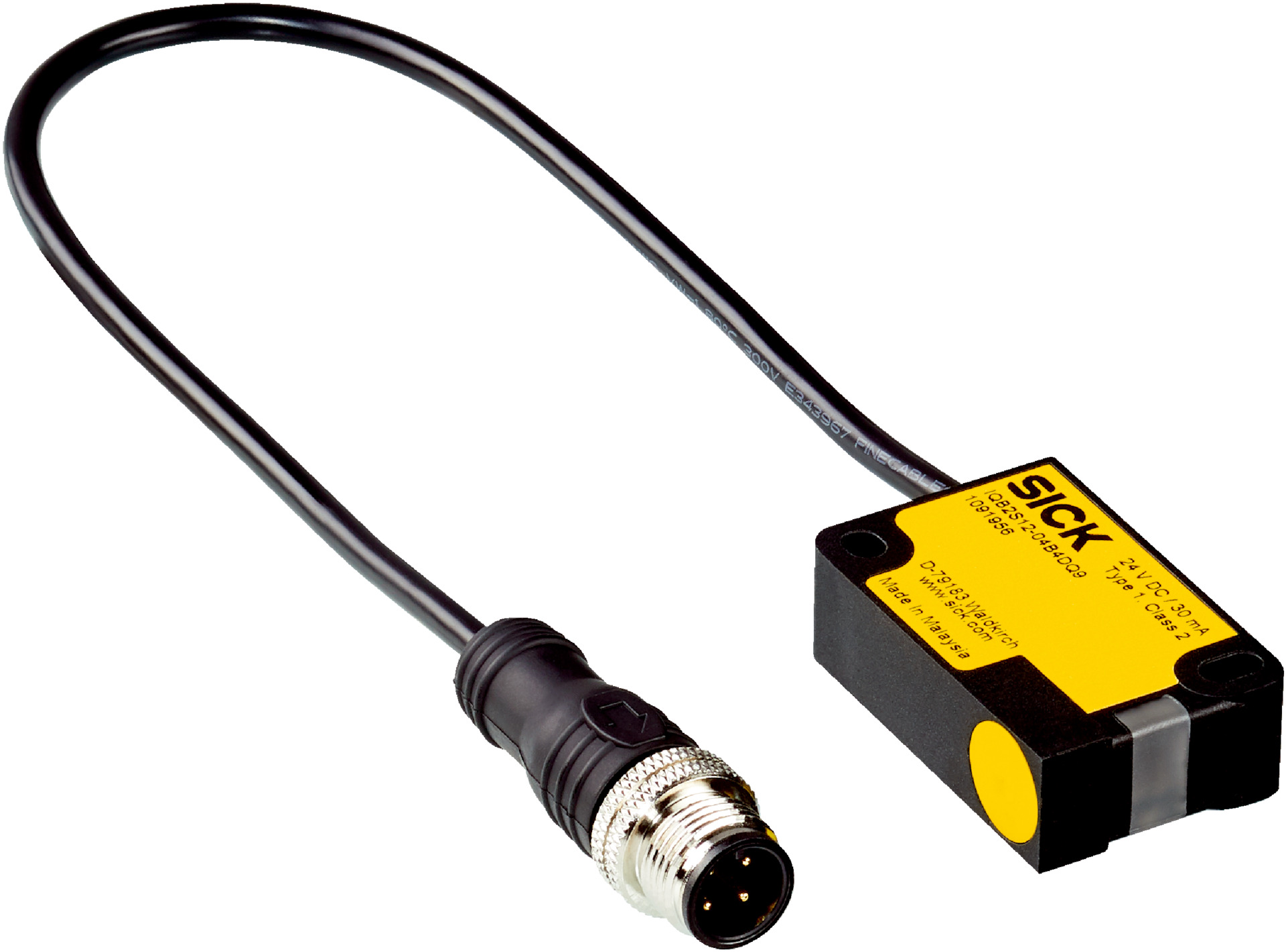

Inductive Safety Sensor | Dual Output | SIL 2 & PL d Rated | IP67 Protection | by SICK
The Inductive Safety Sensor IQB2S12-04B4DQ9 features a dual output design with a sensing range of 4 mm, ensuring reliable safety monitoring in industrial automation. With a safety integrity level of SIL 2 and performance level PL d, this sensor is perfect for machine safety and control systems. Its IP67 rating provides excellent dust and water protection, making it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Inductive
- Number of safe outputs: 2
- Sensing range Sn: 4 mm
- Assured switch on distance Sao: 3.2 mm
- Assured switch off distance Sar: 6 mm
- Actuation frequency: ≤ 100 Hz
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 2 (ISO 13849-1)
- Performance level: PL d (ISO 13849-1)
- PFHD: 6.0 x 10^-8
- Mission time: 20 years
- Type: Type 3 (ISO 13849-1)
- Actuator coding level: Uncoded (EN ISO 14119)
- Safe state on fault: At least one OSSD off
- Connection: Cable with M12 male connector, 4-pin, 0.3 m length
- Cable diameter: 3.9 mm, PVC material
- Protection class: III (IEC 61140)
- Rated insulation voltage Ui: 28.8 V
- Rated impulse withstand voltage Uimp: 1500 V
- Supply voltage Vs: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 20 mA
- Response time: ≤ 1 ms
- Release time: ≤ 2 ms
- Risk time: ≤ 20 ms
- Switch-on time: 1 s
- Enclosure rating: IP67 (IEC 60529)
- Operating temperature: -25 °C to +70 °C
- Storage temperature: -25 °C to +70 °C
- Relative humidity: 50% at 70 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- EMC standards: IEC 60947-5-2, IEC 61000-6-7, IEC 60947-5-3
- Dimensions (H x L x W): 26mm x 40mm x 12mm
- Weight: 0.1 kg
Key Features
- Inductive sensor principle with 2 safe outputs
- Sensing range of 4 mm with assured switch on/off distances
- Safety integrity level SIL 2 and Performance level PL d
- Self-monitoring semiconductor outputs (OSSDs)
- Flush installation with rectangular VISTAL® housing
- IP67 rated for dust and water protection
- LED status display and diagnostics indicator
- Fast response time ≤ 1 ms and release time ≤ 2 ms
- Safe series connection capability with Flexi Loop diagnostics
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor integration and compliance with occupational health and safety standards.
Applications
- Industrial automation safety monitoring
- Machine safety and control systems
- Factory automation requiring SIL 2 and PL d safety levels
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable VISTAL® housing ensures long service life reducing waste
- Low power consumption of ≤ 20 mA supports energy efficiency
- IP67 protection minimizes environmental contamination and ingress
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IQB2S12-04B4DQ9 Inductive Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications requiring reliable dual safe output monitoring.
