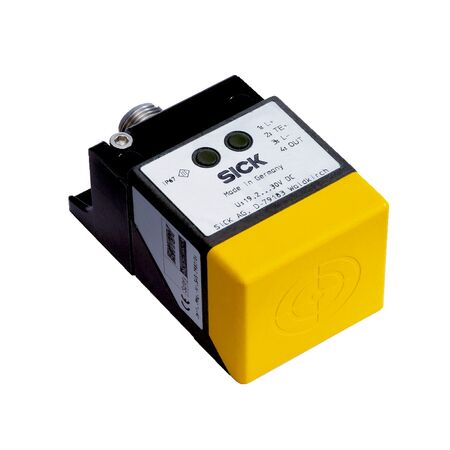

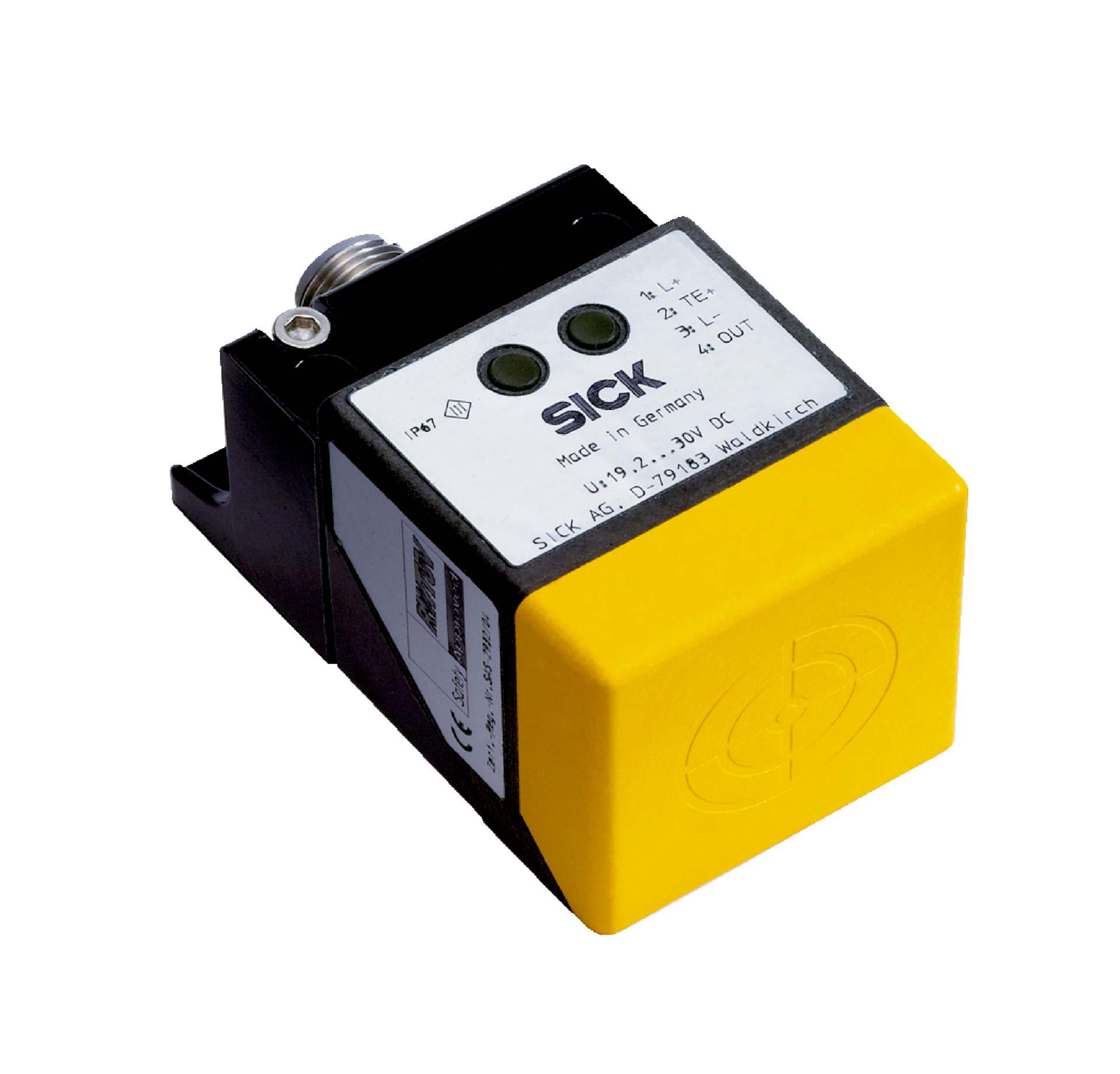

Inductive Safety Sensor IN40-D0101K | SIL 3 Compliance | IP67 Rated | Non-Flush Design | by SICK
The Inductive Safety Sensor IN40-D0101K is designed for industrial automation safety monitoring, featuring SIL 3 compliance and an IP67 rated enclosure for dust and water protection. With a durable zinc die cast housing and low power consumption, this sensor ensures high reliability and long mission life, making it ideal for machine safety systems in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 20mm x 100mm x 40mm
- Weight: 0.22 kg
Key Features
- Inductive sensor principle with 1 safe output
- Switching delay from state change: T2 + 20 ms
- Enable zone: 10 mm to 15 mm
- Assured switch off distance Sar: 30 mm
- Supports 5 actuation directions
- Monitoring time minimum dwell time ≥ 0.2 s
- Safety integrity level SIL 3 (IEC 61508)
- Category 3 (EN ISO 13849) with Performance level PL e
- Mean probability of dangerous failure per hour (PFHD): 1.0 x 10^-8
- Mission time: 10 to 20 years (EN ISO 13849)
- Type 3 (EN ISO 14119), uncoded actuator
- Safe series connection with T-connector (without diagnostics)
- Plug connector M12, 4-pin with brass coupling nut
- LED power indication and status display
- Protection class III (EN 50178)
- Supply voltage 24 V DC (19.2 V DC to 30 V DC)
- Power consumption 15 mA
- Semiconductor pulsed output
- Rectangular design, zinc die cast housing with PPE cover
- Non-flush installation type
- IP67 rated enclosure for dust and water protection
- Operating temperature range -25 °C to +70 °C
- Vibration resistance 10 Hz to 55 Hz, 1 mm
- Shock resistance 30 g, 11 ms
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure compliance with safety standards and proper sensor function.
Applications
- Industrial automation safety monitoring
- Machine safety systems requiring SIL 3 and PL e compliance
- Non-flush mounting in harsh environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable zinc die cast housing ensures long product life reducing waste
- Low power consumption (15 mA) contributes to energy efficiency
- High reliability and long mission time reduce replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IN40-D0101K Inductive Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
