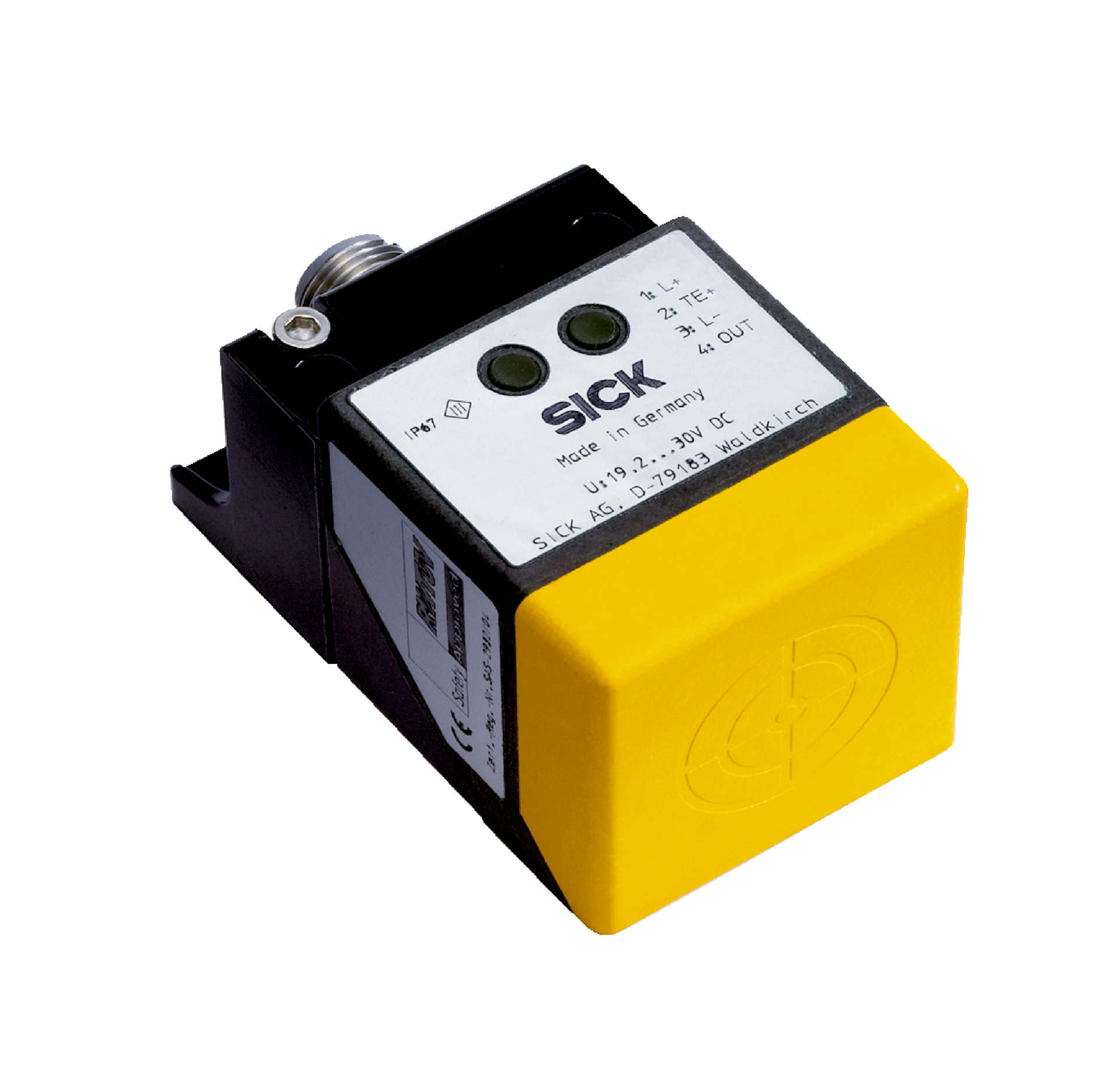

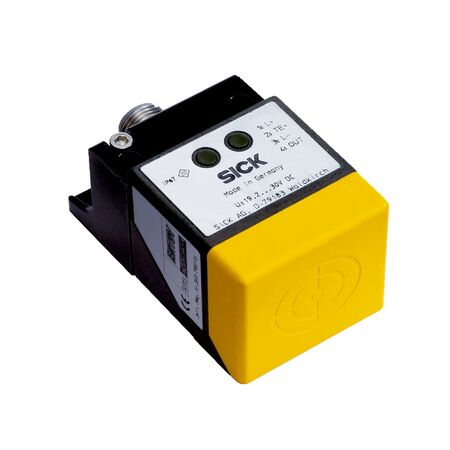

Inductive Safety Sensor IN40-E0101K | Dual Output | IP67 Rated | SIL 3 Compliance | by SICK
The Inductive Safety Sensor IN40-E0101K features a robust inductive sensor principle with dual safe outputs, making it ideal for industrial safety monitoring and automation systems. With a maximum switching delay of 50 ms and an assured switch-off distance of 30 mm, this sensor ensures reliable performance in demanding environments. Its IP67 rating and wide operating temperature range from -25°C to +70°C make it suitable for various applications, ensuring safety and efficiency in machine safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Inductive
- Number of safe outputs: 2
- Switching delay from state change: Max. 50 ms
- Enable zone: 10 mm to 15 mm
- Assured switch off distance Sar: 30 mm
- Actuation directions: 5
- Active sensor surfaces: 1
- Monitoring time minimum dwell time: ≥ 0.2 s
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 1.0 x 10^-8
- Mission time: 10 years (EN ISO 13849), 20 years optional
- Type: Type 3 (EN ISO 14119)
- Actuator coding level: Uncoded (EN ISO 14119)
- Classification: PDF-M (IEC/EN 60947-5-3)
- Connection type: Plug connector, M12, 4-pin
- Coupling nut material: Brass
- Display elements: LEDs with power indication and status display
- Protection class: III (EN 50178)
- Supply voltage: 24 V DC (19.2 V DC to 30 V DC)
- Power consumption: 15 mA
- Output type: Self-monitoring semiconductor outputs (OSSDs)
- Design: Rectangular
- Material: Zinc die cast housing, PPE cover
- Installation type: Non-flush
- Enclosure rating: IP67 (IEC 60529)
- Operating temperature: -25°C to +70°C
- Storage temperature: -25°C to +70°C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Shock resistance: 30 g, 11 ms
- Dimensions (H x L x W): 20mm x 100mm x 40mm
- Weight: 0.22 kg
Key Features
- Inductive sensor principle with 2 safe outputs
- Max switching delay of 50 ms
- Enable zone between 10 mm and 15 mm
- Assured switch off distance of 30 mm
- Supports 5 actuation directions
- Single active sensor surface
- Minimum monitoring dwell time of 0.2 seconds
- Safe series connection capability with Flexi Loop and diagnostics
- LED indicators for power and status
- Non-flush rectangular design with zinc die cast housing and PPE cover
- Protection class III and IP67 rated for harsh environments
- Operating temperature range from -25°C to +70°C
- Shock resistance of 30 g and vibration resistance compliant with EN 60947-5-3
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and compliant with relevant safety standards.
Applications
- Industrial safety monitoring
- Machine safety systems
- Automation and control systems requiring SIL 3 safety level
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of 15 mA supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK IN40-E0101K Inductive Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
