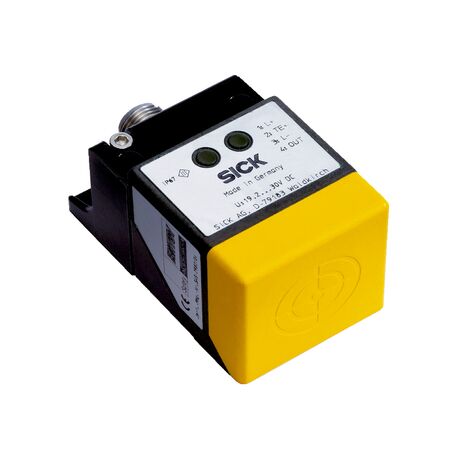

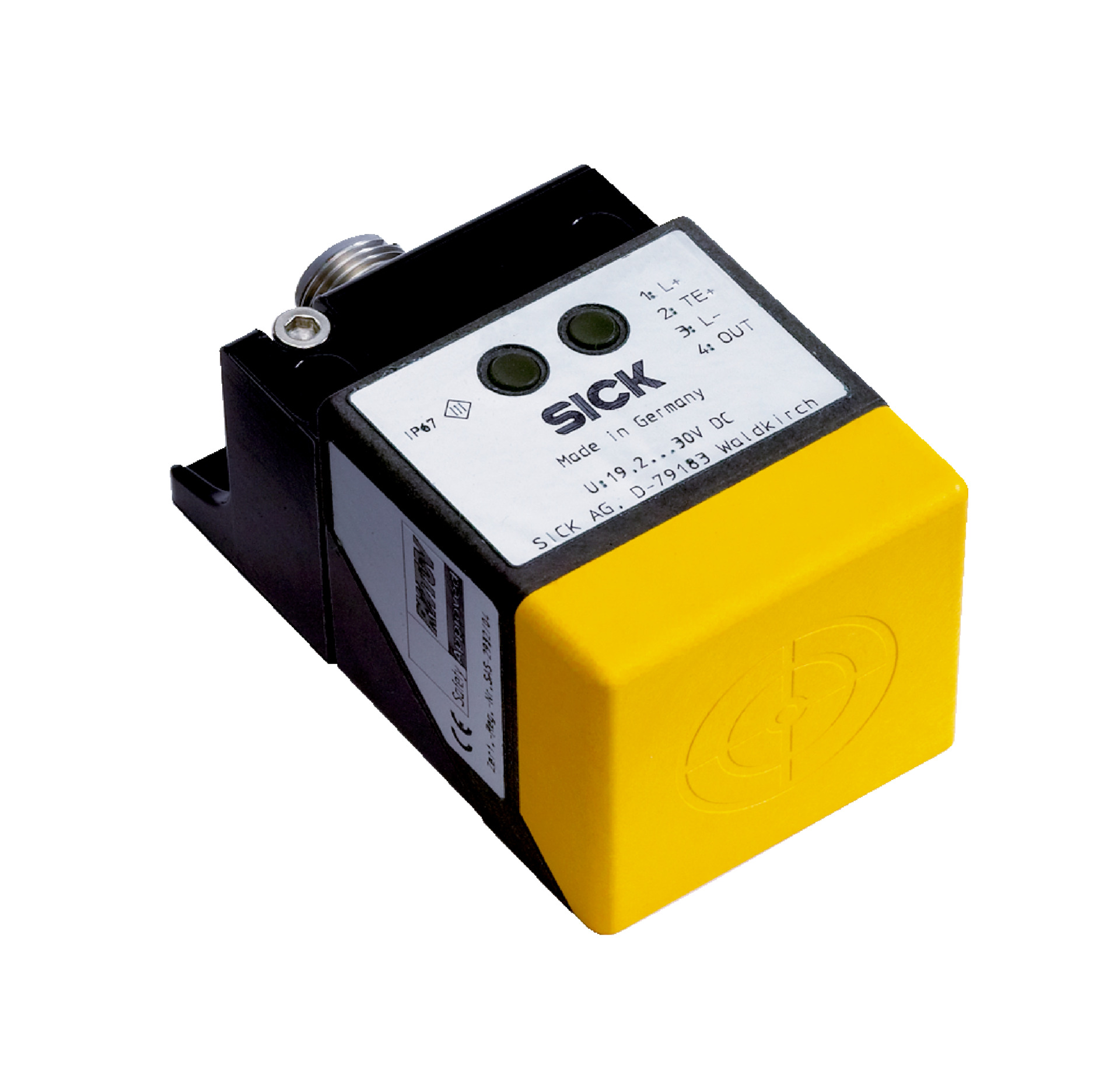

Inductive Safety Sensor IN40-E0109K | Dual Output | IP67 Rated | by SICK
The Inductive Safety Sensor IN40-E0109K features a robust design with dual safe outputs and a maximum switching delay of 50 ms, making it ideal for industrial automation safety monitoring. With an adjustable enable zone from 4 mm to 20 mm and IP67 rating for dust and water protection, this sensor is perfect for machine safety and control systems, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Inductive
- Number of safe outputs: 2
- Switching delay from state change: Max. 50 ms
- Enable zone: 4 mm to 20 mm
- Assured switch off distance Sar: 45 mm
- Actuation directions: 5
- Active sensor surfaces: 1
- Monitoring time minimum dwell time: ≥ 0.2 s
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 1.0 x 10^-8
- Mission time: 10 years (EN ISO 13849), 20 years extended
- Type: Type 3 (EN ISO 14119)
- Actuator coding level: Uncoded (EN ISO 14119)
- Classification: PDF-M (IEC/EN 60947-5-3)
- Safe series connection: With Flexi Loop (with diagnostics)
- Connection type: Plug connector, M12, 4-pin
- Coupling nut material: Brass
- Display elements: LEDs with power indication and status display
- Protection class: III (EN 50178)
- Supply voltage: 24 V DC (19.2 V DC to 30 V DC)
- Power consumption: 30 mA
- Type of output: Self-monitoring semiconductor outputs (OSSDs)
- Design: Rectangular
- Material housing: Zinc die cast housing, PPE cover
- Installation type: Non-flush
- Enclosure rating: IP67 (IEC 60529)
- Ambient operating temperature: -25 °C to +60 °C
- Storage temperature: -25 °C to +70 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Shock resistance: 30 g, 11 ms
- Dimensions (H x L x W): 20mm x 90mm x 40mm
- Weight: 0.22 kg
Key Features
- Inductive sensor principle with 2 safe outputs
- Max switching delay of 50 ms
- Enable zone adjustable from 4 mm to 20 mm
- Assured switch off distance of 45 mm
- Supports 5 actuation directions
- LED power indication and status display
- Self-monitoring semiconductor outputs (OSSDs)
- Protection class III compliant
- Robust zinc die cast housing with PPE cover
- IP67 rated for dust and water protection
- Vibration and shock resistant
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and compliant with relevant safety standards.
Applications
- Industrial automation safety monitoring
- Machine safety and control systems
- Non-flush mounting safety sensor applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption of 30 mA supports energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IN40-E0109K Inductive Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
