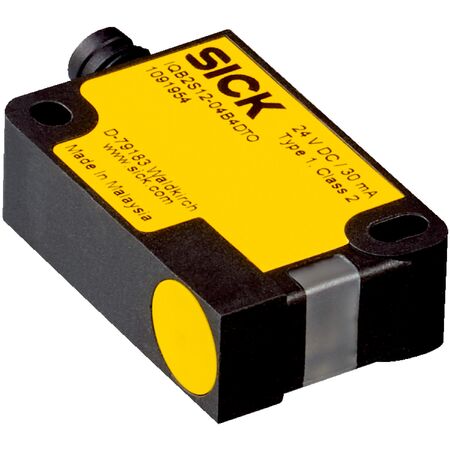

Inductive Safety Sensor IQB2S12-04B4DT0 | 2 Safe Outputs | SIL 2 & PL d Rated | IP67 Enclosure | by SICK
The Inductive Safety Sensor IQB2S12-04B4DT0 features an inductive sensor principle with 2 safe outputs, making it ideal for industrial automation safety monitoring. With a sensing range of 4 mm and SIL 2 safety integrity level, this sensor ensures reliable performance in machine safety systems. Its robust IP67 rated enclosure and LED diagnostics display enhance usability and durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Inductive
- Number of safe outputs: 2
- Sensing range Sn: 4 mm
- Assured switch on distance Sao: 3.2 mm
- Assured switch off distance Sar: 6 mm
- Actuation frequency: ≤ 100 Hz
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 2 (ISO 13849-1)
- Performance level: PL d (ISO 13849-1)
- PFHD: 6.0 x 10^-8
- Mission time: 20 years
- Type: Type 3 (ISO 13849-1)
- Actuator coding level: Uncoded (EN ISO 14119)
- Safe state on fault: At least one OSSD output OFF
- Connection type: Male connector M8, 4-pin
- Coupling nut material: VISTAL®
- IO-Link Safety WCDT: ≤ 1 ms, OFDT: ≤ 20 ms
- Display elements: LEDs with diagnostics indicator and status display
- Protection class: III (IEC 61140)
- Rated insulation voltage Ui: 28.8 V
- Rated impulse withstand voltage Uimp: 1,500 V
- Supply voltage Vs: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 20 mA
- Response time: ≤ 1 ms
- Release time: ≤ 2 ms
- Risk time: ≤ 20 ms
- Switch-on time: 1 s
- Design: Rectangular
- Material: Housing and sensor surface made of VISTAL®
- Installation type: Flush
- Enclosure rating: IP67 (IEC 60529)
- Operating temperature: -25 °C to +70 °C
- Storage temperature: -25 °C to +70 °C
- Relative humidity: 50% at 70 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- EMC standards: IEC 60947-5-2, IEC 61000-6-7, IEC 60947-5-3
- Dimensions (H x L x W): 26mm x 40mm x 12mm
- Weight: 0.1 kg
Key Features
- Inductive sensor principle with 2 safe outputs
- Sensing range of 4 mm with assured switch on/off distances
- Safety integrity level SIL 2 and Performance level PL d
- Self-monitoring semiconductor outputs (OSSDs)
- IP67 rated enclosure for robust protection
- LED status display and diagnostics indicator
- Flush installation with rectangular design
- Operating temperature range from -25°C to +70°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor integration and electrical standards to ensure compliance and optimal performance.
Applications
- Industrial automation safety monitoring
- Machine safety systems requiring inductive sensing
- Safety-related control systems in manufacturing
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste through long service life
- Low power consumption of ≤ 20 mA supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IQB2S12-04B4DT0 Inductive Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
