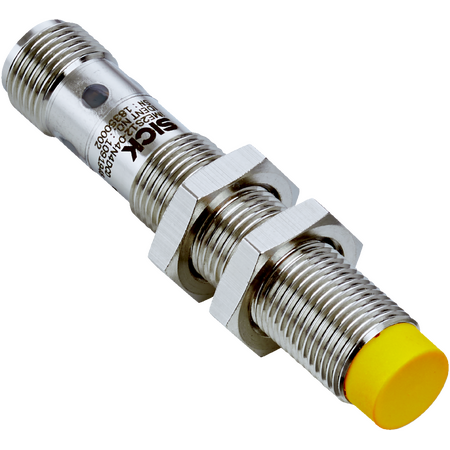

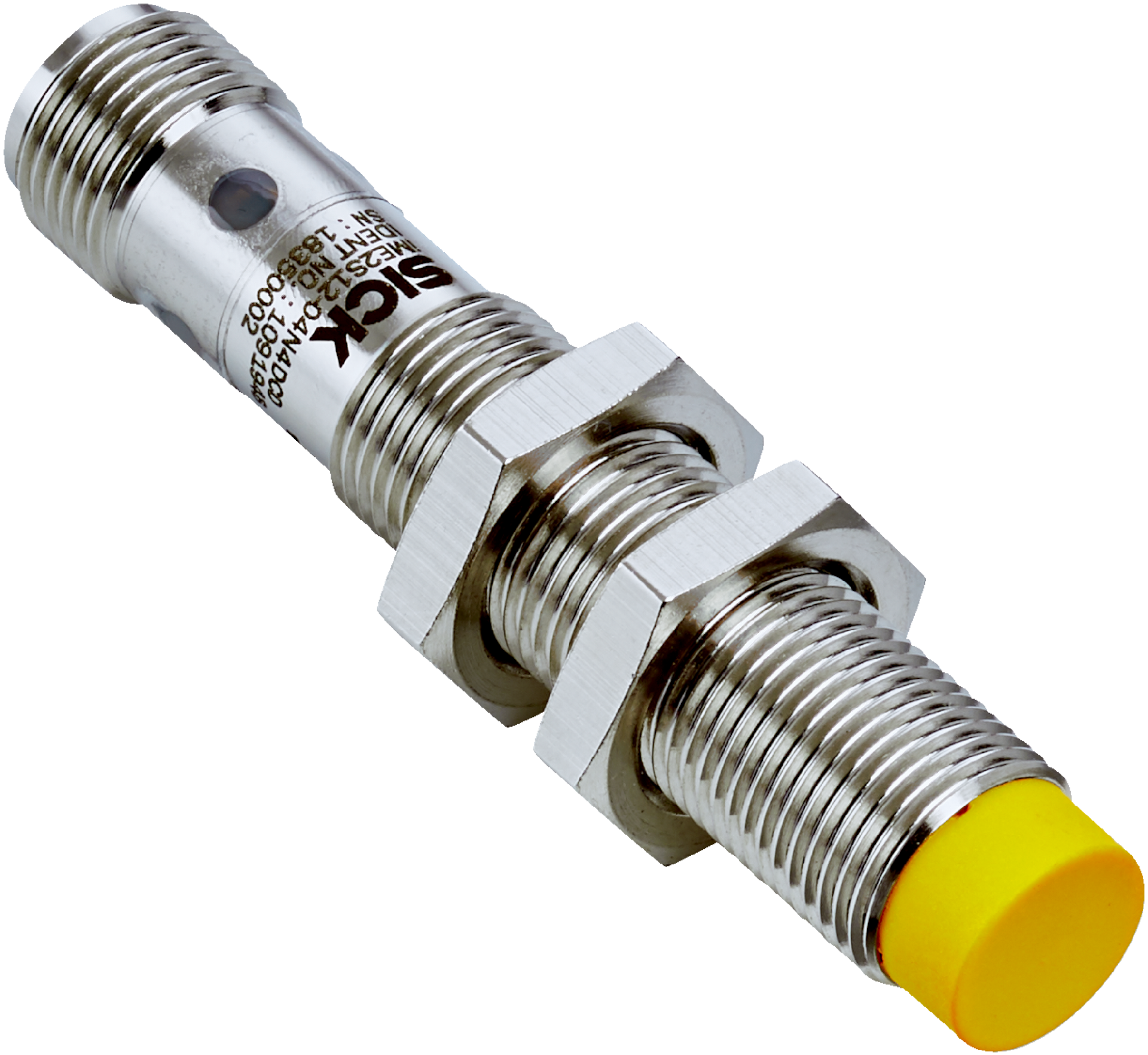

Inductive Safety Sensor M12 | Dual Output | SIL 2 & PL d | IP67 Rated | by SICK
The Inductive Safety Sensor M12 is designed for industrial automation safety monitoring, featuring dual safe outputs and a sensing range of 4 mm. Built for harsh environments, this sensor offers a SIL 2 safety integrity level and a robust IP67 enclosure, ensuring reliable performance in machine safety systems. With self-monitoring semiconductor outputs and LED diagnostics, it’s perfect for applications requiring high reliability and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Inductive Safety Sensor M12, Dual Output Safety Sensor, IME2S12 Safety Sensor
Technical Specifications
- Sensor principle: Inductive
- Number of safe outputs: 2
- Sensing range Sn: 4 mm
- Assured switch on distance Sao: 3.2 mm
- Assured switch off distance Sar: 6 mm
- Actuation frequency: ≤ 100 Hz
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 2 (ISO 13849-1)
- Performance level: PL d (ISO 13849-1)
- PFHD: 6.0 x 10^-8
- Mission time: 20 years
- Type: Type 3 (ISO 14119-1)
- Actuator coding level: Uncoded
- Safe state on fault: At least one safety-related semiconductor output OFF
- Connection type: Male connector M12, 4-pin
- Coupling nut material: Nickel-plated brass
- Display elements: LEDs with diagnostics and status display
- Protection class: III (IEC 61140)
- Rated insulation voltage Ui: 28.8 V
- Rated impulse withstand voltage Uimp: 1500 V
- Supply voltage Vs: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 20 mA
- Output type: Self-monitoring semiconductor outputs (OSSDs)
- Response time: ≤ 1 ms
- Release time: ≤ 1 ms
- Risk time: ≤ 20 ms
- Switch-on time: 1 s
- Design: Cylindrical, non-flush installation
- Housing diameter: M12
- Housing length: 65 mm
- Thread length: 36.9 mm
- Material: Nickel-plated brass housing, VISTAL® sensor surface
- Enclosure rating: IP67
- Operating temperature: -25°C to +70°C
- Storage temperature: -25°C to +70°C
- Relative humidity: 50% at 70°C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- EMC standards: IEC 60947-5-2, IEC 60947-5-3, IEC 61000-6-7
- Dimensions (H x L x W): 12mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Inductive sensor principle with 2 safe outputs
- M12 cylindrical housing with nickel-plated brass material
- Sensing range of 4 mm with assured switch on/off distances
- Safety integrity level SIL 2 and Performance level PL d
- Self-monitoring semiconductor outputs (OSSDs)
- LED status display and diagnostics indicator
- Protection class III with IP67 enclosure rating
- Operating temperature range from -25°C to +70°C
- High vibration resistance and EMC compliance
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure compliance with safety standards and proper sensor integration.
Applications
- Industrial automation safety monitoring
- Machine safety systems requiring dual safe outputs
- Non-flush mounting in harsh environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable nickel-plated brass housing extends product life reducing waste
- Low power consumption of ≤ 20 mA supports energy efficiency
- High reliability reduces downtime and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK IME2S12-04N4DC0 Inductive Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
