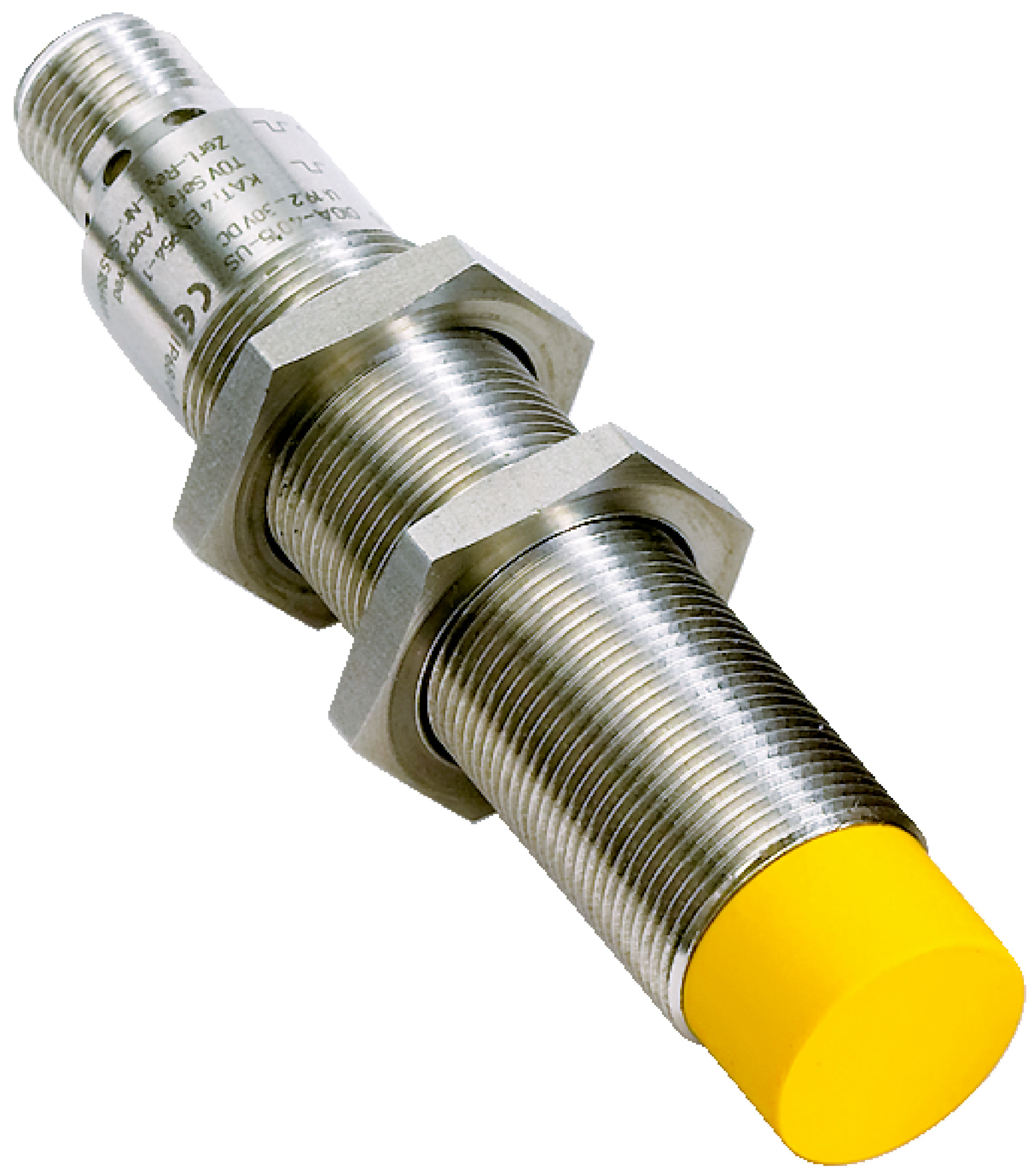

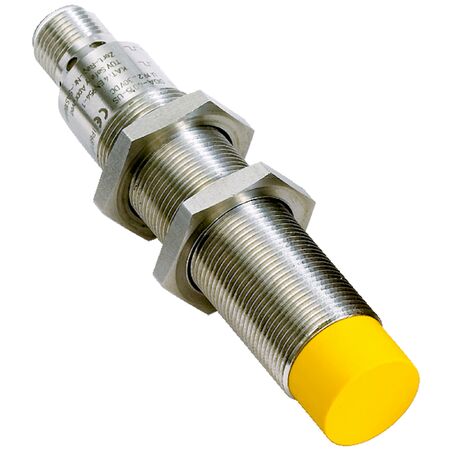

Inductive Safety Sensor M18 | SIL 3 Compliance | IP69K Rating | Non-Flush Design | by SICK
The Inductive Safety Sensor M18 IN40-D0303K is engineered for industrial automation safety monitoring, featuring SIL 3 compliance and an IP69K rating for high protection in washdown environments. With a durable stainless steel housing and low power consumption, this sensor is perfect for machine safety systems that require reliable performance and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 18mm x 90.5mm x 18mm
- Weight: 0.1 kg
Key Features
- Inductive sensor principle with 1 safe output
- Switching delay from state change: T2 + 20 ms
- Enable zone between 3 mm and 6 mm
- Assured switch off distance Sar of 15 mm
- Supports 5 actuation directions with 1 active sensor surface
- Monitoring time minimum dwell time ≥ 0.2 s
- Safety integrity level SIL 3 (IEC 61508)
- Category 3 (EN ISO 13849) and Performance level PL e (EN ISO 13849)
- Mean probability of dangerous failure per hour (PFHD) 1.0 x 10^-8
- Mission time 10 to 20 years (EN ISO 13849)
- Type 3 (EN ISO 14119) with uncoded actuator
- Safe series connection possible with T-connector (without diagnostics)
- Plug connector M12, 4-pin with stainless steel coupling nut
- LED power indication and status display
- Protection class III (EN 50178)
- Supply voltage 24 V DC (19.2 V DC to 30 V DC)
- Power consumption 15 mA
- Semiconductor pulsed output type
- Cylindrical design with M18 housing diameter and 90.5 mm length
- Housing made of V4A stainless steel and PBT cover
- Non-flush installation type
- Enclosure rating IP69K (IEC 60529) for high protection
- Operating temperature range -25 °C to +70 °C
- Vibration resistance 10 Hz to 55 Hz, 1 mm
- Shock resistance 30 g, 11 ms
- Certified with EU, UK, ACMA, Moroccan declarations of conformity, China-RoHS, cULus, and TÜV approvals
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure compliance with safety standards and proper sensor function.
Applications
- Industrial automation safety monitoring
- Machine safety systems requiring SIL 3 and PL e compliance
- Non-flush installation environments with high hygiene or washdown requirements
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing ensures long product life reducing waste
- High ingress protection (IP69K) suitable for washdown environments reducing contamination risk
- Low power consumption of 15 mA contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IN40-D0303K Inductive Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications requiring high safety integrity.
