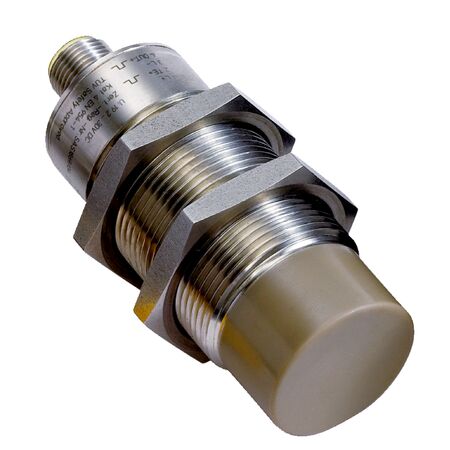

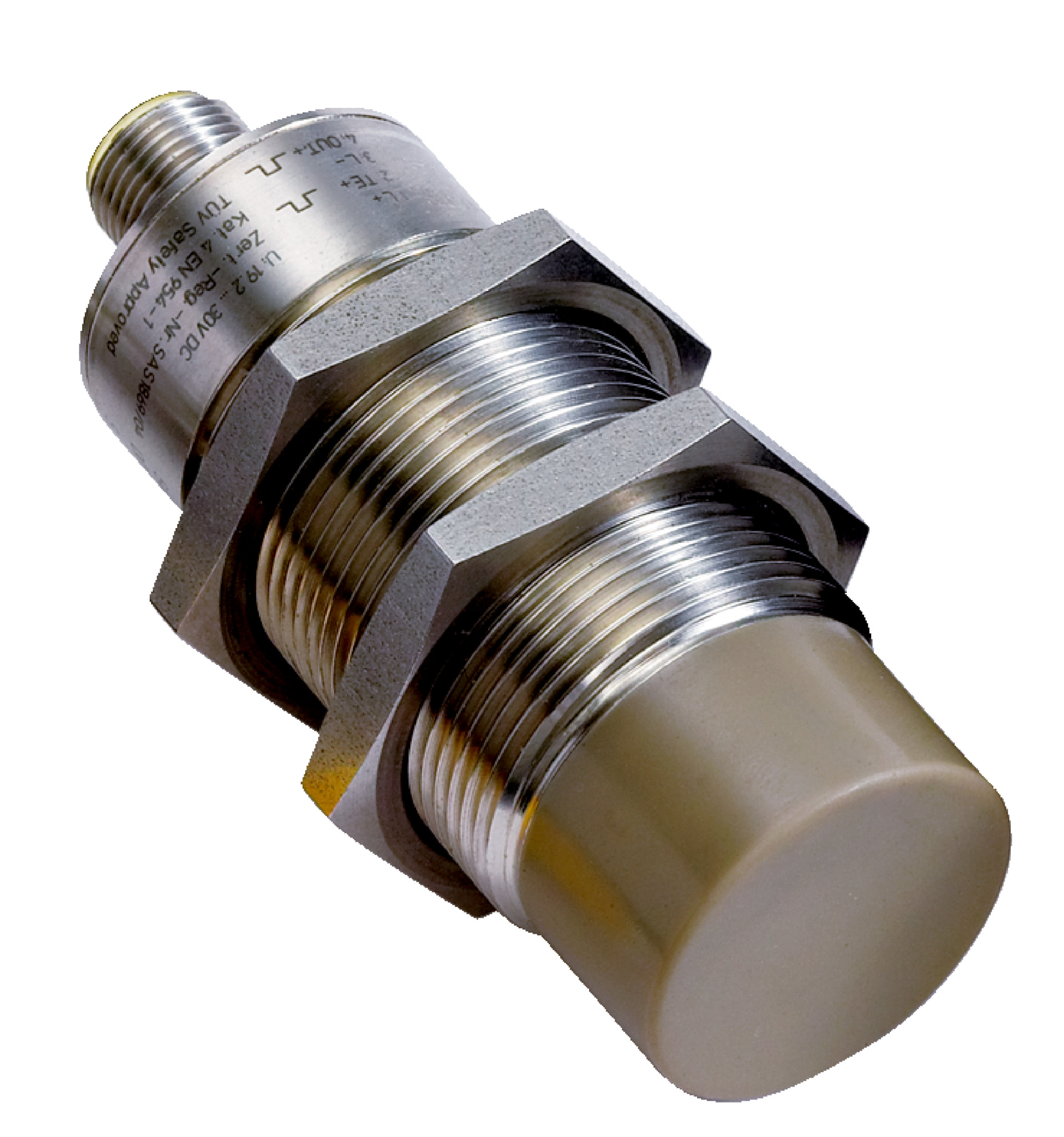

Inductive Safety Sensor M30 | 1 Safe Output | IP69K Rated | Stainless Steel Housing | by SICK
The Inductive Safety Sensor M30 is designed for industrial automation safety monitoring, featuring a reliable inductive sensor principle with one safe output. With an assured switch-off distance of 30 mm and a protection class of IP69K, this sensor is perfect for machine safety and control systems, ensuring high safety integrity in non-flush installation environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Inductive
- Number of safe outputs: 1
- Switching delay from state change: T2 + 20 ms
- Enable zone: 6 mm to 12 mm
- Assured switch off distance Sar: 30 mm
- Actuation directions: 5
- Monitoring time minimum dwell time: ≥ 0.2 s
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 1.0 x 10^-8
- Mission time: 10 to 20 years (EN ISO 13849)
- Type: Type 3 (EN ISO 14119)
- Actuator coding level: Uncoded (EN ISO 14119)
- Connection type: Plug connector, M12, 4-pin
- Coupling nut material: Stainless steel
- Display elements: LEDs with power indication and status display
- Protection class: III (EN 50178)
- Supply voltage: 24 V DC (19.2 V DC to 30 V DC)
- Power consumption: 15 mA
- Type of output: Semiconductor, pulsed
- Design: Cylindrical
- Housing length: 80 mm
- Thread length: 39 mm
- Material: V4A housing, PEEK cover
- Installation type: Non-flush
- Enclosure rating: IP69K (IEC 60529)
- Ambient operating temperature: 0 °C to +70 °C
- Storage temperature: -25 °C to +70 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Shock resistance: 30 g, 11 ms
- Dimensions (H x L x W): 80mm x 80mm x 30mm
- Weight: 0.13 kg
Key Features
- Inductive sensor principle with 1 safe output
- Switching delay from state change: T2 + 20 ms
- Enable zone between 6 mm and 12 mm
- Assured switch off distance Sar of 30 mm
- Supports 5 actuation directions
- LED power indication and status display
- Protection class III (EN 50178)
- High vibration and shock resistance
- Housing diameter M30 with stainless steel coupling nut
- Non-flush cylindrical design with V4A housing and PEEK cover
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor integration and compliance with relevant safety standards.
Applications
- Industrial automation safety monitoring
- Machine safety and control systems
- Non-flush installation environments requiring high safety integrity
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of 15 mA reduces energy usage
- Durable materials and high protection rating (IP69K) ensure long service life and reduce waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IN40-D0202K Inductive Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications requiring high reliability and safety integrity.
