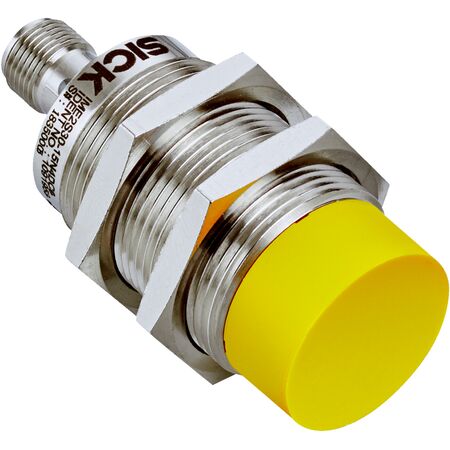

Inductive Safety Sensor M30 | 15mm Sensing Range | SIL 2 & PL d | IP67 Rated | by SICK
The Inductive Safety Sensor M30 is designed for industrial automation safety monitoring, featuring a 15mm sensing range and two safe outputs with self-monitoring capabilities. Built for machine safety and control systems, this robust sensor offers a SIL 2 safety integrity level and an IP67 enclosure for dust and water protection, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Inductive
- Number of safe outputs: 2
- Sensing range Sn: 15 mm
- Assured switch on distance Sao: 12 mm
- Assured switch off distance Sar: 22.5 mm
- Actuation frequency: ≤ 100 Hz
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 2 (ISO 13849-1)
- Performance level: PL d (ISO 13849-1)
- PFHD: 6.0 x 10^-8
- Mission time: 20 years
- Type: Type 3 (ISO 14119-1)
- Actuator coding level: Uncoded (EN ISO 14119)
- Safe state on fault: At least one safety-related semiconductor output OFF
- Connection type: Male connector M12, 4-pin
- Coupling nut material: Nickel-plated brass
- IO-Link Safety WCDT: ≤ 1 ms, OFDT: ≤ 20 ms
- Display elements: LEDs with diagnostics indicator and status display
- Protection class: III (IEC 61140)
- Rated insulation voltage Ui: 28.8 V
- Rated impulse withstand voltage Uimp: 1,500 V
- Supply voltage Vs: 24 V DC (19.2 V DC ... 28.8 V DC)
- Power consumption: ≤ 20 mA
- Response time: ≤ 1 ms
- Release time: ≤ 1 ms
- Risk time: ≤ 20 ms
- Switch-on time: 1 s
- Design: Cylindrical
- Housing length: 71 mm
- Thread length: 34.6 mm
- Material housing: Nickel-plated brass
- Sensor surface: VISTAL®
- Installation type: Non-flush
- Enclosure rating: IP67 (IEC 60529)
- Ambient operating temperature: –25 °C to +70 °C
- Storage temperature: –25 °C to +70 °C
- Relative humidity: 50% at 70 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- EMC standards: IEC 60947-5-2, IEC 60947-5-3, IEC 61000-6-7
- Dimensions (H x L x W): 71mm x 71mm x 30mm
- Weight: 0.3 kg
Key Features
- Inductive sensor principle with M30 cylindrical housing
- Two safe outputs with self-monitoring semiconductor outputs (OSSDs)
- Sensing range of 15 mm with assured switch on/off distances
- Safety integrity level SIL 2 and Performance level PL d
- Safe series connection capability with Flexi Loop and diagnostics
- LED status display and diagnostics indicator for easy monitoring
- Robust nickel-plated brass housing with VISTAL® sensor surface
- Protection class III with rated insulation voltage of 28.8 V
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor integration and compliance with occupational health and safety standards.
Applications
- Industrial automation safety monitoring
- Machine safety and control systems
- Factory automation requiring safe sensor outputs
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable nickel-plated brass housing extends product life reducing waste
- Low power consumption (≤ 20 mA) contributes to energy efficiency
- Robust design minimizes replacement frequency and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK IME2S30-15N4DC0 Inductive Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
