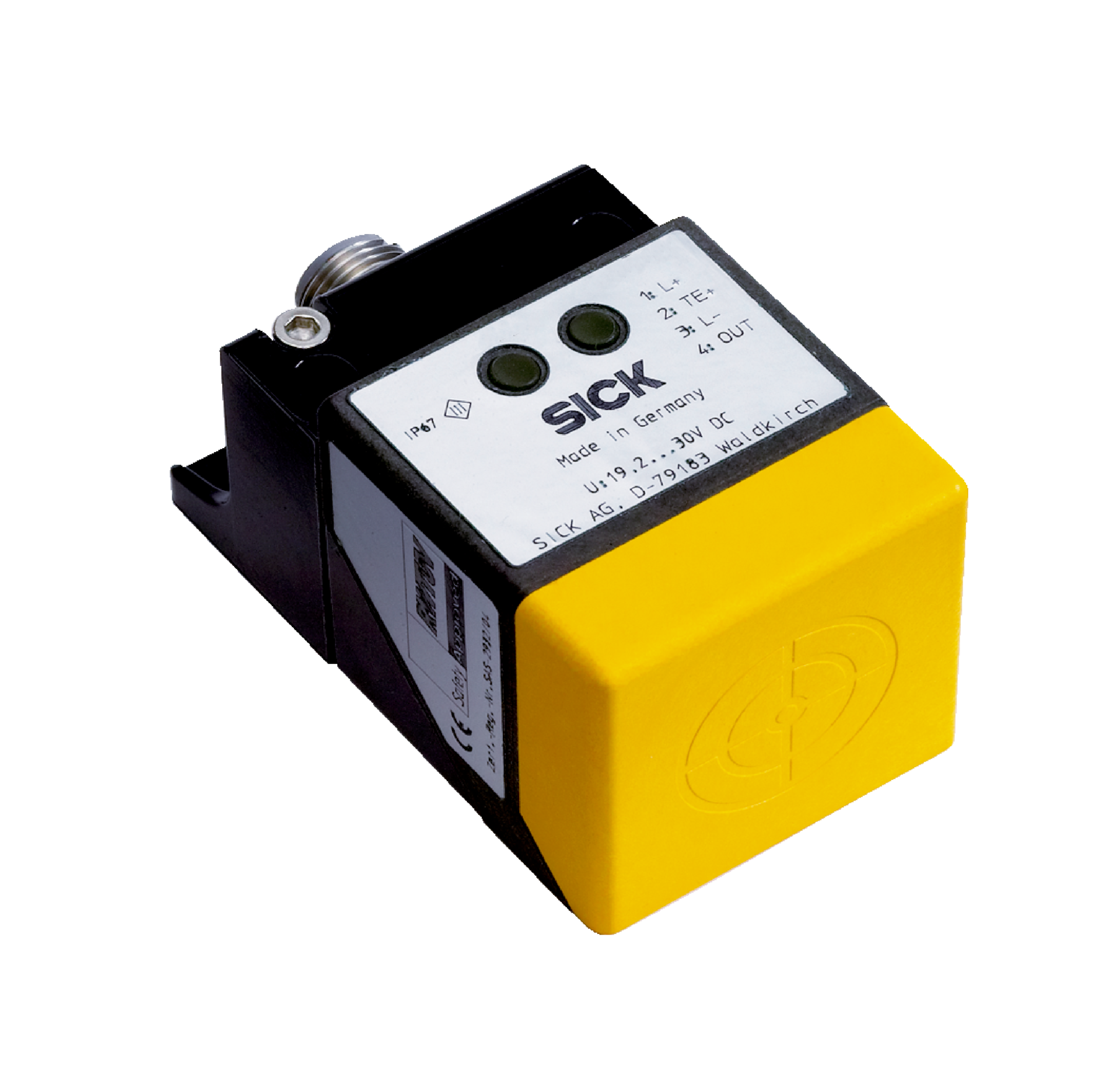

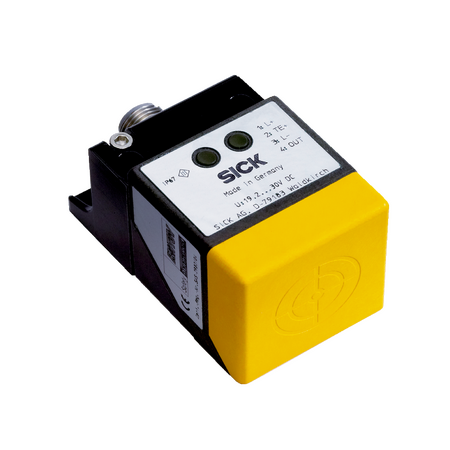

Inductive Safety Switch IN40-E0109K | 2 Safe Outputs | IP67 Rated | Max Switching Delay 50 ms | by SICK
The Inductive Safety Switch IN40-E0109K features an inductive sensor principle with 2 safe outputs, making it ideal for industrial safety monitoring and automation systems. With a maximum switching delay of 50 ms and an IP67 rated enclosure, it ensures reliable performance in demanding environments, supporting a wide range of applications from machine safety to control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Inductive Safety Sensor, Safety Position Switch, Industrial Safety Switch, SICK Safety Sensor
Technical Specifications
- Sensor principle: Inductive
- Number of safe outputs: 2
- Switching delay from state change: Max. 50 ms
- Enable zone: 4 mm to 20 mm
- Assured switch off distance Sar: 45 mm
- Actuation directions: 5
- Active sensor surfaces: 1
- Monitoring time minimum dwell time: ≥ 0.2 s
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 1.0 x 10^-8
- Mission time: 10 years (EN ISO 13849), 20 years extended
- Type: Type 3 (EN ISO 14119)
- Actuator coding level: Uncoded (EN ISO 14119)
- Classification: PDF-M (IEC/EN 60947-5-3)
- Safe series connection: With Flexi Loop (with diagnostics)
- Connection type: Plug connector, M12, 4-pin
- Coupling nut material: Brass
- Display elements: LEDs with power indication and status display
- Protection class: III (EN 50178)
- Supply voltage: 24 V DC (19.2 V DC to 30 V DC)
- Power consumption: 30 mA
- Type of output: Self-monitoring semiconductor outputs (OSSDs)
- Design: Rectangular
- Material: Zinc die cast housing, PPE cover
- Installation type: Non-flush
- Enclosure rating: IP67 (IEC 60529)
- Ambient operating temperature: -25 °C to +60 °C
- Storage temperature: -25 °C to +70 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm (EN 60947-5-3)
- Shock resistance: 30 g, 11 ms (EN 60947-5-3)
- Dimensions (H x L x W): 20mm x 80mm x 40mm
- Weight: 0.22 kg
Key Features
- Inductive sensor principle with 2 safe outputs
- Max switching delay of 50 ms
- Enable zone from 4 mm to 20 mm
- Assured switch off distance of 45 mm
- Supports 5 actuation directions
- LED power indication and status display
- Self-monitoring semiconductor outputs (OSSDs)
- Protection class III (EN 50178)
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25 °C to +60 °C
- Shock resistance of 30 g and vibration resistance compliant with EN 60947-5-3
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and electrical safety standards to ensure compliance and optimal performance.
Applications
- Industrial safety monitoring
- Machine safety systems
- Automation and control systems requiring safe position detection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Low power consumption of 30 mA supports energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IN40-E0109K Inductive Safety Switch is available for immediate purchase, ideal for industrial safety and automation applications.
