Trade Discount 33%

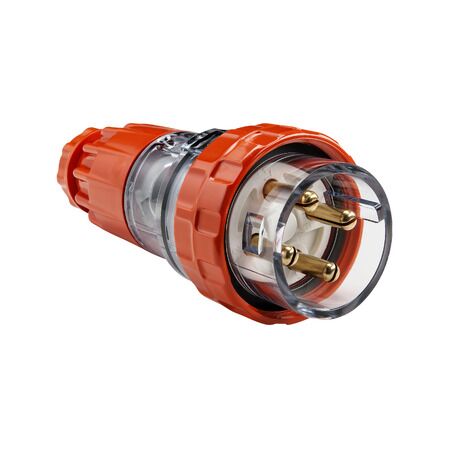

Industrial 4-Pin Plug 32A 500V | IP66 Rated | Easy56 by Clipsal
Industrial 4-pin plug with 32A current and 500V voltage—ideal for small commercial and utility applications. Built for durability, with IP66 protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Easy56, Plug, 4 Pin, 32A, 500V
Brand: Clipsal
SKU: EY56P432
Alternatively Known As: Easy56 Plug, 4 Pin Plug, Industrial Plug, 32A Plug
Technical Specifications
- Pin number: 4 pins
- Rated current: 32A
- Rated operational voltage: 500V
- Connections: screw terminals
- Cable outer diameter: 11...29.5 mm
- Wire stripping length: 10...65 mm
- Cable entry: cable gland
- Material: Polycarbonate housing, brass pins
- Network type: AC
- Network frequency: 50Hz
- Cable cross section: 4...16 mm²
- Dimensions (H x L x W): 78mm x 176mm x 78mm
- Weight: 0.42 kg
Key Features
- 4-pin design with a rated current of 32A and operational voltage of 500V.
- IP66 rated for protection against dust and water.
Professional Installation Requirements
- Professional installation is recommended for optimal safety.
Applications
- Industrial: Suitable for small commercial, utility, and industry applications.
Standards & Compliance
- Complies with AS/NZS 3123 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS directives, reducing harmful substances.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal Easy56 Plug, 4 Pin, 32A, 500V is available now for immediate purchase. Ideal for industrial applications.
