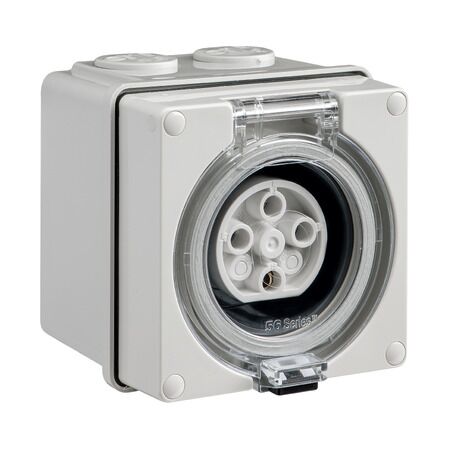

Industrial 4 Pin Socket 20A 500V | IP66 Rated | Surface Mount by Clipsal
Industrial 4 pin socket with 20A current and 500V voltage—ideal for small commercial and utility applications. Built for durability, with IP66 protection and surface mount design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Easy56, Socket, 4 Pin, 20A, 500V
Brand: Clipsal
SKU: EY56SO420
Alternatively Known As: Easy56 Socket, 4 Pin Socket, Clipsal 20A Socket
Technical Specifications
- Rated current: 20A
- Rated operational voltage: 500V
- Mounting mode: Surface mounted
- Connections: Screw terminals for 2.5-6 mm² rigid or stranded cable
- Wire stripping length: 16 mm
- IP Rating: IP66 conforming to AS 60529
- Ambient air temperature for operation: -25 to 75 °C
- Material: Polycarbonate cover, brass pins
- Network frequency: 50 Hz
- Dimensions (H x L x W): 101mm x 101mm x 101mm
- Weight: 0.5 kg
Key Features
- 4 pin socket outlet with a rated current of 20A and operational voltage of 500V.
- IP66 rated for protection against dust and water.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Small commercial and utility applications
Standards & Compliance
- Complies with AS/NZS 3123 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS directives and made with recycled materials.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal Easy56 Socket, 4 Pin, 20A, 500V is available now for immediate purchase. Ideal for industrial and small commercial applications.
