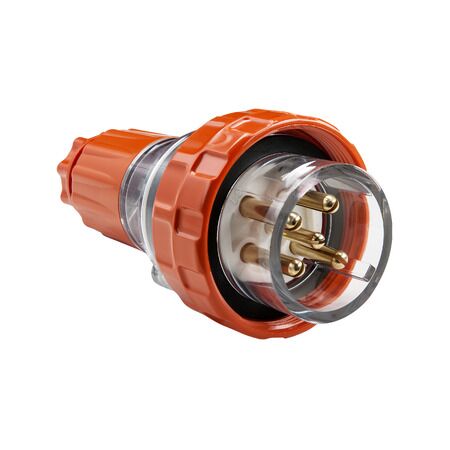

Industrial 5 Pin Plug | 10A 500V | IP66 Rated | Polycarbonate by Clipsal

BRAND: Clipsal
SKU: EY56P510
$50.30 List price: $75.40
+ −
30 Days Return Delivery Options
Industrial plug with 5 pin configuration and 10A, 500V rating—ideal for utility and small commercial applications. Built for durability, with IP66 protection and polycarbonate housing.

Product Name/Title: Easy56, Plug, 5 Pin, 10A, 500V

Brand: Clipsal

SKU: EY56P510

Alternatively Known As: Easy56 Plug, 5 Pin Plug, Industrial Plug

Technical Specifications
  • Rated current: 10A
  • Rated operational voltage: 500V
  • Pin number: 5 pins
  • Connections: screw terminals
  • Cable outer diameter: 7...16 mm
  • Wire stripping length: 10...35 mm
  • Cable entry: cable gland
  • Material: Polycarbonate housing, Brass pins
  • Ambient air temperature for operation: -25...75 °C
  • Network frequency: 50 Hz
  • Cable cross section: 1...4 mm²
  • Dimensions (H x L x W): 78mm x 152mm x 78mm
  • Weight: 0.298 kg
Key Features
  • 5 pin configuration for versatile connections.
  • Rated for 10A and 500V for robust performance.
  • IP66 rated for protection against dust and water.
Professional Installation Requirements
  • Professional installation is recommended for optimal safety.
Applications
  • Industrial: Utility and small commercial applications
Standards & Compliance
  • Complies with AS/NZS 3123 for safety and performance standards.
Environmental Benefits
  • Compliant with RoHS directives for reduced environmental impact.
Warranty Information

Standard warranty applies.

Available Now

The Clipsal Easy56 Plug, 5 Pin, 10A, 500V is available now for immediate purchase. Ideal for industrial and small commercial applications.

EY56P510 (EY56P510, 218 Kb) [Download]
