Industrial 6P Plug 425A | IP55 Rated | Quick Release & Stainless Steel | Ausproof

BRAND: Ausproof

SKU: RS2191

$1,611.50 List price: $2,001.50

+ −

30 Days Return Delivery Options

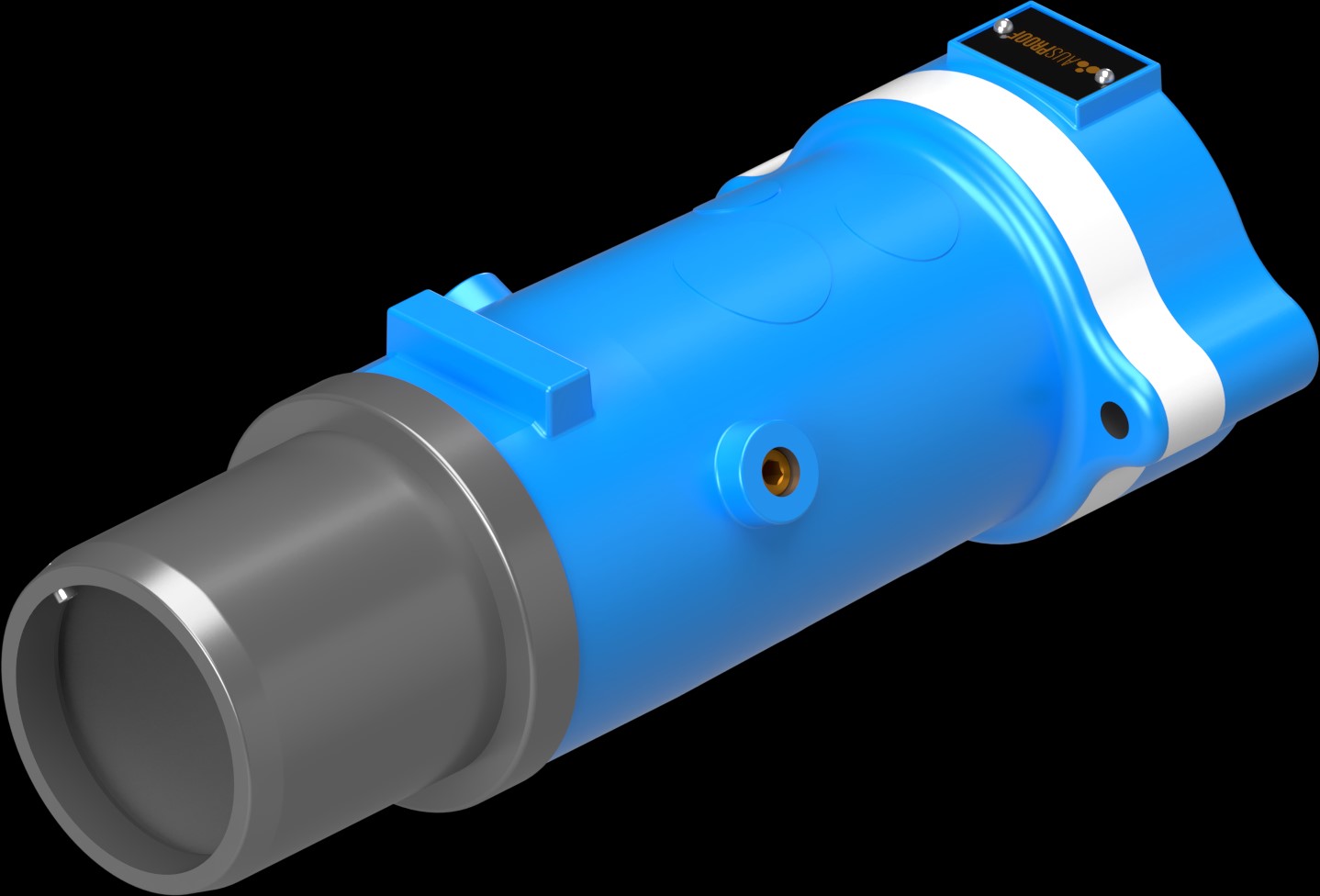

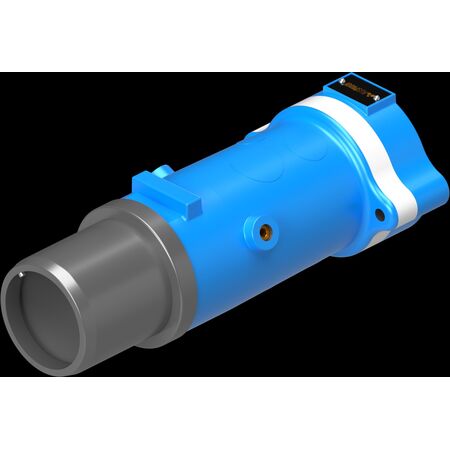

The PL 1100V 425A 6P Plug is designed for hazardous environments, featuring IP55 protection, quick release functionality, and durable stainless steel construction. Ideal for mining and tunnelling applications, it ensures reliable performance and safety in demanding conditions.

Description

Product Name/Title: PL 1100V 425A 6P Plug (0) 150-C 70-75-G (245.1)

Brand: Ausproof

SKU: RS2191

Alternatively Known As: PL Range Plug, Ex-certified Industrial Plug, Mining Plug 425A, Stainless Steel 6 Pin Plug

Technical Specifications

Voltage Range: 660V to 3300V
Current Rating: 300A to 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
AC HV Withstand (Phase): 8.6kV for one minute
AC HV Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Weight: 9.0 kg
Dimensions (H x L x W): 150mm x 75mm x 245mm
Weight: 9.0 kg

Key Features

Quick Release
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Installation should be performed by qualified personnel trained in hazardous area electrical equipment installation to ensure compliance and safety.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces need for frequent replacements.
Flameproof repairable design minimizes waste by allowing on-site repairs.

Warranty Information

Warranty details available upon request from Ausproof.

Available Now

The Ausproof PL 1100V 425A 6P Plug is available for immediate purchase, ideal for mining, tunnelling, and hazardous commercial applications.
