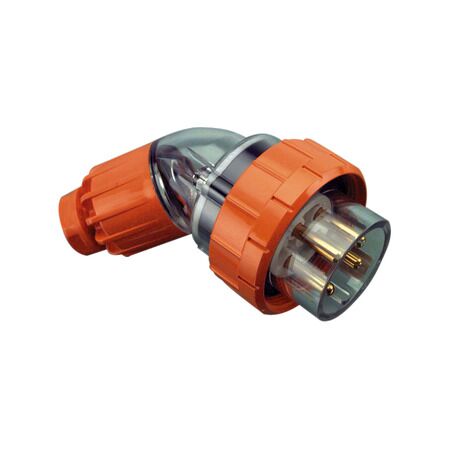

Industrial Angled Plug 16A 500V | IP66 Rated | Electric Orange by Clipsal

BRAND: Clipsal
SKU: 56PA416K-EO
$170.70 List price: $256.00
+ −
30 Days Return Delivery Options
Industrial angled plug with 16A current and 500V voltage—ideal for machinery and equipment. Built for robust connections, with IP66 protection and electric orange design.

Product Name/Title: Clipsal - 56 Series, Angled Plug, 16A, 500V, IP66, Unique Key Electric Orange

Brand: Clipsal

SKU: 56PA416K-EO

Alternatively Known As: Industrial Plug, 16A Plug, IP66 Plug, Angled Power Plug

Technical Specifications
  • Rated current: 16A
  • Rated operational voltage: 500V AC 50Hz
  • Material: Polycarbonate housing, brass pins
  • IP Rating: IP66
  • Connections: Screw terminal 1-6 mm²
  • Cable entry: Cable gland
  • Poles description: 3P + E
  • Thread type: M25
  • Ambient air temperature for operation: -25...75 °C
  • Dimensions (H x L x W): 78mm x 158mm x 126.5mm
  • Weight: 0.32 kg
Key Features
  • IP66 rated for protection against dust and water ingress.
  • Rated current of 16A and operational voltage of 500V AC.
  • Screw terminal connections for secure wiring.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power supply for machinery and equipment
  • Commercial: Small commercial applications requiring robust connections
Standards & Compliance
  • Complies with AS/NZS 3123 for safety and performance standards.
Environmental Benefits
  • Compliant with RoHS directives, ensuring reduced environmental impact.
Warranty Information

Standard warranty applies.

Available Now

The Clipsal 56 Series Angled Plug is available now for immediate purchase. Ideal for industrial and small commercial applications.

56PA416K-EO (56PA416K-EO, 215 Kb) [Download]
