Industrial Angled Plug 20A 500V | IP66 Rated | Electric Orange by Clipsal
Industrial angled plug with 20A and 500V rating—ideal for machinery and equipment power supply. Built for industrial and commercial use, with IP66 protection and secure screw terminal connections.
Sign in
Please login to continue to your account.

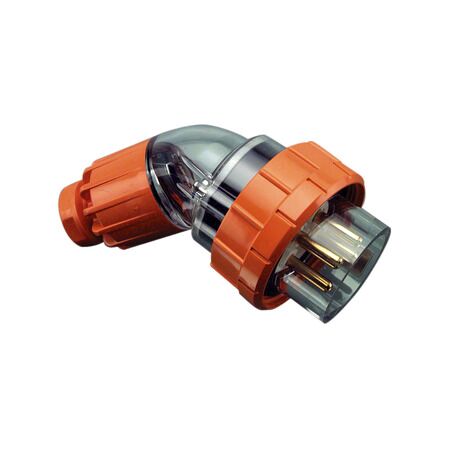

Product Name/Title: Clipsal - 56 Series, Angled Plug, IP66, 500V 20A - 4 Round PinsElectric Orange
Brand: Clipsal
SKU: 56PA420-EO
Alternatively Known As: Industrial Angled Plug, 56 Series Plug, IP66 Plug
- Rated current: 20A
- Rated operational voltage: 500V AC 50Hz
- Material: Polycarbonate housing, brass pins
- IP Rating: IP66
- Cable entry: Cable gland
- Poles description: 3P + E
- Wire stripping length: 45mm
- Dimensions (H x L x W): 78mm x 158mm x 126.5mm
- Weight: 0.32 kg
- IP66 rated for protection against dust and water
- Rated for 20A and 500V AC operation
- Screw terminal connections for secure wiring
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Power supply for machinery and equipment
- Commercial: Small commercial and utility applications
- Complies with AS/NZS 3123 for safety and performance standards.
- Compliant with RoHS directives, reducing hazardous substances.
1 year warranty against manufacturing defects.
The Clipsal 56 Series Angled Plug is available now for immediate purchase. Ideal for industrial and commercial power supply applications.
