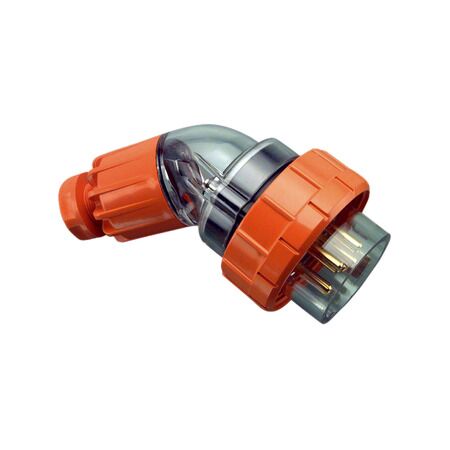

Industrial Angled Plug 500V 10A | IP66 Rated | 5 Round Pins | Electric Orange by Clipsal
Industrial angled plug with 500V 10A rating and IP66 protection—ideal for small commercial and utility applications. Built for durability, with secure screw terminal connections and electric orange finish.
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Angled Plug, IP66, 500V 10A - 5 Round Pins Electric Orange
Brand: Clipsal
SKU: 56PA510-RO
Alternatively Known As: Industrial Angled Plug, 56 Series Plug, IP66 Plug
- Rated current: 10A
- Rated operational voltage: 500V AC 50Hz
- Material: Polycarbonate housing, brass pins
- IP Rating: IP66
- Cable entry: Cable gland
- Poles description: 3P + N + E
- Wire stripping length: 12 mm to 45 mm
- Dimensions (H x L x W): 78mm x 158mm x 126.5mm
- Weight: 0.32 kg
- IP66 rated for protection against dust and water.
- Rated operational voltage of 500V AC and current of 10A.
- Screw terminal connections for secure wiring.
- Professional installation is recommended for optimal safety.
- Industrial: Power supply for small commercial and utility applications.
- Complies with AS/NZS 3123 for safety and performance standards.
- Compliant with RoHS directives, ensuring reduced environmental impact.
Standard warranty applies.
The Clipsal 56 Series Angled Plug is available now for immediate purchase. Ideal for industrial power supply applications.
