Industrial Angled Plug 50A 500V | IP66 Rated | 4 Round Pins | Electric Orange by Clipsal
Industrial angled plug with IP66 rating and 50A, 500V capacity—ideal for small commercial and utility applications. Built for secure connections, with screw terminals and durable polycarbonate housing.
Sign in
Please login to continue to your account.

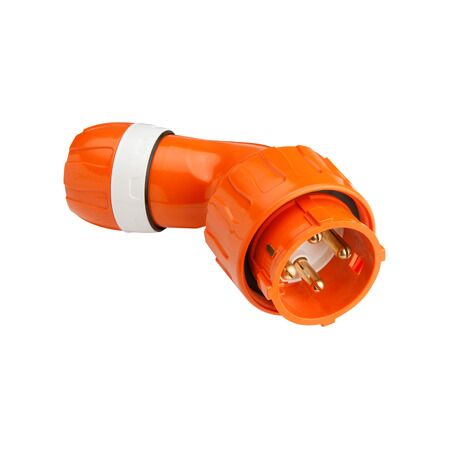

Product Name/Title: Clipsal - 56 Series, Angled Plug, IP66, 500V 50A - 4 Round Pins Electric Orange
Brand: Clipsal
SKU: 56PA450-EO
Alternatively Known As: Industrial Angled Plug, 56 Series Plug, IP66 Plug
- Rated current: 50A
- Rated operational voltage: 500V AC 50Hz
- Material: Polycarbonate housing, brass pins
- Cable entry: Cable gland
- Poles description: 3P + E
- Thread type: M40
- Wire stripping length: 20mm - 50mm
- Dimensions (H x L x W): 78mm x 168mm x 130mm
- Weight: 0.5 kg
- IP66 rated for protection against dust and water.
- Rated for 50A and 500V AC, suitable for industrial use.
- Screw terminal connections for secure wiring.
- Professional installation is recommended for optimal safety and compliance.
- Industrial: Power supply for small commercial and utility applications.
- Complies with AS/NZS 3123 for safety and performance.
- Compliant with RoHS directives, reducing hazardous substances.
Standard warranty applies.
The Clipsal 56 Series Angled Plug is available now for immediate purchase. Ideal for industrial applications requiring reliable power supply.
