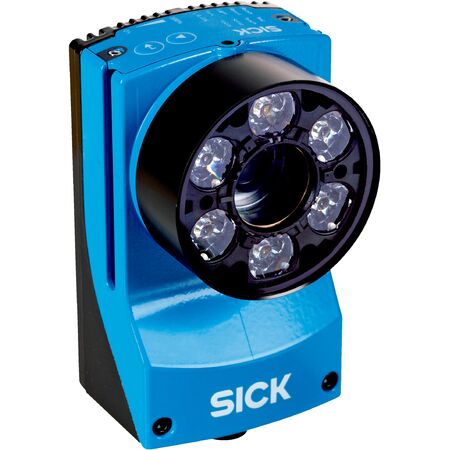

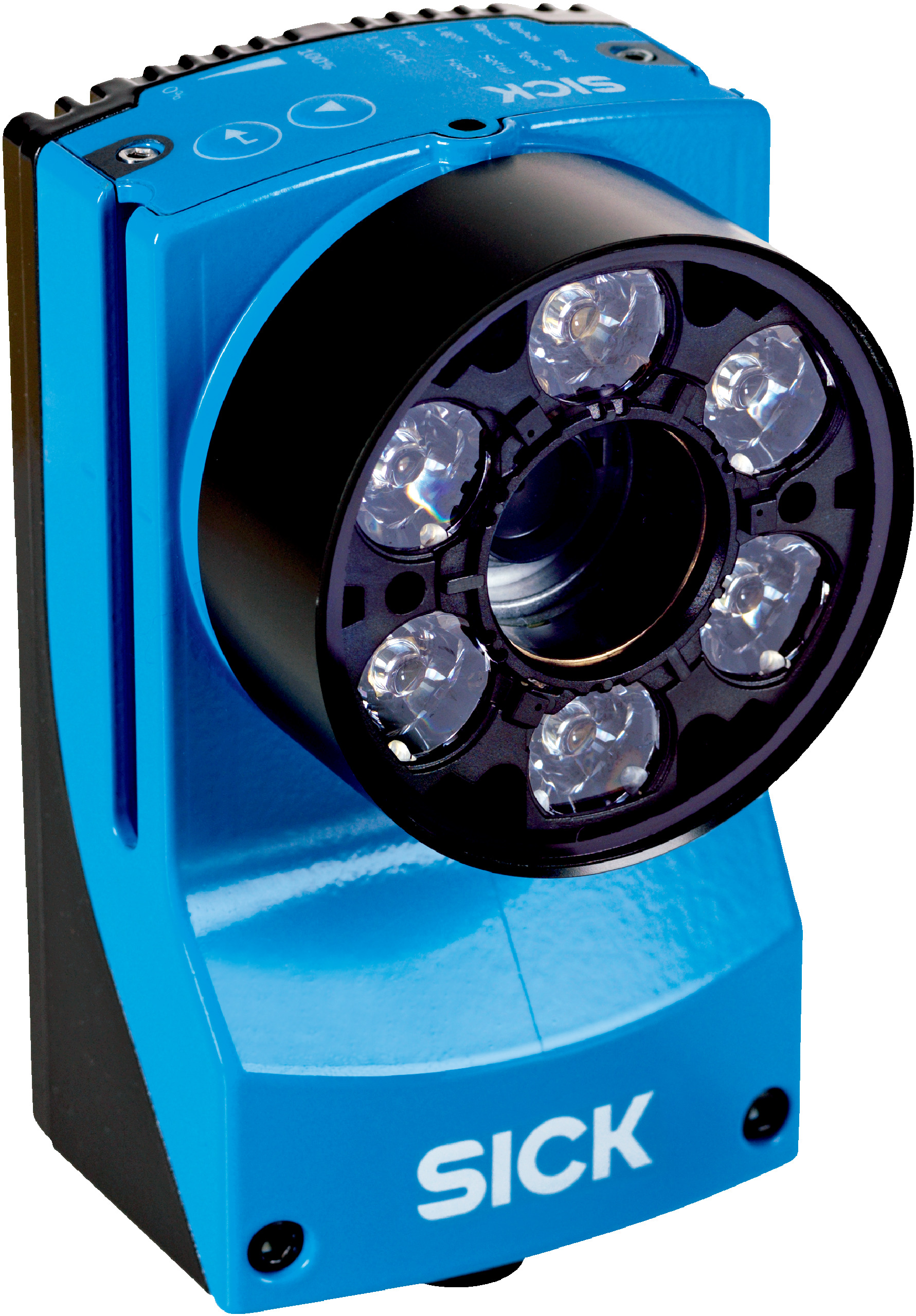

Industrial Barcode Reader | 1.9 Megapixel CMOS Sensor | IP67 Rated | Adjustable Focus | by SICK
The Industrial Barcode Reader features a 1.9 Megapixel CMOS sensor and adjustable manual optical focus, making it perfect for industrial automation and logistics applications. With integrated white LED illumination and robust IP67-rated housing, it ensures reliable performance in harsh environments, supporting a wide range of 1D and 2D codes for efficient package identification and quality control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1600 px x 1200 px (1.9 Mpixel)
- Optical focus: Adjustable (manual)
- Illumination: Integrated white LED
- Feedback spot: Green (525 nm ± 15 nm) and Red (630 nm ± 20 nm) LEDs
- Alignment aid: Red laser (630 nm ... 680 nm), Class 1 laser
- Lens: S-mount, 1/1.8" optical format, 25 mm focal length, aperture 8
- Scanning frequency: ≤ 50 Hz at 1.9 megapixels
- Code resolution: ≥ 0.1 mm
- Working range: 50 mm to 2200 mm
- Connection types: M12 17-pin plug, M12 8-pin socket (Ethernet 1 Gbit/s), M8 4-pin socket (USB), M12 4-pin socket (illumination control)
- Supply voltage: 12 V DC to 24 V DC ± 20%
- Power consumption: Typical 10 W ± 20%
- Output current: ≤ 100 mA
- Housing material: Aluminum die cast
- Window material: Plastic
- Enclosure rating: IP67
- Electrical safety: EN 60950-1
- Readable code types: 1D, 2D, stacked, direct-marked codes
- Supported barcodes: GS1-128, UPC, EAN, Code 39, Code 128, Pharmacode, GS1 DataBar, Codabar, USPS, Australian Post, Dutch KIX Post, Royal Mail, Swedish Post
- Supported 2D codes: Data Matrix ECC200, GS1 Data-Matrix, MaxiCode, QR code
- Stacked codes: PDF417
- Code qualification standards: ISO/IEC 16022, 15415, 18004
- Interfaces: Ethernet TCP/IP, PROFINET, EtherNet/IP, Serial RS-232/422, CAN, PROFIBUS DP (optional)
- Digital inputs: 4
- Digital outputs: 6
- Indicators: 11 LEDs, beeper
- Control elements: 2 buttons
- Operator interface: Web server
- Configuration software: SOPAS ET
- Memory card: Micro SD up to 32 GB
- Ambient operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Relative humidity: 90%, non-condensing
- EMC: EN 61000-6-2, EN 61000-6-4
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 59mm x 108mm x 63mm
- Weight: 0.45 kg
Key Features
- Complete device with adjustable manual optical focus
- CMOS monochrome sensor with 1.9 Megapixel resolution (1600 x 1200 px)
- Integrated white LED illumination with visible feedback spots in green and red
- Laser alignment aid with Class 1 laser safety compliance
- Supports reading of 1D, 2D, and stacked codes including GS1, QR, Data Matrix, PDF417
- Multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP, Serial, CAN, and PROFIBUS DP
- Robust aluminum die cast housing with IP67 rating for harsh environments
- Operating temperature range from 0°C to +50°C with high vibration and shock resistance
Professional Installation Requirements
- Installation and configuration by qualified personnel recommended to ensure optimal performance and compliance with safety standards.
Applications
- Industrial automation and manufacturing for barcode and code reading
- Logistics and warehousing for package and product identification
- Quality control and traceability in production lines
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 rated housing reduces need for frequent replacements
- Energy-efficient LED illumination minimizes power consumption
- Supports digital data storage and transmission reducing paper waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK official warranty terms.
Available Now
The SICK V2D632D-MWSFB4 barcode reader is available for immediate purchase, ideal for industrial automation, logistics, and quality control applications.
