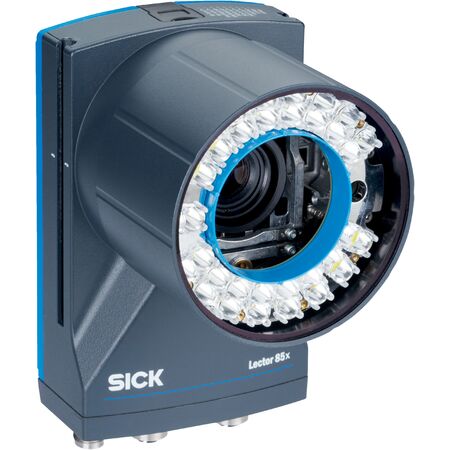

Industrial Barcode Reader | 12MP CMOS Sensor | Dynamic Focus Control | IP65 Rated | by SICK
The Industrial Barcode Reader with a 12MP CMOS sensor and dynamic focus control is perfect for indoor industrial code reading. Designed for manufacturing and logistics applications, it features integrated red LED illumination and multiple connectivity options, ensuring reliable performance in automated quality control and traceability systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 4096 px x 3008 px (12 MP)
- Illumination: Integrated red LED, 660 nm ± 20 nm, 32 LEDs
- Optical focus: Dynamic focus control
- Aperture angle: 47° illumination
- Laser class: Class 1, compliant with EN 60825-1:2014+A11:2021
- Focal length: 25 mm, Aperture: 5.6
- Scanning frequency: 15 Hz at 12 MP resolution
- Code resolution: ≥ 0.1 mm
- Working range: 500 mm to 2400 mm
- Connection types: Multiple M12 connectors for power, CAN, serial, Ethernet, external illumination, and I/O
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 27 W
- Current consumption: Max 2 A
- Housing material: Aluminum die cast, color anthracite gray (RAL 7016)
- Window material: 2 mm thick glass with scratch-proof coating
- Enclosure rating: IP65
- Electrical safety: EN 61010:2010 / EN 61010-1:2010/A1:2019/AC:2019-04
- MTBF: 100,000 hours
- Readable code structures: 1D, 2D, Stacked codes
- Supported barcode types: Code 128, GS1-128, EAN 8/13, UPC-A/E, Interleaved 2 of 5, Codabar, Code 93, Postal code
- Supported 2D codes: Data Matrix ECC200, GS1 Data-Matrix, MaxiCode, QR code, Aztec
- Supported stacked codes: PDF417
- Data transmission rates: 10/100/1000 Mbit/s Ethernet, 10/100 Mbit/s PROFINET and EtherNet/IP™, 500 kbit/s CAN, 1.2 kBaud to 115.2 kBaud Serial, 480 Mbit/s USB 2.0
- Ambient operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Permissible relative humidity: ≤ 90%, non-condensing
- Electromagnetic compatibility: IEC 61000-6-2:2016 / IEC 61000-6-4:2018
- Vibration resistance: EN 60068-2-6:2007, EN 60068-2-64:2019
- Shock resistance: EN 60068-2-27:2008
- Altitude: < 5,000 m
- Dimensions (H x L x W): 106mm x 143mm x 90mm
- Weight: 0.975 kg
Key Features
- Dynamic focus control with CMOS monochrome sensor
- High sensor resolution of 4096 px x 3008 px (12 Megapixels)
- Integrated red LED illumination (660 nm) with 32 LEDs
- Risk group 1 low risk LED and laser safety compliant
- Multiple connectivity options including Ethernet, PROFINET, EtherNet/IP™, CAN, Serial, and USB
- Robust aluminum die cast housing with IP65 rating
- Scratch-proof 2 mm thick glass window
- Supports a wide range of 1D, 2D, and stacked code types
- Configurable digital inputs/outputs and advanced network management
- Operating temperature range 0 °C to +50 °C
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial automation and electrical safety standards to ensure proper integration and compliance.
Applications
- Indoor area industrial code reading
- Barcode and 2D code scanning in manufacturing and logistics
- Automated quality control and traceability systems
Standards & Compliance
- AS/NZS 61010 – Safety requirements for electrical equipment for measurement, control, and laboratory use
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D8512R-1MEMEXAF2SXXXX industrial code reader is available for immediate purchase, ideal for indoor industrial barcode and 2D code scanning applications.
