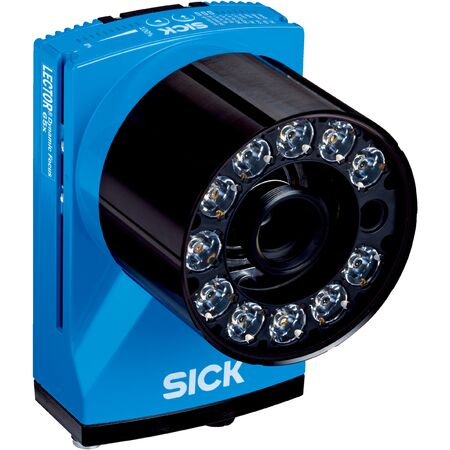

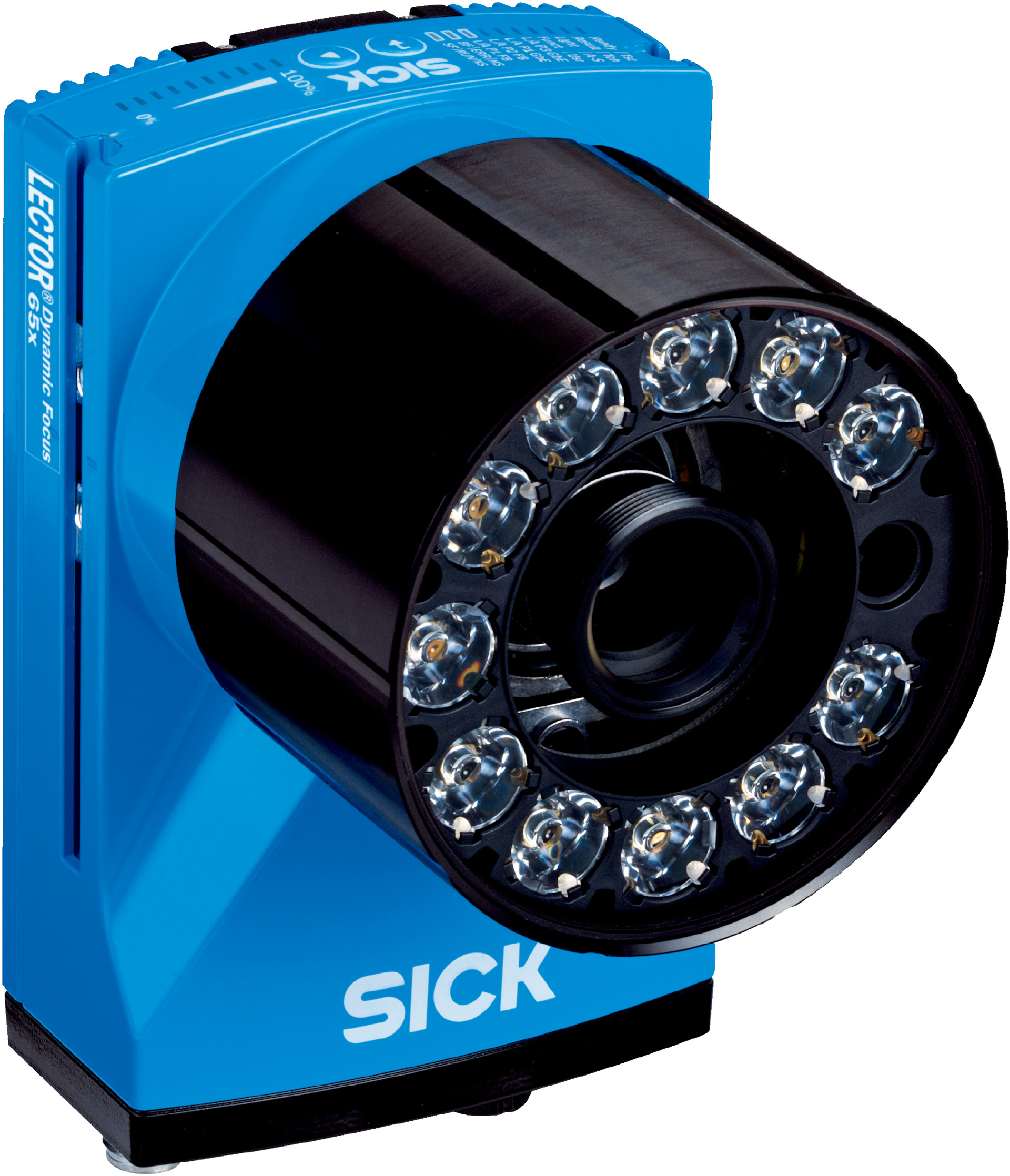

Industrial Barcode Reader | 2048 x 2048 Resolution | Integrated Blue LED & Red Laser Alignment | IP65 Rated | by SICK
The Industrial Barcode Reader is designed for high-performance scanning with a 2048 x 2048 resolution and integrated blue LED illumination. Ideal for industrial automation, logistics, and quality control, it features a robust aluminum housing with an IP65 rating, ensuring durability in demanding environments. With multiple communication interfaces and a wide working range, this device is perfect for efficient barcode and 2D code reading.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 2048 x 2048 px (4.2 Mpixel)
- Illumination: Integrated blue LED, 455 nm ± 20 nm
- Feedback spot: Green LED, 525 nm ± 15 nm
- Alignment aid: Red laser, 630-680 nm, Laser class 1
- Lens: C-mount, 1" optical format, 40 mm focal length, aperture 8
- Scanning frequency: 40 Hz
- Code resolution: ≥ 0.12 mm
- Working range: 500 mm to 2600 mm
- Connection types: 1x M12 17-pin plug, 2x M12 8-pin sockets, 1x M8 4-pin socket
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 20 W ± 20%
- Output current: ≤ 100 mA
- Housing material: Aluminum die cast, light blue (RAL 5012)
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- Electrical safety: EN 60950-1
- Weight: 963 g
- MTBF: 100,000 hours
- Readable code types: 1D, stacked, 2D codes including GS1-128, UPC, QR code, Data Matrix ECC200, PDF417
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, Serial (RS-232, RS-422), CAN, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 6
- Operator interface: Web server
- Configuration software: SOPAS ET
- Memory card: Optional microSD up to 16 GB
- Ambient operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Relative humidity: 90%, non-condensing
- EMC: EN 61000-6-2, EN 61000-6-3
- Vibration and shock resistance: EN 60068-2-6
- Dimensions (H x L x W): 106mm x 143mm x 90mm
- Weight: 0.96 kg
Key Features
- Dynamic focus control with CMOS monochrome sensor
- High sensor resolution of 2048 x 2048 pixels (4.2 Megapixel)
- Integrated blue LED illumination (455 nm) and green feedback LED
- Red laser alignment aid with laser class 1 safety
- C-mount lens with 40 mm focal length and aperture 8
- Scanning frequency of 40 Hz with 4 megapixel resolution
- Wide working range from 500 mm to 2600 mm
- Multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP™, Serial, CAN, and PROFIBUS DP
- Robust aluminum die cast housing with IP65 rating
- Supports reading of 1D, 2D, and stacked codes with ISO/IEC code qualification
- Internal image storage of 512 MB and optional microSD card support
- Web server operator interface and SOPAS ET configuration software
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial automation and electrical safety standards.
Applications
- Industrial automation for barcode and 2D code reading
- Logistics and warehouse management
- Quality control and product tracking
- Manufacturing process monitoring
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D654R-MEBKA6 is available for immediate purchase, ideal for industrial automation and barcode scanning applications.
