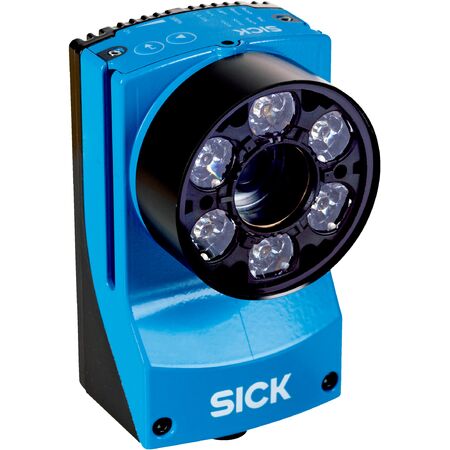

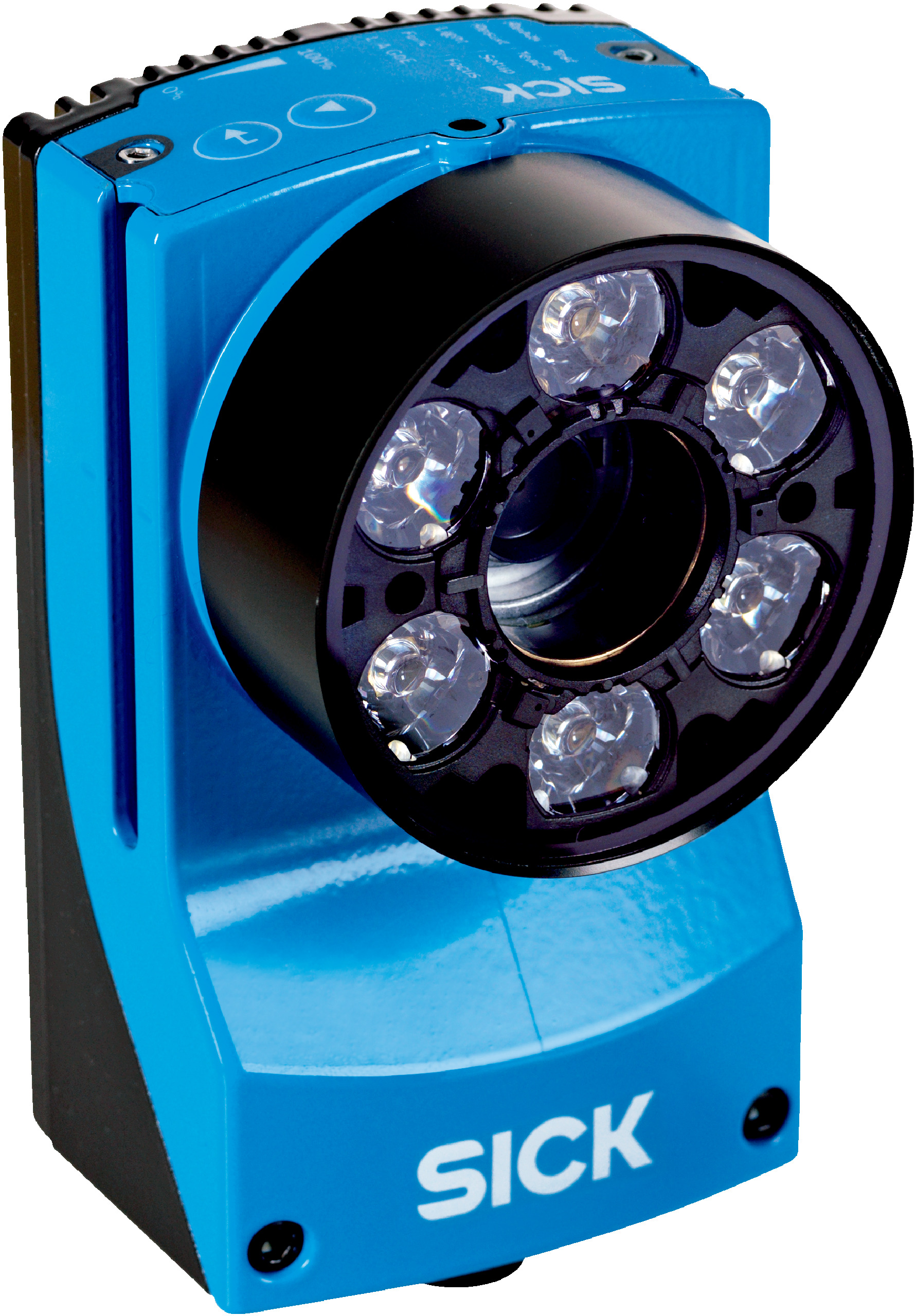

Industrial Barcode Reader | CMOS Monochrome 1.9MP | Adjustable Focus & IP67 Rated | by SICK
The Industrial Barcode Reader is equipped with a CMOS monochrome sensor offering 1.9 Megapixel resolution, adjustable manual optical focus, and integrated white LED illumination. Perfect for industrial automation, logistics, and quality control, this scanner reads 1D, 2D, and stacked codes with multiple communication interfaces, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 1600 x 1200 px (1.9 Megapixel)
- Optical focus: Adjustable manual
- Illumination: Integrated white LED
- Feedback spot: Green (525 nm ±15 nm) and Red (630 nm ±20 nm) LEDs
- Laser alignment aid: Red laser, Class 1 (630-680 nm)
- Focal length: 17.5 mm, Aperture: 8, Optical format: 1/1.8"
- Scanning frequency: ≤ 50 Hz at full resolution
- Code resolution: ≥ 0.1 mm
- Working range: 50 mm to 2200 mm
- Connection types: M12 17-pin plug, M12 8-pin socket (Ethernet 1 Gbit/s), M8 4-pin socket (USB), M12 4-pin socket (illumination control)
- Supply voltage: 12 V DC to 24 V DC ±20%
- Power consumption: Typical 10 W ±20%
- Output current: ≤ 100 mA
- Housing material: Aluminum die cast, Window material: Plastic
- Enclosure rating: IP67
- Electrical safety: EN 60950-1
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP, Serial (RS-232, RS-422), CAN, PROFIBUS DP (optional)
- Digital inputs: 4, Digital outputs: 6, Configurable inputs and outputs
- Operator interface: Web server, Configuration software: SOPAS ET
- Memory card: Micro SD up to 32 GB
- Ambient operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Relative humidity: 90%, non-condensing
- Dimensions (H x L x W): 59mm x 108mm x 63mm
- Weight: 0.49 kg
Key Features
- Adjustable manual optical focus
- CMOS monochrome sensor with 1.9 Megapixel resolution (1600 x 1200 px)
- Integrated white LED illumination
- Visible green and red LED feedback spots
- Red laser alignment aid (Class 1 laser)
- Reads 1D, 2D, and stacked codes including GS1-128, QR code, Data Matrix ECC200, PDF417
- Multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP, Serial, CAN, PROFIBUS DP
- IP67 rated aluminum die cast housing with plastic window
- Operating temperature range 0°C to +50°C
- Supports image and data storage via microSD card and FTP
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for barcode and 2D code reading
- Logistics and warehouse management
- Manufacturing quality control
- Packaging and labeling verification
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 rated housing reduces need for frequent replacements
- Energy-efficient LED illumination minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D632R-MKSEB8 code reader is available for immediate purchase, ideal for industrial and manufacturing environments requiring reliable barcode and 2D code scanning.
