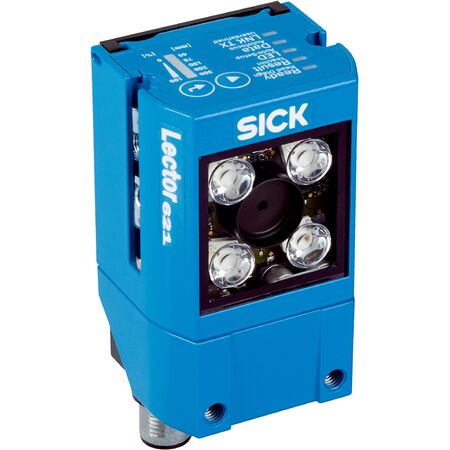

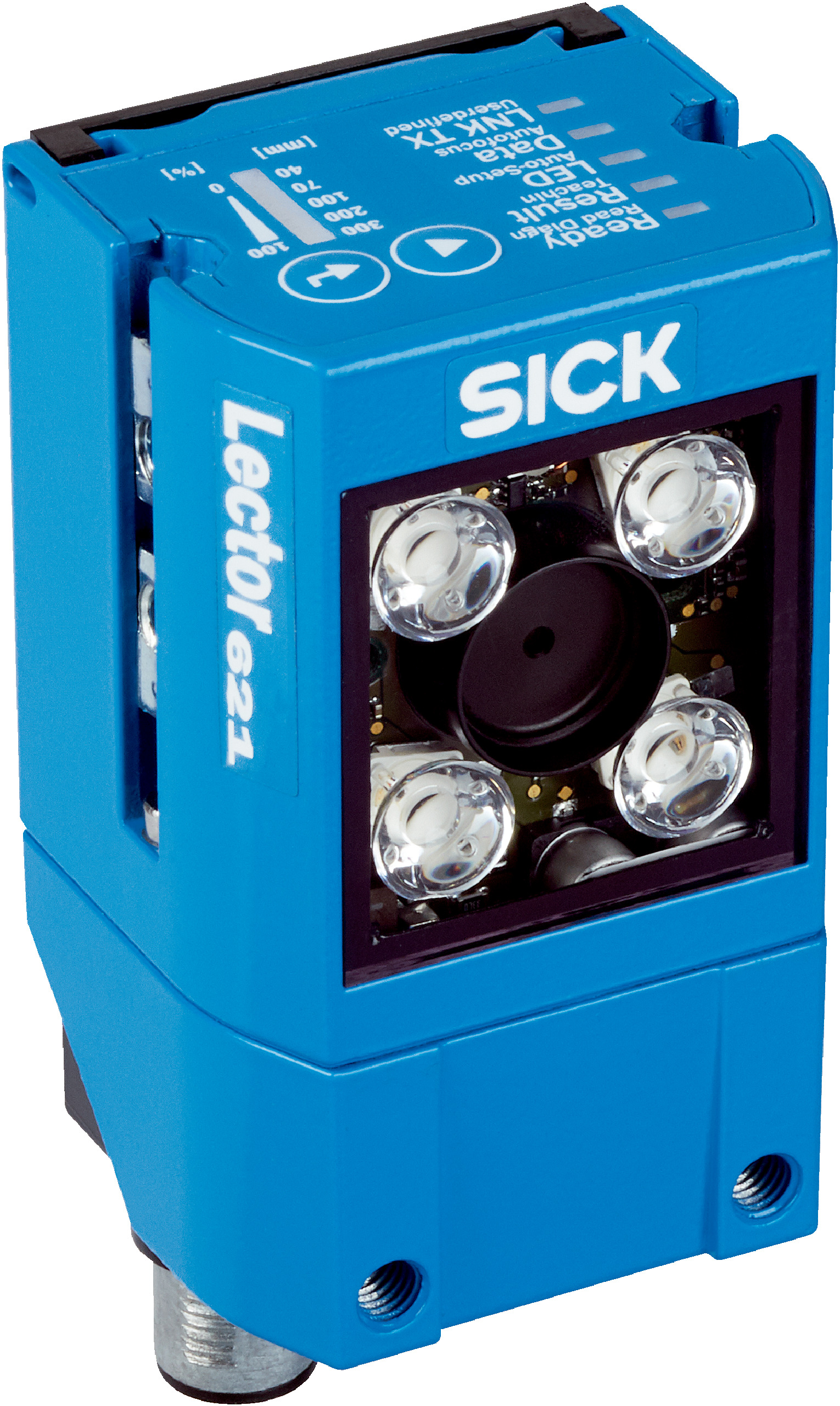

Industrial Barcode Reader V2D621R-2MSFFB5 | CMOS 1.3MP Sensor | IP65 Rated | by SICK
The Industrial Barcode Reader V2D621R-2MSFFB5 features a high-resolution CMOS monochrome sensor with 1.3 Megapixel clarity, making it perfect for industrial automation and logistics applications. With integrated red and blue LED illumination and a laser alignment aid, it efficiently reads 1D and 2D codes, ensuring accuracy in manufacturing process control and quality assurance. Built to withstand harsh environments, its IP65 rated aluminum housing guarantees durability and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 1280 px x 1024 px (1.3 Mpixel)
- Illumination: Integrated red (617 nm ±15 nm) and blue (470 nm ±15 nm) LEDs
- Laser alignment aid: Red laser 630 nm to 680 nm, Class 1
- Scanning frequency: 50 Hz
- Code resolution: 0.25 mm
- Working range: 300 mm to 1500 mm
- Connection types: 1 x M12 17-pin male, 1 x M12 4-pin Ethernet female
- Supply voltage: 12 V DC to 24 V DC ±20%
- Power consumption: Typical 4 W
- Housing material: Aluminum die cast, light blue (RAL 5012)
- Window material: Plastic
- Enclosure rating: IP65
- Protection class: III
- Electrical safety: EN 62368
- MTBF: 75,000 hours
- Readable code structures: 1D, stacked, 2D codes
- Supported bar code types: GS1-128, UPC, EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Code 39, Code 128, Codabar, Code 32, Code 93, Plessey, MSI/Plessey, Telepen, postal codes
- Supported 2D code types: Data Matrix ECC200, GS1 Data-Matrix, PDF417, QR code, MaxiCode
- Data transmission rates: Ethernet 10/100 Mbit/s, CAN 20 kbit/s to 1 Mbit/s, Serial 0.3 kBaud to 115.2 kBaud
- Ambient operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Permissible relative humidity: 90%, non-condensing
- Electromagnetic compatibility: EN 61000-6-2, EN 61000-6-4
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 35.6mm x 71mm x 43mm
- Weight: 0.17 kg
Key Features
- Complete device with teach auto focus
- CMOS monochrome sensor with 1.3 Megapixel resolution (1280 x 1024 px)
- Integrated red and blue LED illumination
- Laser alignment aid with red laser class 1
- Reads 1D, stacked, and 2D codes including GS1-128, QR code, Data Matrix ECC200
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP, EtherCAT, Serial, CAN, CANopen, PROFIBUS DP
- IP65 rated aluminum die cast housing with plastic window
- Operating temperature range 0°C to +50°C
- Supports image and data storage via microSD and FTP
- 16 LEDs for optical indicators and acoustic beeper
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for barcode and 2D code reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and traceability systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption at approximately 4 W reduces energy usage
- Durable IP65 housing extends product life and reduces waste
- Supports digital data transmission reducing paper usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK V2D621R-2MSFFB5 is available for immediate purchase, ideal for industrial automation and barcode scanning applications.
