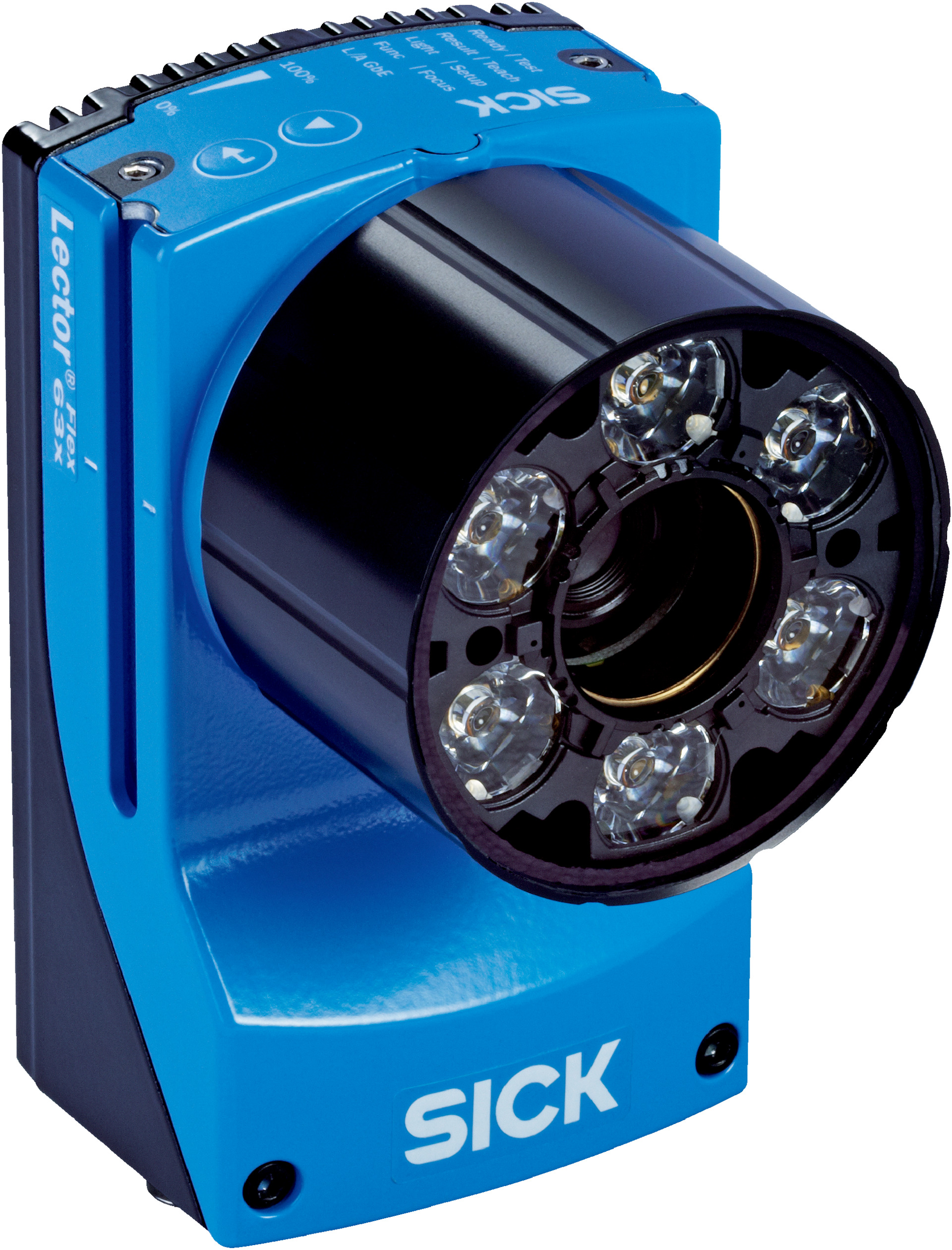

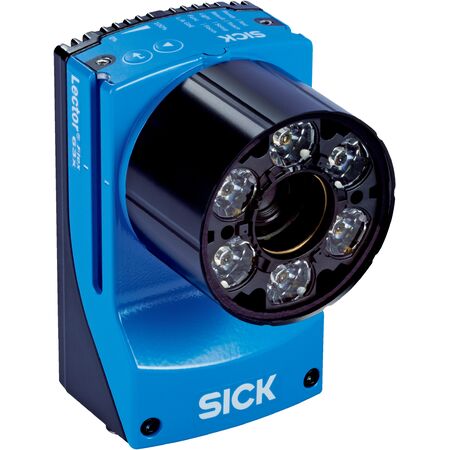

Industrial Barcode Reader V2D632R-MWMFB4 | CMOS 1.9 Mpixel | IP67 Rated | Adjustable Focus | by SICK
The Industrial Barcode Reader V2D632R-MWMFB4 features a high-resolution CMOS monochrome sensor with 1.9 Mpixel clarity and adjustable manual optical focus. Perfect for industrial automation and logistics, this robust scanner supports 1D and 2D code reading, ensuring reliable performance in harsh environments with its IP67 rating. With integrated LED illumination and multiple communication interfaces, it’s designed for seamless integration into your operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 1,600 px x 1,200 px (1.9 Mpixel)
- Optical focus: Adjustable manual
- Illumination: Integrated white LED
- Feedback spot: Green (525 nm ±15 nm) and Red (630 nm ±20 nm) LEDs
- Alignment aid: Red laser (630 nm to 680 nm), Class 1 laser
- Lens: C-mount (compact), 1/1.8" optical format, 25 mm focal length, aperture 8
- Scanning frequency: ≤ 50 Hz at 1.9 megapixels
- Code resolution: ≥ 0.1 mm
- Working range: 50 mm to 2,200 mm
- Connection types: M12 17-pin plug, M12 8-pin socket (Ethernet 1 Gbit/s), M8 4-pin socket (USB), M12 4-pin socket (illumination control)
- Supply voltage: 12 V DC to 24 V DC ±20%
- Power consumption: Typically 10 W ±20%
- Output current: ≤ 100 mA
- Housing material: Aluminum die cast
- Window material: Plastic
- Enclosure rating: IP67
- Electrical safety: EN 60950-1
- Readable code types: 1D, stacked, 2D codes including GS1-128, QR code, Data Matrix ECC200, PDF417
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, Serial (RS-232/422), CAN, PROFIBUS DP (optional)
- Digital inputs: 4; Digital outputs: 6; Configurable inputs and outputs
- Operator interface: Web server, 2 buttons
- Configuration software: SOPAS ET
- Memory card: Micro SD up to 32 GB
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- EMC: EN 61000-6-2, EN 61000-6-4
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 74mm x 108mm x 63mm
- Weight: 0.59 kg
Key Features
- Complete device with adjustable manual optical focus
- CMOS monochrome sensor with 1.9 Megapixel resolution (1600 x 1200 px)
- Integrated white LED illumination with visible green and red feedback spots
- Laser alignment aid with Class 1 laser safety compliance
- Supports reading of 1D, 2D, and stacked code types including GS1-128, QR code, Data Matrix ECC200, PDF417
- Multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP™, Serial (RS-232/422), CAN, and PROFIBUS DP
- Robust aluminum die-cast housing with IP67 rating for harsh environments
- Operating temperature range from 0°C to +50°C with high vibration and shock resistance
- Configurable digital inputs and outputs with extensive operator interface options
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards to ensure proper setup and compliance.
Applications
- Industrial automation and manufacturing for barcode and 2D code reading
- Logistics and warehousing for package and product tracking
- Quality control and inspection systems
- Material handling and sorting systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 rated housing reduces need for frequent replacements
- Energy-efficient LED illumination minimizes power consumption
- Supports digital data transmission reducing paper-based processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D632R-MWMFB4 code reader is available for immediate purchase, ideal for industrial automation and barcode reading applications.
