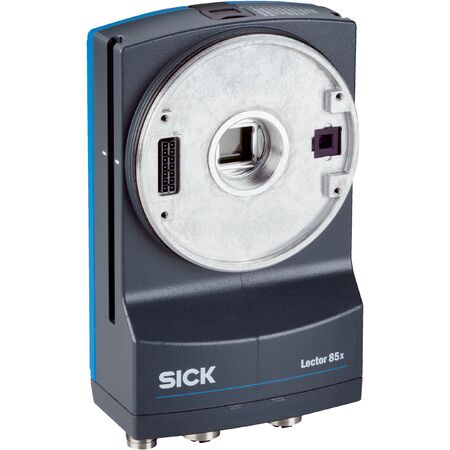

Industrial Barcode Scanner | 12 Megapixel CMOS Sensor | Adjustable Focus | IP65 Rated | by SICK
The Industrial Barcode Scanner features a high-resolution 12 Megapixel CMOS sensor with adjustable manual optical focus, making it perfect for indoor applications requiring precise code reading. With support for 1D, 2D, and stacked code types, this scanner is ideal for industrial automation and quality control, ensuring reliable performance in manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 4096 px x 3008 px (12 Megapixel)
- Optical focus: Adjustable (manual)
- Illumination: Ordered separately as accessories
- Feedback spot: Green LED (530 nm ± 15 nm), Red LED (660 nm ± 20 nm)
- Laser alignment aid: Red laser 630 nm to 680 nm, Class 1 laser
- Lens: C-mount, 1" optical format, focal lengths 12 mm, 16 mm, 25 mm (ordered separately)
- Scanning frequency: 15 Hz
- Code resolution: ≥ 0.1 mm
- Working range: 500 mm to 3000 mm
- Connection types: Multiple M12 connectors for power, CAN, serial, Ethernet, external illumination
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 24 W
- Current consumption: Max 2 A
- Housing material: Aluminum die cast, anthracite gray (RAL 7016)
- Window material: 2 mm thick scratch-proof glass
- Enclosure rating: IP65
- Electrical safety: EN 61010:2010 / EN 61010-1:2010/A1:2019/AC:2019-04
- MTBF: 100,000 hours
- Readable code structures: 1D, 2D, Stacked codes
- Supported code types: Code 128, GS1-128, EAN 8/13, UPC-A/E, Interleaved 2 of 5, Codabar, Code 93, Postal code, Data Matrix ECC200, GS1 Data-Matrix, MaxiCode, QR code, Aztec, PDF417
- Data transmission rates: Ethernet 10/100/1000 Mbit/s, EtherNet/IP 10/100 Mbit/s, CAN 500 kbit/s, Serial 1.2 kBaud to 115.2 kBaud, USB 2.0 at 480 Mbit/s
- Ambient operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Permissible relative humidity: ≤ 90%, non-condensing
- Altitude: < 5000 m
- Dimensions (H x L x W): 46mm x 143mm x 90mm
- Weight: 0.64 kg
Key Features
- Adjustable manual optical focus
- CMOS monochrome sensor with 12 Megapixel resolution (4096 x 3008 px)
- Supports 1D, 2D, and stacked code types including QR, Data Matrix, PDF417
- Multiple interfaces including Ethernet, EtherNet/IP™, CAN, Serial (RS-232, RS-422), USB 2.0, PROFINET
- Robust aluminum die cast housing with IP65 rating and scratch-proof glass window
- Laser alignment aid with Class 1 laser compliance
- High scanning frequency of 15 Hz
- Wide working range from 500 mm to 3000 mm
- Electromagnetic compatibility compliant with IEC 61000-6-2 and IEC 61000-6-4
- Operating temperature range 0 °C to +50 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Indoor area applications requiring high-resolution code reading
- Industrial automation and quality control
- Barcode and 2D code scanning in manufacturing environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3123 – Industrial Plugs and Socket-Outlets
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation with typical power consumption of 24 W
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK V2D8512R-1MCXXXAF0SXXXX sensor is available for immediate purchase, ideal for indoor industrial barcode and 2D code scanning applications.
