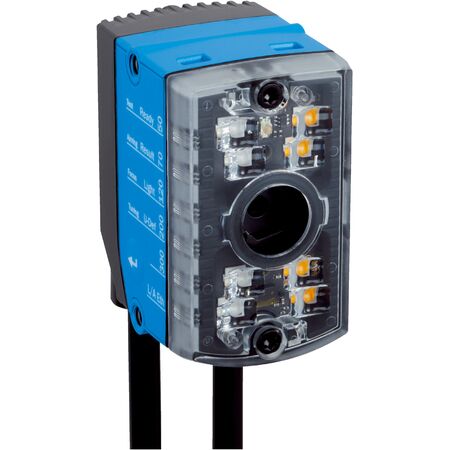

Industrial Barcode Scanner | 1,280 px x 960 px Resolution | IP54 Rated | Integrated LED Illumination | by SICK
The Industrial Barcode Scanner is designed for high-performance reading of 1D and 2D codes, featuring a 1,280 px x 960 px CMOS sensor and integrated amber and blue LED illumination. Ideal for industrial automation and logistics, this scanner operates within a working range of 50 mm to 300 mm and supports multiple interfaces including Ethernet and PROFINET, ensuring seamless integration into your systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1,280 px x 960 px (1.2 Mpixel)
- Illumination: Integrated amber (617 nm) and blue (470 nm) LEDs
- Scanning frequency: 40 Hz
- Code resolution: 0.05 mm
- Working range: 50 mm to 300 mm
- Supply voltage: 12 V DC to 24 V DC ±15%
- Power consumption: Typical 3.5 W
- Output current: ≤ 50 mA
- Enclosure rating: IP54 (EN 60529)
- Protection class: III
- Electrical safety: EN 62368-1
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, Serial RS-232, CAN, CANopen
- Digital inputs: 2 physical switching inputs
- Digital outputs: 3 physical switching outputs
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Dimensions (H x L x W): 30mm x 50mm x 40mm
- Weight: 0.165 kg
Key Features
- Adjustable manual optical focus with 6 mm focal length lens
- CMOS monochrome sensor with 1,280 px x 960 px resolution
- Integrated amber and blue LED illumination
- Supports reading of 1D, 2D, stacked, and direct-marked codes
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, Serial RS-232, CAN, and CANopen
- IP54 rated zinc diecast housing for protection against dust and water splashes
- Laser class 1 safety compliant with IEC and FDA standards
- Automated parameter switching and web server operator interface
- Supports up to 50 codes per reading interval and 500 characters for multiplexer function
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for barcode and 2D code reading
- Logistics and warehousing for package tracking
- Manufacturing for quality control and product identification
- Pharmaceutical and postal code scanning
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption at approximately 3.5 W reduces energy usage
- Durable zinc diecast housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D611D-MMSBE4 barcode scanner is available for immediate purchase, ideal for industrial automation and logistics applications.
