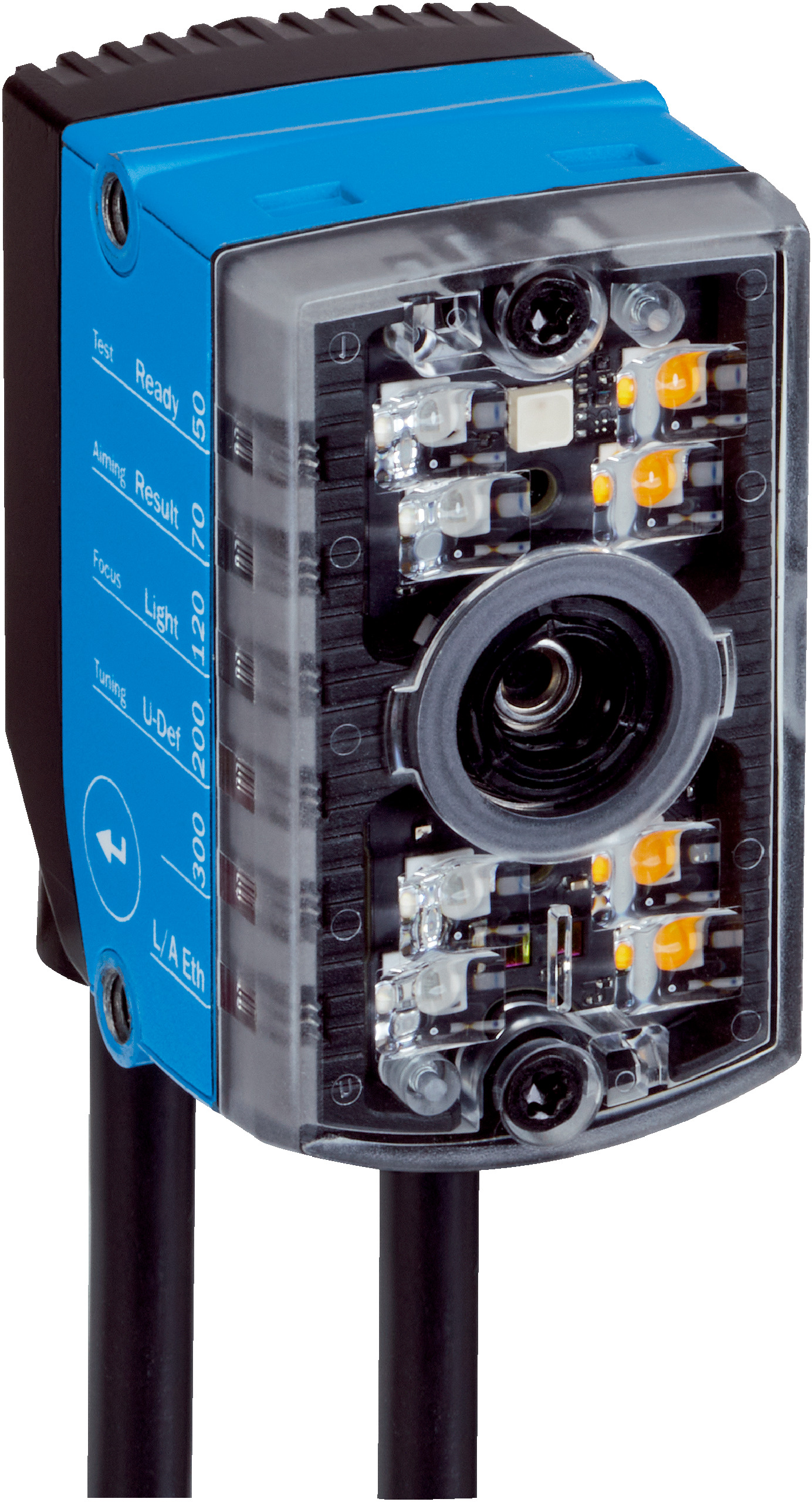

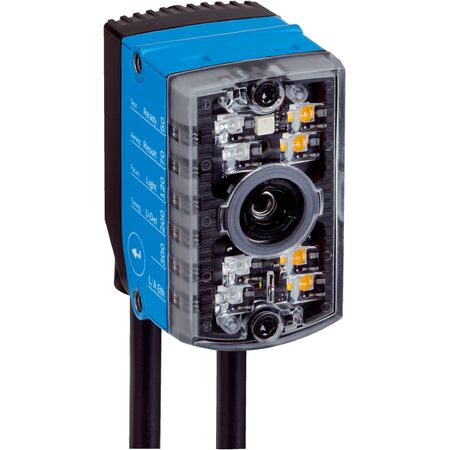

Industrial Barcode Scanner | 1,280 px Resolution | Teach Auto Focus & IP65 Rated | by SICK
The Industrial Barcode Scanner V2D611D-MLSBE5 features a high-resolution 1,280 px x 960 px CMOS sensor and teach auto focus for precise scanning. With integrated amber and blue LED illumination, it's perfect for industrial automation, logistics, and manufacturing process control. Built to withstand tough environments, this scanner is IP65 rated, ensuring durability and reliability in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1,280 px x 960 px (1.2 Mpixel)
- Optical focus: Teach auto focus (liquid lens)
- Illumination: Integrated amber (617 nm) and blue (470 nm) LEDs
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Scanning frequency: 40 Hz
- Code resolution: 0.05 mm
- Working range: 50 mm to 300 mm
- Connection types: M12 male connector (17-pin), M12 Ethernet socket (4-pin), circular plug-in connector
- Supply voltage: 12 V DC to 24 V DC ±15%
- Power consumption: Typical 3.5 W
- Output current: ≤ 50 mA
- Housing material: Zinc diecast
- Enclosure rating: IP65
- Protection class: III
- Electrical safety: EN 62368-1
- Readable code types: 1D, 2D, stacked, direct-marked codes
- Supported barcode types: GS1-128, UPC, EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Code 39, Code 128, Codabar, Code 32, Code 93, Plessey, MSI/Plessey, Telepen, postal codes
- Supported 2D codes: Data Matrix ECC200, GS1 Data-Matrix, PDF417, QR code, MaxiCode
- Data transmission rates: Ethernet 10/100 MBit/s, CAN 20 kbit/s to 1 Mbit/s, Serial 0.3 kBaud to 115.2 kBaud
- Digital inputs: 2
- Digital outputs: 3
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Dimensions (H x L x W): 30mm x 50mm x 40mm
- Weight: 0.165 kg
Key Features
- Complete device with teach auto focus (liquid lens)
- CMOS monochrome sensor with 1,280 px x 960 px resolution
- Integrated amber and blue LED illumination
- Laser class 1 compliant with IEC and FDA standards
- Reads 1D, 2D, stacked, and direct-marked codes
- Supports multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP™, Serial RS-232, CAN, and CANopen
- IP65 rated zinc diecast housing for robust industrial use
- Automated parameter switching for flexible operation
- Web server operator interface and SOPAS ET configuration software
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for barcode and 2D code reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and traceability systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D611D-MLSBE5 industrial barcode scanner is available for immediate purchase, ideal for industrial automation and logistics applications.
