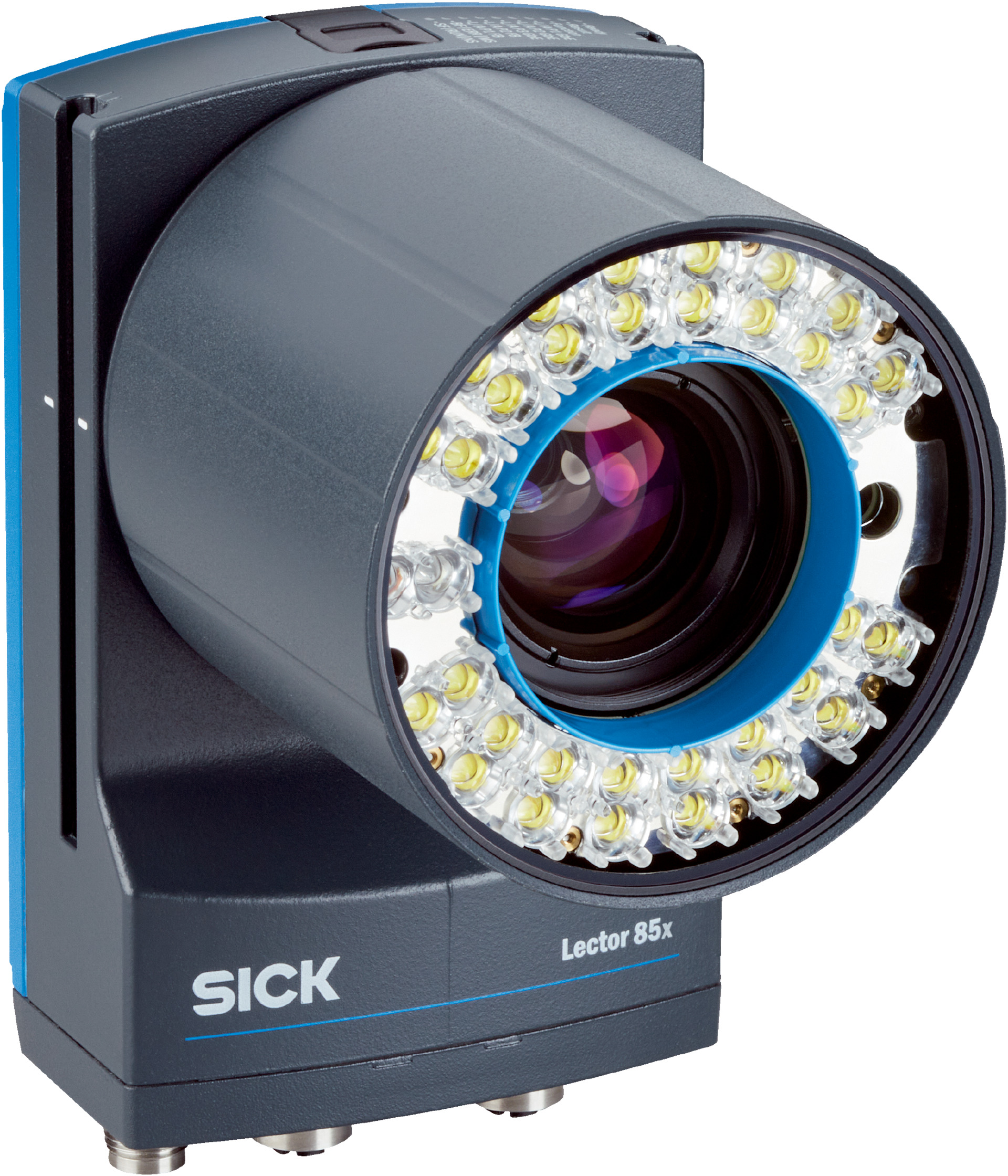

Industrial Barcode Scanner | 12MP CMOS Sensor | Adjustable Focus | IP65 Rated | by SICK
The Industrial Barcode Scanner features a 12MP CMOS monochrome sensor and adjustable manual optical focus, making it perfect for indoor barcode scanning in industrial automation and quality control. With integrated red LED illumination and robust aluminum housing, this scanner ensures reliable performance in various manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 4096 px x 3008 px (12 Megapixel)
- Illumination: Integrated red LED, 660 nm ± 20 nm, 32 LEDs
- Optical focus: Adjustable manual
- Lens: C-mount, 1 inch optical format, 16 mm focal length, aperture 1.8 to 16
- Scanning frequency: 15 Hz at 12 Megapixels
- Working range: 500 mm to 3000 mm
- Connection types: Multiple M12 connectors for power, CAN, serial, Ethernet, external illumination
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 24 W
- Enclosure rating: IP65
- Housing material: Aluminum die cast, anthracite gray
- Window material: 2 mm thick glass with scratch-proof coating
- Electrical safety: EN 61010 standards
- Interfaces: Ethernet (10/100/1000 Mbit/s), EtherNet/IP, PROFINET, CAN, Serial (RS-232, RS-422), USB 2.0
- Ambient operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- EMC: IEC 61000-6-2 and IEC 61000-6-4 compliant
- Vibration and shock resistance: EN 60068-2-6, EN 60068-2-64, EN 60068-2-27
- Weight: 640 g without lens and cables
- Dimensions (H x L x W): 46mm x 143mm x 90mm
- Weight: 0.64 kg
Key Features
- Adjustable manual optical focus
- 12 Megapixel CMOS monochrome sensor with 4096 x 3008 px resolution
- Integrated red LED illumination (660 nm) with 32 LEDs
- Risk group 1 low risk LED and laser class 1 safety
- C-mount lens with 16 mm focal length and aperture range 1.8 to 16
- Scanning frequency of 15 Hz at full resolution
- Reads 1D, 2D, and stacked barcodes including QR, Data Matrix, PDF417
- Multiple industrial interfaces: Ethernet, EtherNet/IP, PROFINET, CAN, Serial, USB
- Robust aluminum die cast housing with IP65 rating
- Wide ambient operating temperature 0°C to +50°C
- High electromagnetic compatibility and vibration/shock resistance
Professional Installation Requirements
- Professional installation by qualified personnel recommended due to complex electrical and network interfaces.
Applications
- Indoor area barcode scanning
- Industrial automation and quality control
- Reading 1D, 2D, and stacked codes in manufacturing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable aluminum housing extends product life reducing waste
- Low power consumption at typical 24 W
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now

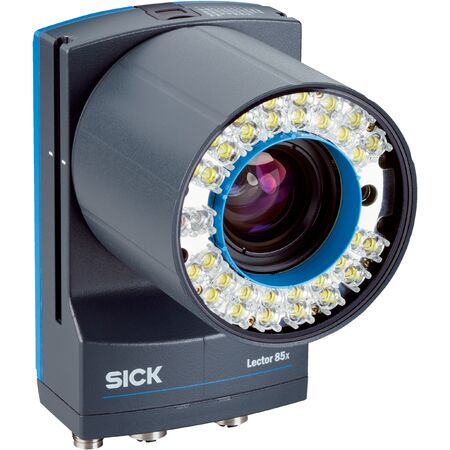

The SICK V2D8512R-1MCLDXAF2SXXXX barcode scanner is available for immediate purchase, ideal for indoor industrial barcode reading and automation applications.
