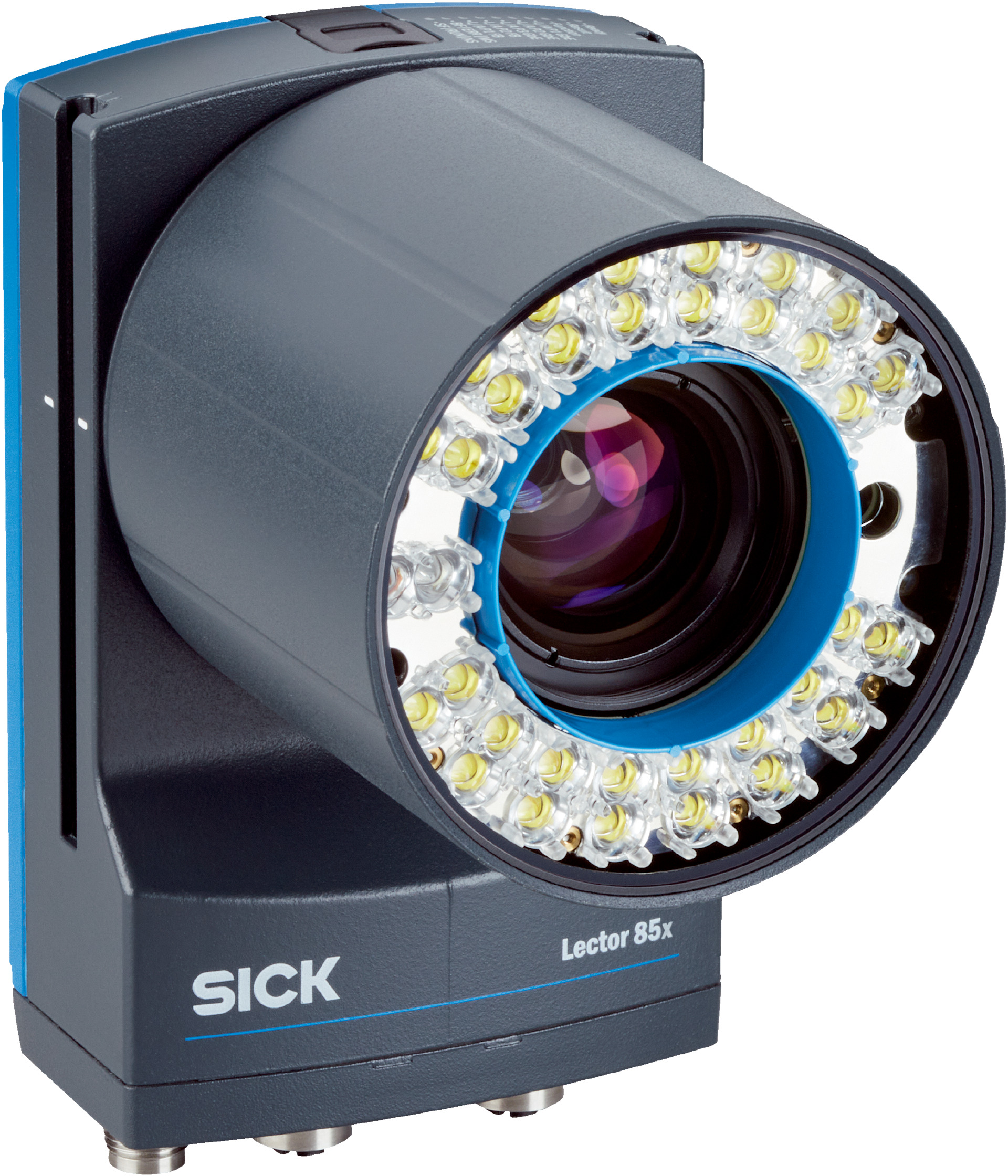

Industrial Barcode Scanner | 5 Megapixel CMOS Sensor | Adjustable Optical Focus | IP65 Rated | by SICK
The Industrial Barcode Scanner features a 5 Megapixel CMOS sensor with a resolution of 2464 x 2048 px, making it perfect for high-resolution code reading in indoor industrial applications. With adjustable optical focus and integrated white LED illumination, this scanner ensures reliable performance. Built for durability with an IP65 rating, it is ideal for environments requiring robust and efficient barcode scanning.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 2464 px x 2048 px (5 Megapixel)
- Optical focus: Adjustable manual
- Illumination: Integrated white LED, 32 LEDs, 31° aperture angle
- Lens: C-mount, 25 mm focal length, aperture 1.85 to 16
- Scanning frequency: 30 Hz at 5 megapixels
- Code resolution: ≥ 0.1 mm
- Working range: 500 mm to 3000 mm
- Connection types: 1x M12 17-pin male, 1x M12 5-pin male, 3x M12 8-pin female (Gigabit Ethernet)
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 24 W
- Current consumption: Max 2 A
- Housing material: Aluminum die cast, anthracite gray
- Window material: 2 mm thick scratch-proof glass
- Enclosure rating: IP65
- Electrical safety: EN 61010:2010 and related standards
- MTBF: 100,000 hours
- Readable codes: 1D, 2D, stacked codes including Code 128, GS1-128, EAN, UPC, Data Matrix ECC200, QR code, PDF417
- Interfaces: Ethernet (TCP/IP), CAN, Serial (RS-232, RS-422), USB 2.0
- Ambient operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Relative humidity: ≤ 90%, non-condensing
- Electromagnetic compatibility: IEC 61000-6-2, IEC 61000-6-4
- Vibration resistance: EN 60068-2-6, EN 60068-2-64
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 46mm x 143mm x 90mm
- Weight: 0.64 kg
Key Features
- Adjustable manual optical focus
- 5 Megapixel CMOS monochrome sensor with 2464 x 2048 px resolution
- Integrated white LED illumination with 32 LEDs
- Risk group 1 low risk LED and laser classes compliant with safety standards
- C-mount lens with 25 mm focal length and aperture range 1.85 to 16
- Scanning frequency of 30 Hz at 5 megapixels resolution
- Reads 1D, 2D, and stacked barcodes including Code 128, QR code, Data Matrix ECC200, PDF417
- Multiple interfaces: Ethernet (Gigabit), CAN, Serial (RS-232, RS-422), USB 2.0
- Robust aluminum die cast housing with IP65 rating and scratch-proof glass window
- Wide ambient operating temperature range 0°C to +50°C
- High electromagnetic compatibility and vibration/shock resistance
Professional Installation Requirements
- Professional installation by qualified personnel recommended to ensure proper electrical and network connections and compliance with safety standards.
Applications
- Indoor area industrial applications requiring high-resolution code reading
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient LED illumination minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK V2D8505R-1MCKEXAL2SXXXX sensor is available for immediate purchase, ideal for indoor industrial barcode reading applications.
