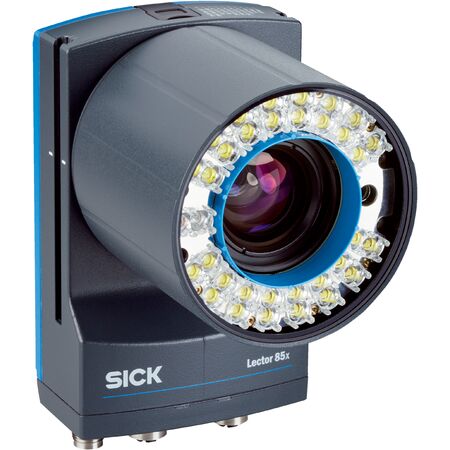

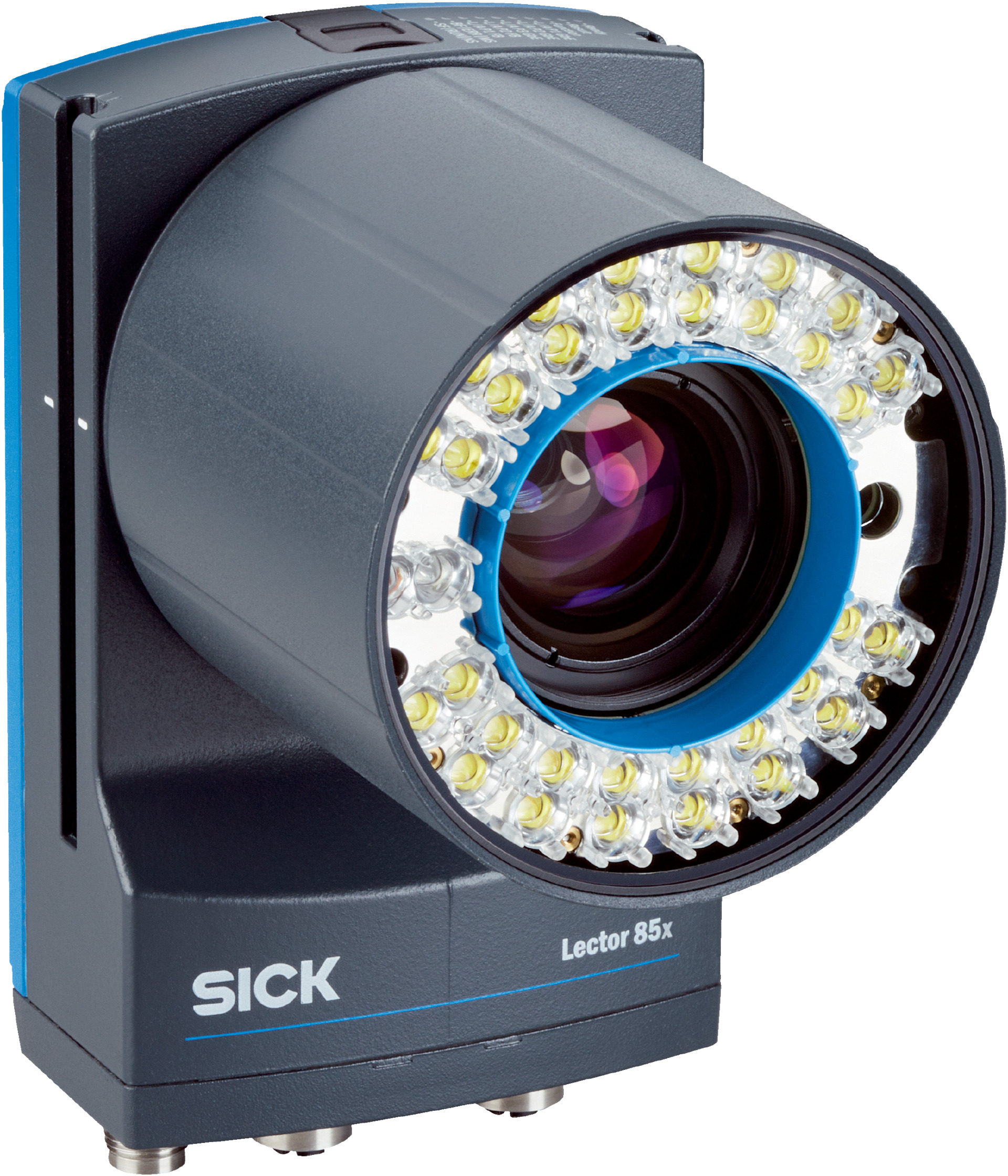

Industrial Barcode Scanner | 5MP CMOS Sensor | Adjustable Focus & Integrated LED | IP65 Rated | by SICK
The Industrial Barcode Scanner features a 5MP CMOS monochrome sensor with a resolution of 2464 x 2048 px, making it perfect for indoor barcode scanning and industrial automation. With adjustable optical focus and integrated white LED illumination, it ensures high performance in logistics and quality control applications. Its robust aluminum housing and IP65 rating provide durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 2464 x 2048 px (5 Megapixel)
- Optical focus: Adjustable manual
- Illumination: Integrated white LED, 32 LEDs, 31° aperture angle
- Laser alignment aid: Red laser 630-680 nm, Class 1 laser safety
- Lens: C-mount, 1/1.8" optical format, 25 mm focal length, aperture 1.8 to 11
- Scanning frequency: 30 Hz
- Code resolution: ≥ 0.1 mm
- Working range: 500 mm to 3000 mm
- Connection types: Multiple M12 connectors for power, CAN, serial, Ethernet, external illumination
- Supply voltage: 24 V DC ±20%
- Power consumption: Typical 24 W
- Housing: Aluminum die cast, anthracite gray, IP65 rated
- Window: 2 mm thick scratch-proof glass
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- EMC: IEC 61000-6-2 and IEC 61000-6-4 compliant
- Shock and vibration resistance: EN 60068-2 series
- MTBF: 100,000 hours
- Dimensions (H x L x W): 46mm x 143mm x 90mm
- Weight: 0.64 kg
Key Features
- Adjustable manual optical focus
- 5 Megapixel CMOS monochrome sensor with 2464 x 2048 px resolution
- Integrated white LED illumination with 32 LEDs
- Low risk LED and laser classes compliant with international safety standards
- Multiple industrial communication interfaces including Ethernet, PROFINET, CAN, USB, and Serial
- Robust aluminum die cast housing with IP65 rating and scratch-proof glass window
- High scanning frequency of 30 Hz with 0.1 mm code resolution
- Supports 1D, 2D, and stacked barcode types including QR, Data Matrix, PDF417
- Wide working range from 500 mm to 3000 mm
- Web server operator interface and SOPASair configuration software
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration with industrial systems and compliance with safety standards.
Applications
- Indoor area barcode scanning and code reading
- Industrial automation and quality control
- Logistics and warehouse management
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable construction minimizes waste and replacement frequency
Warranty Information
Warranty details available upon request from manufacturer or authorized distributor.
Available Now
The SICK V2D8505R-1MCKEXAF2SXXXX barcode scanner is available for immediate purchase, ideal for indoor industrial barcode scanning and automation applications.
