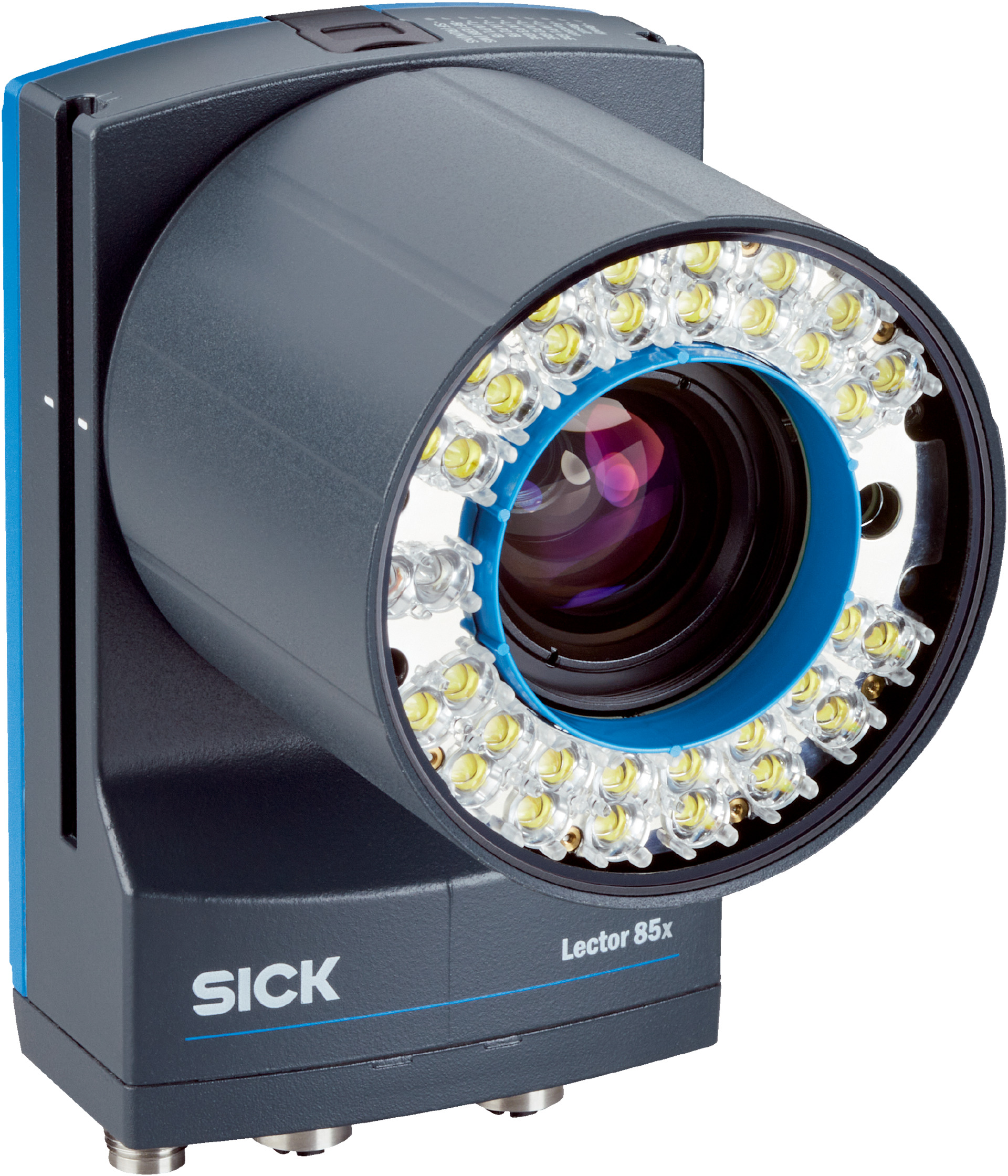

High-Resolution Industrial Barcode Scanner | 9MP CMOS Sensor | Adjustable Optical Focus | IP65 Rated | by SICK
The high-resolution industrial barcode scanner features a 9MP CMOS sensor and adjustable optical focus, making it ideal for indoor barcode scanning in manufacturing environments. With integrated white LED illumination and multiple industrial interfaces, this scanner ensures reliable performance and compliance with safety standards, perfect for quality control and automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 4096 x 2176 px (9 Megapixel)
- Illumination: Integrated white LED, 32 LEDs, 31° aperture angle
- Optical focus: Adjustable manual
- Lens: C-mount, 1" optical format, 25 mm focal length, aperture 1.8 to 22
- Scanning frequency: 20 Hz at 9 megapixels
- Code resolution: ≥ 0.1 mm
- Working range: 500 mm to 3000 mm
- Connection types: Multiple M12 connectors (17-pin, 5-pin, 4-pin D-coded, 8-pin X-coded)
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 24 W
- Current consumption: Max 2 A
- Housing: Aluminum die cast, anthracite gray (RAL 7016)
- Window: 2 mm thick glass with scratch-proof coating
- Enclosure rating: IP65
- Electrical safety: EN 61010:2010 and amendments
- Weight: 640 g without lens and cables
- MTBF: 100,000 hours
- Interfaces: Ethernet (TCP/IP), EtherNet/IP, PROFINET, CAN, Serial RS-232/422, USB 2.0
- Ambient operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- EMC: IEC 61000-6-2 and IEC 61000-6-4 compliant
- Shock and vibration resistance: EN 60068-2-27 and EN 60068-2-6
- Dimensions (H x L x W): 46mm x 143mm x 90mm
- Weight: 0.64 kg
Key Features
- Adjustable manual optical focus
- CMOS monochrome sensor with 9 Megapixel resolution (4096 x 2176 px)
- Integrated white LED illumination with 32 LEDs
- Aperture angle of 31° for illumination
- Low risk LED class 1 compliant with EC 62471-1 and EN 62471-1
- Visible green and red LED feedback spots
- Red laser alignment aid (630 nm to 680 nm), laser class 1 compliant
- C-mount lens with 1" optical format, 25 mm focal length, aperture 1.8 to 22
- Scanning frequency of 20 Hz at 9 megapixels resolution
- Code resolution ≥ 0.1 mm
- Working range from 500 mm to 3000 mm
- Multiple industrial interfaces including Ethernet, EtherNet/IP, PROFINET, CAN, Serial RS-232/422, USB 2.0
- Robust aluminum die-cast housing with IP65 rating
- Scratch-proof 2 mm thick glass window
- Operating temperature 0°C to +50°C, storage -20°C to +70°C
- EMC compliant with IEC 61000-6-2 and IEC 61000-6-4
- Shock and vibration resistant per EN 60068 standards
- Conformance Class B safety rating
Professional Installation Requirements
- Professional installation by qualified personnel recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Indoor area barcode scanning
- Industrial automation and quality control
- Reading 1D, 2D, and stacked codes in manufacturing environments
Standards & Compliance
- AS/NZS 61010 – Safety requirements for electrical equipment for measurement, control, and laboratory use
Environmental Benefits
- Durable aluminum housing and scratch-proof glass extend product lifespan reducing waste
- Energy-efficient LED illumination minimizes power consumption
- Compliant with RoHS regulations limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D8509R-1MCKEXAF2SXXXX barcode scanner is available for immediate purchase. Ideal for indoor industrial barcode reading applications requiring high resolution and multiple interface options.
