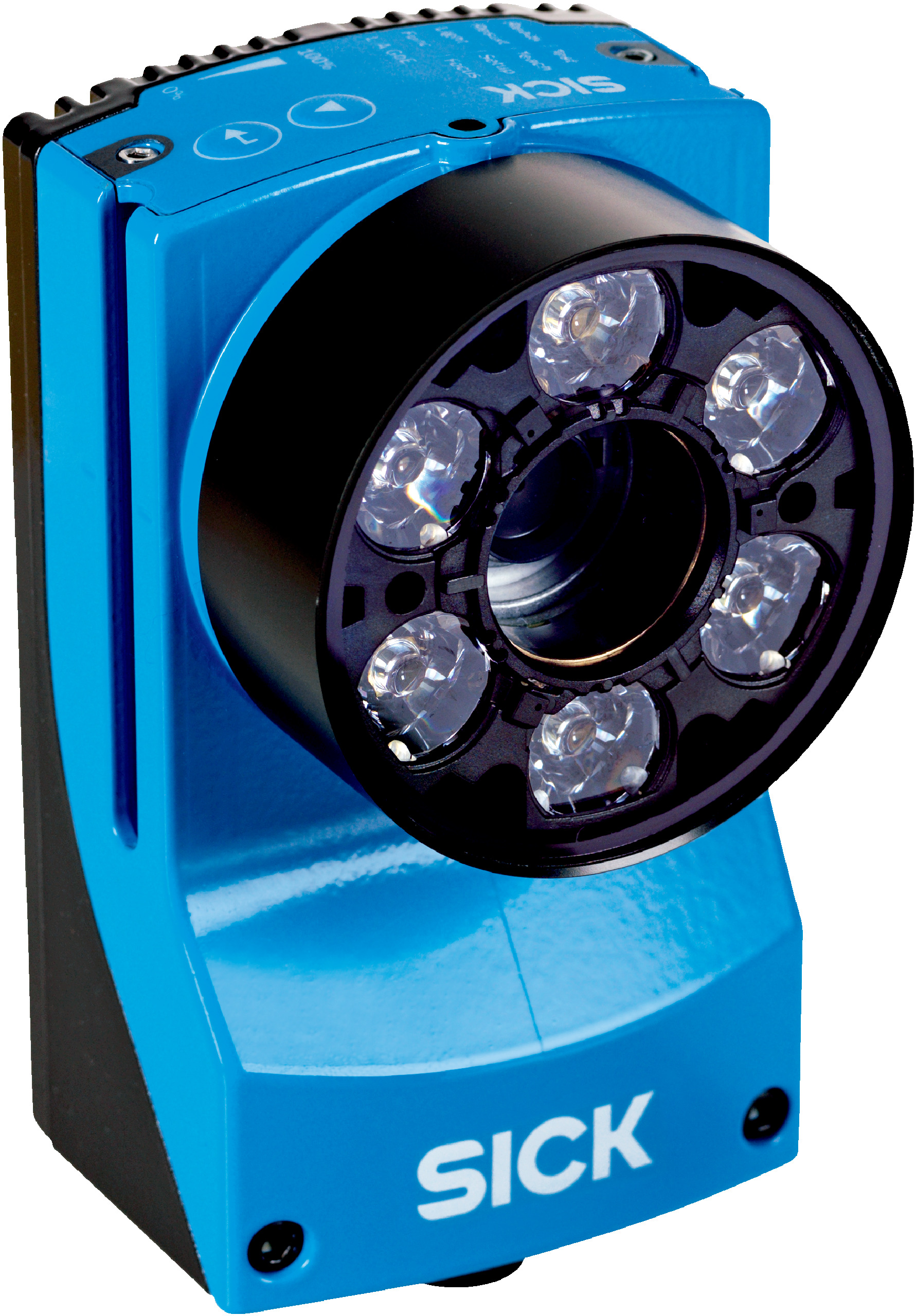

Industrial Barcode Scanner | CMOS 1.3 Megapixel | Adjustable Focus | IP67 Rated | by SICK
The Industrial Barcode Scanner features a CMOS monochrome sensor with 1.3 Megapixel resolution and adjustable manual optical focus, making it ideal for industrial automation and logistics applications. With integrated white LED illumination and robust IP67 housing, this scanner ensures reliable performance in demanding environments, perfect for quality control and product tracking.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 1280 px x 1024 px (1.3 Mpixel)
- Optical focus: Adjustable (manual)
- Illumination: Integrated white LED
- Feedback spot: Green and red visible LEDs
- Alignment aid: Red laser (630-680 nm), Laser Class 1
- Focal length: 17.5 mm, Aperture: 8, Optical format: 1/1.8"
- Scanning frequency: ≤ 50 Hz at 1.3 megapixels resolution
- Code resolution: ≥ 0.1 mm
- Working range: 50 mm to 2200 mm
- Connection types: M12 17-pin plug, M12 8-pin socket (Ethernet 1 Gbit/s), M8 4-pin socket (USB), M12 4-pin socket (illumination control)
- Supply voltage: 12 V DC to 24 V DC ± 20%
- Power consumption: Typical 10 W ± 20%
- Output current: ≤ 100 mA
- Housing material: Aluminum die cast, Window material: Plastic
- Enclosure rating: IP67
- Electrical safety: EN 60950-1
- Readable code types: 1D, 2D, stacked codes including GS1-128, QR code, Data Matrix ECC200, PDF417
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, Serial (RS-232, RS-422), CAN, PROFIBUS DP
- Digital inputs: 4, Digital outputs: 6, Configurable inputs and outputs
- Operator interface: Web server, Configuration software: SOPAS ET
- Memory card: Micro SD up to 32 GB
- Operating temperature: 0°C to +50°C, Storage temperature: -20°C to +70°C
- EMC: EN 61000-6-2, EN 61000-6-4
- Vibration resistance: EN 60068-2-6, Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 59mm x 108mm x 63mm
- Weight: 0.49 kg
Key Features
- Adjustable manual optical focus
- CMOS monochrome sensor with 1.3 Megapixel resolution (1280 x 1024 px)
- Integrated white LED illumination
- Visible green and red LED feedback spots
- Red laser alignment aid (Laser Class 1 compliant)
- Reads 1D, 2D, and stacked barcode types including GS1-128, QR code, Data Matrix ECC200, PDF417
- Multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP™, Serial (RS-232, RS-422), CAN, PROFIBUS DP
- Robust aluminum die cast housing with IP67 rating
- Operating temperature range 0°C to +50°C
- Supports image and data storage via microSD card and FTP
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Industrial automation and manufacturing
- Logistics and warehouse management
- Quality control and inspection
- Product tracking and identification
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable IP67 rated housing reduces need for frequent replacements
- Energy-efficient LED illumination minimizes power consumption
- Supports remote configuration and diagnostics reducing onsite visits
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

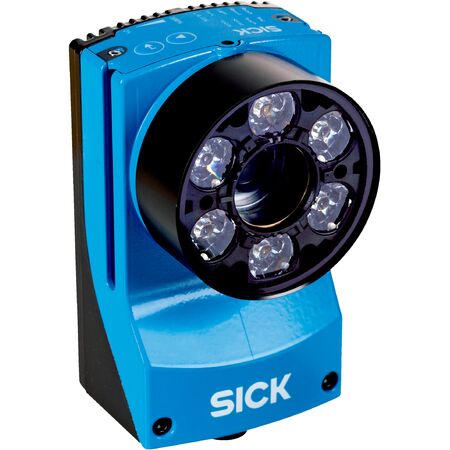

The SICK V2D631R-MKSEB8 barcode scanner is available for immediate purchase, ideal for industrial automation, logistics, and quality control applications.
