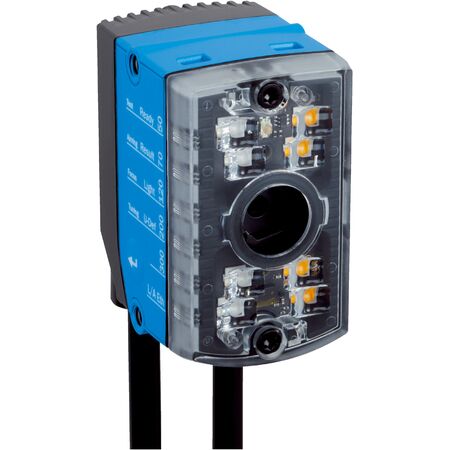

Industrial Barcode Scanner SICK V2D610D-MMSCE4 | CMOS Sensor | IP54 Rated | 40 Hz Scanning | by SICK
The Industrial Barcode Scanner SICK V2D610D-MMSCE4 features a high-resolution CMOS monochrome sensor and integrated amber and blue LED illumination, making it perfect for industrial automation and manufacturing applications. With an IP54 rating for dust and water resistance, this scanner ensures reliable performance in challenging environments, supporting multiple communication interfaces for seamless integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 640 px x 480 px (0.3 Mpixel)
- Illumination: Integrated amber (617 nm) and blue (470 nm) LEDs
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Scanning frequency: 40 Hz
- Code resolution: 0.04 mm
- Working range: 50 mm to 300 mm
- Connection types: M12 male connector (17-pin), M12 Ethernet socket (4-pin), circular plug-in connector
- Supply voltage: 12 V DC to 24 V DC ±15%
- Power consumption: Typical 3.5 W
- Output current: ≤ 50 mA
- Enclosure rating: IP54 (EN 60529)
- Protection class: III
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, Serial RS-232, CAN, CANopen
- Digital inputs: 2
- Digital outputs: 3
- Optical indicators: 9 LEDs
- Control elements: 1 pushbutton
- Configuration software: SOPAS ET
- Data storage: Image and data storage via external FTP
- Dimensions (H x L x W): 30mm x 50mm x 40mm
- Weight: 0.165 kg
Key Features
- Adjustable manual optical focus with 12 mm focal length lens
- CMOS monochrome sensor with 640 x 480 px resolution
- Integrated amber and blue LED illumination
- Class 1 laser safety compliant with IEC and FDA standards
- Reads 1D, 2D, stacked, and direct-marked codes
- Supports multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP™, CAN, CANopen, and RS-232
- IP54 rated zinc diecast housing for protection against dust and water splashes
- Automated parameter switching and multiplexer function for up to 50 codes per reading interval
- Web server operator interface and SOPAS ET configuration software
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial sensor systems and network protocols to ensure proper integration and safety compliance.
Applications
- Industrial automation and manufacturing for barcode reading
- Logistics and warehousing for code scanning and verification
- Quality control and traceability in production lines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption at approximately 3.5 W reduces energy usage
- Durable zinc diecast housing extends product lifespan, reducing waste
- Complies with RoHS regulations limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D610D-MMSCE4 barcode scanner is available for immediate purchase, ideal for industrial automation and manufacturing applications requiring reliable code reading.
