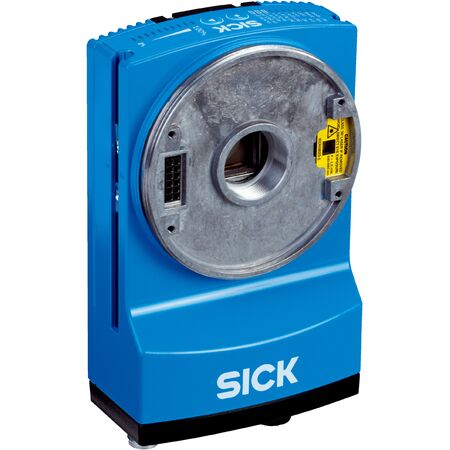

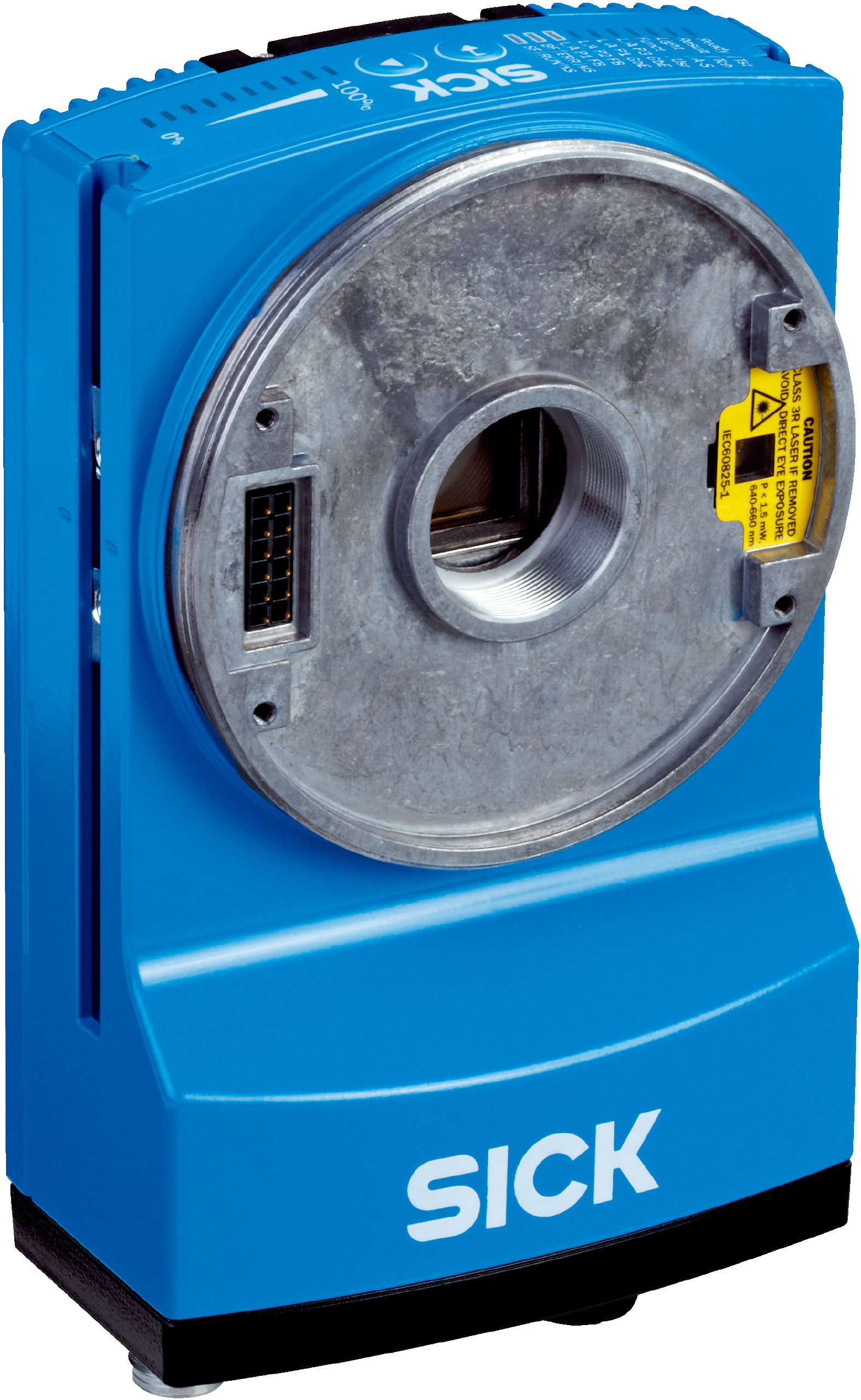

Industrial Barcode Scanner | CMOS Monochrome Sensor | 1600 x 1088 Resolution | IP65 Rated | by SICK
The Industrial Barcode Scanner with a CMOS monochrome sensor and 1600 x 1088 resolution is perfect for industrial automation and logistics applications. Designed for durability with an IP65 rating, it supports various barcode types including 1D, 2D, and stacked codes. With multiple interface options and a robust aluminum housing, this scanner ensures reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 1600 x 1088 px resolution
- Optical focus: Adjustable manual
- Illumination: Ordered separately as accessories
- Laser alignment aid: Red laser 630-680 nm, Class 1
- Lens: C-mount, 2/3" optical format
- Scanning frequency: 40 Hz at full resolution
- Code resolution: ≥ 0.1 mm
- Working range: 300 mm to 2200 mm
- Connection types: M12 17-pin plug, M12 8-pin sockets, M8 4-pin USB socket
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 20 W ± 20%
- Output current: ≤ 100 mA
- Housing: Aluminum die cast, light blue (RAL 5012)
- Window material: Plastic or glass (ordered separately)
- Enclosure rating: IP65
- Protection class: III
- Electrical safety: EN 60950-1
- MTBF: 100,000 hours
- Readable codes: 1D, 2D, stacked codes including GS1, QR, Data Matrix, PDF417
- Interfaces: Ethernet, PROFINET, EtherNet/IP, Serial (RS-232/422), CAN, PROFIBUS DP
- Digital inputs: 4; Digital outputs: 6
- Indicators: 21 LEDs, beeper
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Humidity: 90% non-condensing
- EMC: EN 61000-6-2, EN 61000-6-3
- Vibration and shock resistance: EN 60068-2-6
- Dimensions (H x L x W): 46mm x 142mm x 89mm
- Weight: 0.635 kg
Key Features
- Adjustable manual optical focus with CMOS monochrome sensor
- High sensor resolution of 1600 x 1088 pixels (1.7 Megapixels)
- Laser alignment aid with Class 1 laser safety compliance
- Supports 1D, 2D, and stacked barcode types including GS1, QR, Data Matrix, PDF417
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP, Serial, CAN, and PROFIBUS DP
- Robust aluminum die cast housing with IP65 rating for harsh environments
- Integrated optical indicators with 21 LEDs and acoustic beeper
- 512 MB internal image storage with optional microSD card support
- Operating temperature range 0°C to +50°C with high ambient light immunity
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and compliance with safety standards.
Applications
- Industrial automation and manufacturing for barcode reading
- Logistics and warehousing for package tracking
- Quality control and inspection systems
- Pharmaceutical and postal code scanning
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with typical power consumption of 20 W
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D642R-MCXXH6 barcode scanner is available for immediate purchase, ideal for industrial automation and logistics applications.
